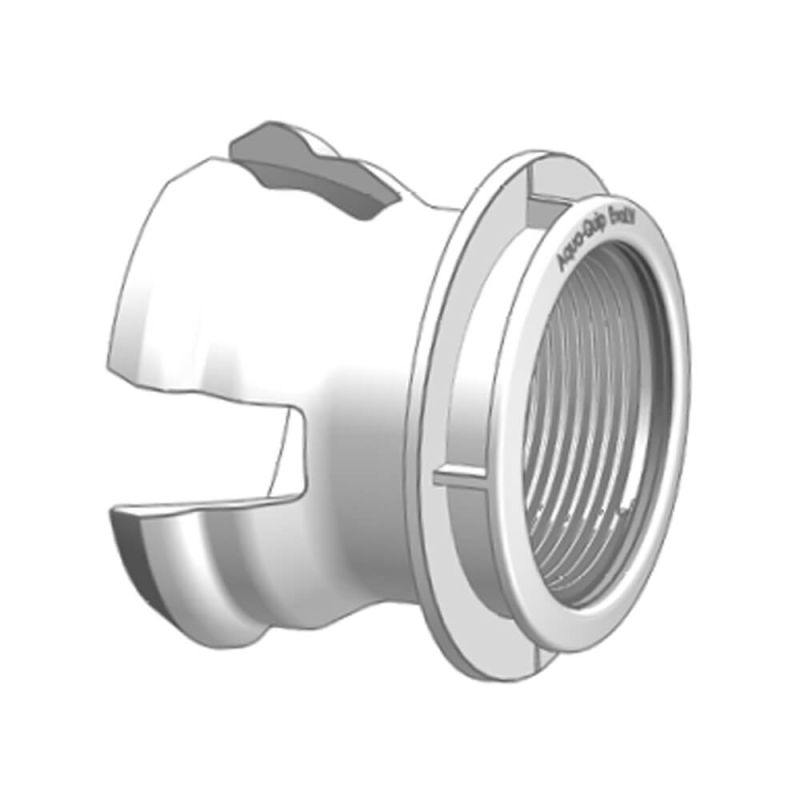

Aqua-Quip EvoLV Concrete Niche Mount Render Ring

The Aqua-Quip EvoLV Concrete Niche Mount Render Ring is an essential component for achieving a clean and professional finish when installing EvoLV pool lights. Designed for use with concrete niches, this durable render ring ensures precise alignment and enhances the overall appearance of your pool lighting.

Available in three stylish colors—White, Grey, and Black—it complements various pool designs and aesthetics. Built to withstand harsh pool environments, this render ring is easy to install and offers lasting performance. Perfect for both new pool constructions and renovations, it ensures a reliable and visually appealing installation for your EvoLV pool lights.

Features:

• Designed to ensure a seamless and precise installation of EvoLV pool lights in concrete niches.
• Provides a clean and professional finish to the light's mounting area.
• Available in three color options: White, Grey, and Black, to match various pool designs.
• Durable construction to withstand exposure to pool chemicals and environmental conditions.
• Easy to install as part of the concrete niche mounting process.
• Compatible with Aqua-Quip EvoLV pool light concrete niche systems.
• Manufactured in Australia to meet stringent quality standards.

See part 3 in the diagram below.

Notes:

1. The EvoLV Niches and EvoLV End Caps come with two options for the connection of 20mm rigid PVC conduit. As supplied, the 90 degree conduit inlet is open and the straight inlet is blanked off. When using the straight inlet, glue in the supplied blanking plug to close the 90 degree inlet and use a 10mm drill to open the straight inlet for your cable.
2. The Spanner (Item 10, for Cable Seal tightening) is not supplied as part of the kit, and must be ordered separately.
3. EvoLV Niches have an overall length of 245mm and allow 1100mm of cable to be wound up. The niches can be shortened by up to 40mm, with some reduction in the available cable capacity.
4. The length of the EvoLV Niche can be extended if required by inserting Ø65mm DWV pipe.
5. When using 50mm PVC pipe with EvoLV End Caps, the minimum straight pipe length should be 270mm to enable fitment of the light and 800mm of cable. The maximum straight pipe length is 310mm or less, otherwise the spanner will not reach the cable seal.
6. Cable Seal Kit (compression nut, washer, seal) is supplied fitted to the cable, and is not part of the EvoLV Niche or EvoLV End Cap.
