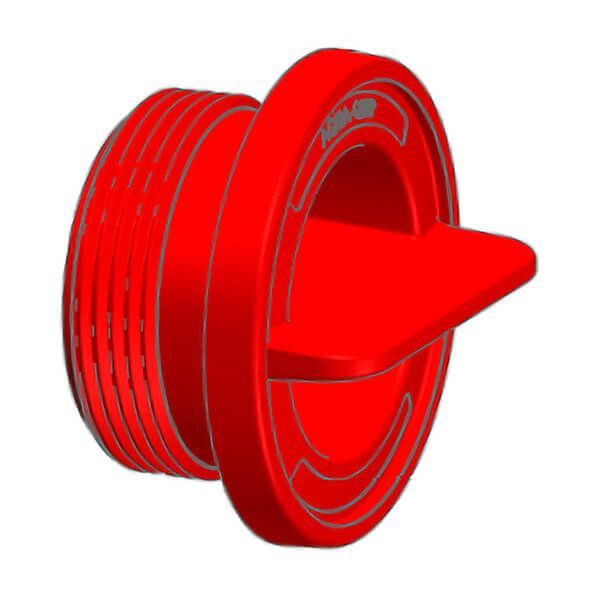

Aqua-Quip EPL412 EvoLV Plaster Cap for Concrete Niche Mount Render Ring

The Aqua-Quip EPL412 EvoLV Plaster Render Cap is an essential accessory designed to protect the EvoLV Concrete Niche Mount Render Ring during the pool plastering process. It ensures that the render ring remains free of debris and damage, providing a clean, professional finish for your pool light installation.

This cap fits securely over the render ring, offering hassle-free protection throughout the construction or renovation process. It is easy to install and remove, making it an ideal solution for safeguarding your installation work while ensuring long-lasting results.

Features:

• Designed specifically for use with EvoLV Concrete Niche Mount Render Ring.
• Protects the render ring during plastering to ensure no damage or debris.
• Easy to install and remove for convenience.
• Ensures a clean and professional finish for pool light installations.
• Durable and reliable protection for pool construction or renovation.

See part 4 in the diagram below.

Notes:

1. The EvoLV Niches and EvoLV End Caps come with two options for the connection of 20mm rigid PVC conduit. As supplied, the 90 degree conduit inlet is open and the straight inlet is blanked off. When using the straight inlet, glue in the supplied blanking plug to close the 90 degree inlet and use a 10mm drill to open the straight inlet for your cable.
2. The Spanner (Item 10, for Cable Seal tightening) is not supplied as part of the kit, and must be ordered separately.
3. EvoLV Niches have an overall length of 245mm and allow 1100mm of cable to be wound up. The niches can be shortened by up to 40mm, with some reduction in the available cable capacity.
4. The length of the EvoLV Niche can be extended if required by inserting Ø65mm DWV pipe.
5. When using 50mm PVC pipe with EvoLV End Caps, the minimum straight pipe length should be 270mm to enable fitment of the light and 800mm of cable. The maximum straight pipe length is 310mm or less, otherwise the spanner will not reach the cable seal.
6. Cable Seal Kit (compression nut, washer, seal) is supplied fitted to the cable, and is not part of the EvoLV Niche or EvoLV End Cap.
