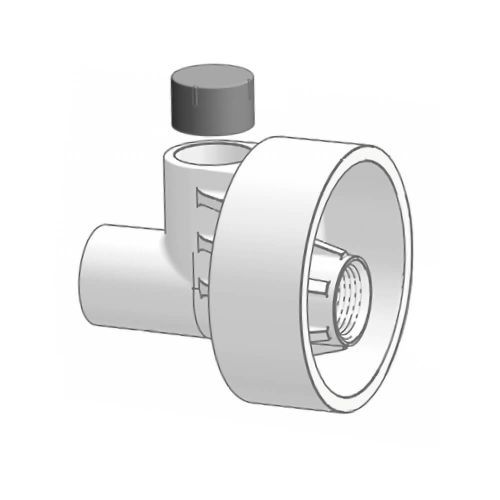

Aqua-Quip EPL431 EvoLV End Cap for 50mm Pipe

The Aqua-Quip EPL431 EvoLV End Cap is crafted to fit 50mm PVC pipes seamlessly, providing a watertight seal for EvoLV Series pool lights. Engineered for durability and ease of use, this end cap ensures that your pool light installation remains secure and leak-free. Whether you're installing lights in new pool builds or retrofitting existing setups, the EPL431 offers a reliable solution to complete your system efficiently.

Features:

• Secure Fit: Designed specifically for 50mm PVC pipes, ensuring a snug and leak-proof seal.
• Durable Construction: Made from high-quality materials to withstand harsh pool environments.
• Versatile Application: Ideal for use in both new installations and retrofit projects.
• Easy Installation: Simple and straightforward to fit onto compatible pipes.
• Compatible Design: Perfectly suits Aqua-Quip EvoLV Series pool lighting systems.

See part 8 in the diagram below.

Notes:

1. The EvoLV Niches and EvoLV End Caps come with two options for the connection of 20mm rigid PVC conduit. As supplied, the 90 degree conduit inlet is open and the straight inlet is blanked off. When using the straight inlet, glue in the supplied blanking plug to close the 90 degree inlet and use a 10mm drill to open the straight inlet for your cable.
2. The Spanner (Item 10, for Cable Seal tightening) is not supplied as part of the kit, and must be ordered separately.
3. EvoLV Niches have an overall length of 245mm and allow 1100mm of cable to be wound up. The niches can be shortened by up to 40mm, with some reduction in the available cable capacity.
4. The length of the EvoLV Niche can be extended if required by inserting Ø65mm DWV pipe.
5. When using 50mm PVC pipe with EvoLV End Caps, the minimum straight pipe length should be 270mm to enable fitment of the light and 800mm of cable. The maximum straight pipe length is 310mm or less, otherwise the spanner will not reach the cable seal.
6. Cable Seal Kit (compression nut, washer, seal) is supplied fitted to the cable, and is not part of the EvoLV Niche or EvoLV End Cap.
