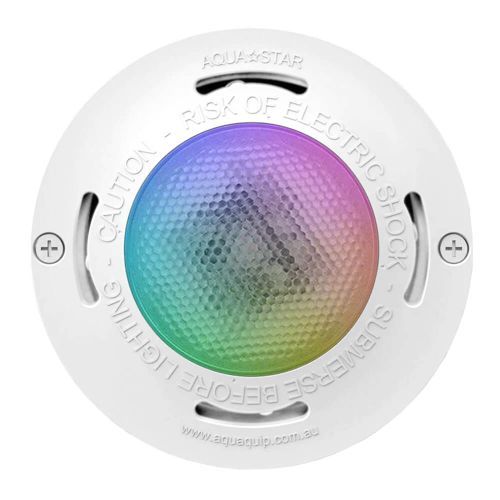

The Aqua-Quip Evo2 Series Multi RGB InstaTouch Program Concrete Niche Mount Pool Light sets the standard for pool lighting with its innovative technology and sleek design. Known as the “flushest” pool light available, the Evo2 protrudes just 6mm from the pool wall, creating a modern, streamlined appearance ideal for concrete pools, spas, water features, and more.
The Evo2 Multi RGB model is powered by Aqua-Quip’s unique InstaTouch system, offering effortless control over dynamic lighting modes. Its Colour Selection Palette provides a virtually unlimited spectrum of vibrant colours, along with pre-programmed scroll and flash effects, allowing you to create stunning visual displays.
Designed for durability and reliability, the Evo2 features advanced LED technology, thermal management, and fault protection systems. Its extra-low-voltage operation ensures safety, while its energy-efficient design reduces power consumption. A detachable cable system and Quick Connect Plug Kit simplify installation, making it a top choice for new pool constructions.
For an added touch of elegance, the Evo2 can be upgraded with an optional mirror-polished stainless steel trim ring, sold separately.
Benefits:
- Minimalist Design: Sits flush against the pool wall, protruding only 6mm, for a sleek and modern aesthetic.
- Dynamic Lighting Effects: Offers limitless colour possibilities and InstaTouch pre-programmed modes for vibrant displays.
- Versatile Use: Perfect for concrete pools, spas, water features, fountains, ponds, and catch tanks.
- Energy Efficiency: Advanced LED technology ensures bright illumination with minimal energy consumption.
- Safety Guaranteed: Operates on extra-low voltage (12V AC) and complies with Australian safety standards.
- Easy Installation: Detachable cable system and Quick Connect Plug Kit streamline the installation process.
- Enhanced Durability: Built with cutting-edge thermal management and fault protection systems for long-lasting performance.
- Sophisticated Style: Optional stainless steel trim ring adds a polished, high-end look.
Features:
- InstaTouch Program Control: Exclusive to the Multi RGB model, featuring customizable colour options and pre-set lighting effects.
- High Light Output: Provides up to 550 lumens (White) for bright, even illumination.
- Thermal and Voltage Protection: Equipped with safety features to ensure consistent operation.
- Flush-Mount Design: Protrudes just 6mm from the pool wall for a seamless and unobtrusive appearance.
- IPX8 Waterproof Rating: Designed for reliable underwater operation up to 2m depth.
- Australian Made: Built to meet Australian standards for quality and safety.
- Optional Accessories: Compatible with an optional mirror-polished stainless steel trim ring (sold separately).
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Technical Specifications:
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Dimming |
Available when used with Aqua-Quip InstaTouch Smart Lighting Controller |
| Installation Types |
New Concrete Pools, Spas, Water Features, Catch Tanks |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Warranty |
12 Month Manufacturers Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:
- 1 x Evo2 Multi RGB InstaTouch Program LED Light Only*
- Stainless Steel Trim Ring Kit - (optional)
(*) Fascia Ring is available in White (standard), Grey or Black.
Dimensions:
