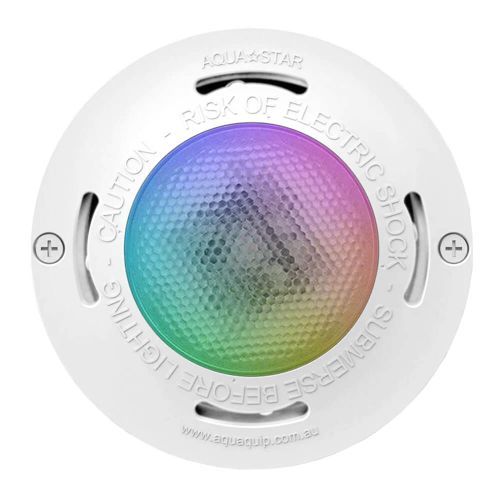

The Aqua-Quip Evo2 Series PRO RGB+W InstaTouch Program Concrete Niche Mount Pool Light sets the standard for pool lighting with its innovative technology and sleek design. Known as the “flushest” pool light available, the Evo2 protrudes just 6mm from the pool wall, creating a modern, streamlined appearance ideal for concrete pools, spas, water features, and more.
The Evo2 PRO RGB+W model is powered by Aqua-Quip’s unique InstaTouch system, offering effortless control over dynamic lighting modes. Its Colour Selection Palette provides a virtually unlimited spectrum of vibrant colours, along with pre-programmed scroll and flash effects, allowing you to create stunning visual displays.
Designed for durability and reliability, the Evo2 features advanced LED technology, thermal management, and fault protection systems. Its extra-low-voltage operation ensures safety, while its energy-efficient design reduces power consumption. A detachable cable system and Quick Connect Plug Kit simplify installation, making it a top choice for new pool constructions.
For an added touch of elegance, the Evo2 can be upgraded with an optional mirror-polished stainless steel trim ring, sold separately.
Benefits:
- Minimalist Design: Sits flush against the pool wall, protruding only 6mm, for a sleek and modern aesthetic.
- Dynamic Lighting Effects: Offers limitless colour possibilities and InstaTouch pre-programmed modes for vibrant displays.
- Versatile Use: Perfect for concrete pools, spas, water features, fountains, ponds, and catch tanks.
- Energy Efficiency: Advanced LED technology ensures bright illumination with minimal energy consumption.
- Safety Guaranteed: Operates on extra-low voltage (12V AC) and complies with Australian safety standards.
- Easy Installation: Detachable cable system and Quick Connect Plug Kit streamline the installation process.
- Enhanced Durability: Built with cutting-edge thermal management and fault protection systems for long-lasting performance.
- Sophisticated Style: Optional stainless steel trim ring adds a polished, high-end look.
Features:
- InstaTouch Program Control: Exclusive to the PRO RGB+W model, featuring customizable colour options and pre-set lighting effects.
- High Light Output: Provides up to 550 lumens (White) for bright, even illumination.
- Thermal and Voltage Protection: Equipped with safety features to ensure consistent operation.
- Flush-Mount Design: Protrudes just 6mm from the pool wall for a seamless and unobtrusive appearance.
- IPX8 Waterproof Rating: Designed for reliable underwater operation up to 2m depth.
- Australian Made: Built to meet Australian standards for quality and safety.
- Optional Accessories: Compatible with an optional mirror-polished stainless steel trim ring (sold separately).
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Technical Specifications:
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Dimming |
Available when used with Aqua-Quip InstaTouch Smart Lighting Controller |
| Installation Types |
New Concrete Pools, Spas, Water Features, Catch Tanks |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:
- 1 x Evo2 PRO RGB+W InstaTouch Program LED Light Only*
- Stainless Steel Trim Ring Kit - (optional)
(*) Fascia Ring is available in White (standard), Grey or Black.
Dimensions:
Frequently Asked Questions
Are Aqua-Quip Evo2 pool lights compliant with Australian standards?
Yes. Aqua-Quip Evo2 pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be carried out in accordance with local regulations and the manufacturer’s instructions.
Do Evo2 pool lights need to be installed by an electrician?
Yes. Evo2 lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules) and local regulations.
Do Evo2 pool lights require a transformer?
Yes. Evo2 lights operate on 12V AC and require a suitable isolation transformer installed in accordance with AS/NZS 3000. If required, you can find suitable options here:
pool light transformers.
Can Evo2 pool lights be operated from a wall switch?
Yes. Evo2 pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour PRO RGB+W models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller, which supports colour selection, brightness adjustment, and lighting zone control.
Are Evo2 pool lights compatible with pool controllers and automation systems?
Yes. Evo2 multi-colour lights are manufactured and programmed to operate with a range of third-party controllers, but the light’s internal program must match the colour-changing protocol used by your controller for correct operation and synchronisation. If you are using an automation system, it is common for the lights to be supplied programmed to suit that controller. Refer to the technical specifications or
contact us for confirmation before purchase.
What pools are Evo2 lights suitable for?
Evo2 is a niche-mounted light intended for concrete pool installations, and is also commonly used in spas and water features where a niche mount is required. Select the correct kit for your application (light only, or bundles including mounting kit, cable, and transformer).
What colour options are available in the Evo2 range?
The Evo2 range is available in fixed-colour options (white, blue, and green) as well as a Multi-Colour PRO RGB+W option. Multi-colour models provide an extended colour palette and lighting effects, depending on the selected program and controller compatibility.
Does the Evo2 use a detachable cable or plug connection?
Yes. Evo2 lights feature a detachable cable system with a Quick Connect Plug Kit, allowing easier installation and servicing when required.
