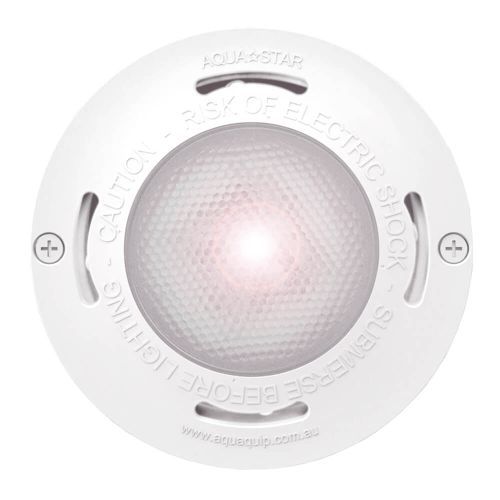

The Evo2 LED pool light combines cutting-edge technology with a sleek, user-friendly design to deliver a spectacular and ultra-reliable lighting solution for concrete pools, spas, water features, and more. Known as the “flushest” pool light on the market, the Evo2 sits unobtrusively against the pool wall, protruding just 6mm, offering a seamless and modern look.
Available in fixed colours (White, Blue, Warm White or Green) or Multi-Colour Pro RGB+W, the Evo2 provides extensive customization options. The Multi-Colour version features Aqua-Quip’s unique Colour Selection Palette, offering a virtually limitless range of colour possibilities and an array of pre-programmed scroll and flash modes for dynamic visual effects.
Ideal for all types of water features, fountains, beach areas, ponds, and catch tanks, the Evo2 combines style and function. The light elegance can be further enhanced with an optional mirror-polished stainless steel trim ring (sold separately), creating a striking visual impact.
Engineered with the latest LED technology and an advanced thermal management system, the Evo2 ensures consistent performance, maximum light output, and energy efficiency. Its extra-low-voltage operation guarantees safety while minimizing energy consumption.
Benefits:
- Sleek and Modern Aesthetic: The Evo2 LED Pool Light sits flush against the pool wall, protruding only 6mm, providing a streamlined and unobtrusive appearance that enhances any pool design.
- Versatile Application: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.
- Customizable Lighting Options: Available in fixed colours or Multi-Colour Pro RGB+W with Aqua-Quip’s Colour Selection Palette, offering limitless colours and pre-programmed mode for dynamic visual effects.
- Energy-Efficient Performance: Advanced LED technology ensures maximum brightness while minimizing power consumption, making it an environmentally friendly choice.
- Reliable and Durable: Engineered with cutting-edge thermal management and fault protection systems, guaranteeing consistent performance and long-lasting operation.
- Safety First: Operates on extra-low voltage (12V AC) and meets Australian safety standards for peace of mind.
- Enhanced Elegance: The optional mirror-polished stainless steel trim ring elevates the visual appeal for a sophisticated finish.
Features:
- Flush-Mount Design: Protrudes just 6mm from the pool wall for a seamless look.
- Warm White Illumination: Emits a comforting 3000K light temperature for a relaxing pool environment.
- Thermal and Voltage Protection: Includes a thermal cutout and voltage transient clamping for added safety and reliability.
- Energy Efficiency: Utilizes state-of-the-art LED technology to deliver powerful lighting at reduced energy consumption.
- Durable Construction: IPX8 rated for reliable underwater operation up to 2m depth.
- Optional Stainless Steel Trim: Adds a polished and premium finish to the light. Sold separately.
- Australian Made: Designed and manufactured to meet stringent Australian standards and regulations.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Technical Specifications:
| Installation Types |
New Concrete Pools, Spas, Water Features, Catch Tanks |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Warranty |
12 Month Manufacturers Warranty |
In The Box:
- 1 x Evo2 Warm White Colour LED Light*
- Stainless Steel Trim Ring Kit - (optional)
(*) Fascia Ring is available in White (standard), Grey or Black.
Dimensions:
