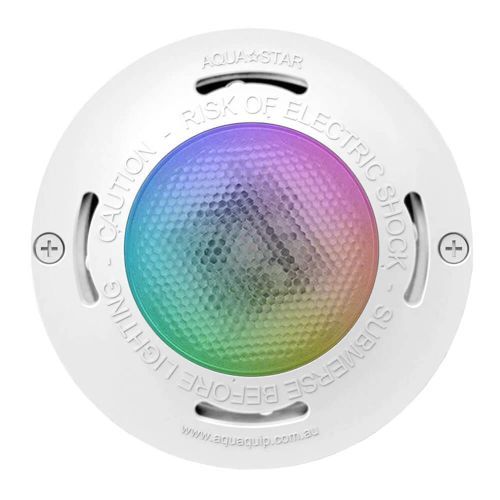

Aqua-Quip Evo2 Series LED Retro-Fit Pool Light for Poolstore Concrete
The Aqua-Quip Evo2 Series LED Retro-Fit Pool Light combines cutting-edge technology with a sleek, user-friendly design, providing a spectacular and ultra-reliable lighting solution for retrofitting Poolstore concrete pool lights. Renowned as the "flushest" pool light on the market, the Evo2 sits seamlessly against the pool wall, protruding only 6mm for a modern, unobtrusive appearance.
Designed specifically for retro-fit installations, the Evo2 retains compatibility with existing pool wiring and controllers (provided they meet specifications), ensuring a straightforward upgrade. Available in four LED color options—Blue, White, PRO RGB+W, and Multi RGB—and three fascia ring colors (White, Grey, and Black), the Evo2 offers extensive customization to suit your pool's style.
Each retro-fit light is factory-sealed and includes a Quick Connect Plug Kit, along with a detachable cable system, for hassle-free installation and dependable long-term performance.
To elevate the design, the Evo2 can be accessorized with an optional mirror-polished stainless steel trim ring, sold separately.
Benefits:
- Easy Retro-Fit Installation: Designed to replace Poolstore concrete pool lights without the need for additional rewiring or new controllers*
- Sleek and Modern Aesthetic: The Evo2 Retro-Fit Light sits flush against the pool wall, creating a streamlined look that complements contemporary pool designs.
- Energy-Efficient Performance: Advanced LED technology ensures bright, vibrant lighting while reducing power consumption.
- Versatile Applications: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks.
- Reliable and Durable: Equipped with cutting-edge thermal management and fault protection systems, guaranteeing consistent performance.
- Enhanced Elegance: Optional mirror-polished stainless steel trim ring (sold separately) adds a sophisticated touch.
(*) Ensure your existing transformer has a 12Vac output and at least 25VA power rating.
Features:
- Flush-Mount Design: Protrudes just 6mm from the pool wall for a sleek and seamless look.
- Colour Selection Palette: Exclusive to the Multi-Colour PRO RGB+W option, providing an expansive range of colour possibilities and pre-set lighting effects.
- High Light Output: Up to 550 lumens (White) for brilliant and even illumination.
- Durable Construction: IPX8-rated for reliable underwater operation up to 2m depth.
- Thermal and Voltage Protection: Advanced safety features ensure longevity and dependable performance.
- Easy Connectivity: Includes a Quick Connect Plug Kit and detachable cable system for straightforward retro-fit installation.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Note: MultiColour Lights Dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Multi RGB |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Retro-Fit |
Poolstore Concrete |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.
In The Box:
- 1 x Evo2 PRO RGB+W LED Light* (Retro-Fit for Poolstore Concrete)
- 1 x Plug Kit
- 1 x Mounting Hardware (where applicable)
- Stainless Steel Trim Ring Kit - (optional)
(*) Fascia Ring is available in White (standard), Grey or Black.
