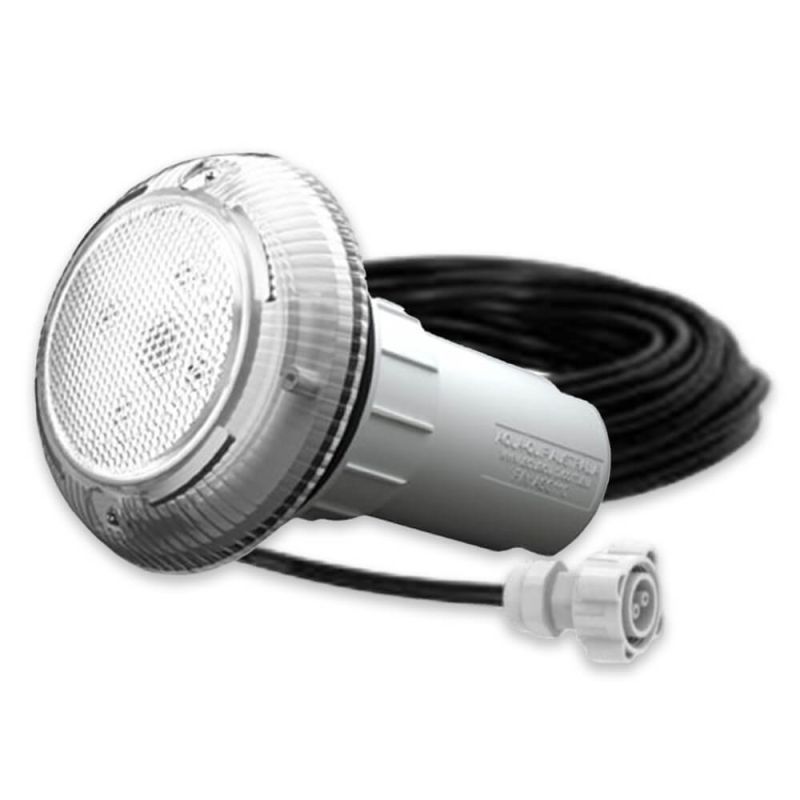

Aqua-Quip EvoCR Series 1 x Wnite LED Colour Niche Pool Light w/ Concrete Mounting Kit, 30M Cable and Plug Kit
In stock
Order now while supplies last!
Satisfaction Guarantee
All products covered
Same Day Dispatch
On orders placed by 12pm AEDT
Price Match
Quick, simple & easy
Secure Shipping with Tracking
Guaranteed to arrive safely
Flat rate shipping
Per order Australia-wide
Free, Easy Returns
Hassle-free and convenient
Customer Service & Support
Dedicated call center
EvoCR LED Pool Light for Renovators of Concrete Pools – Ideal for Core Drilling into Existing Concrete Pools
The Aqua-Quip EvoCR Series White LED Niche Pool Light is an elegant solution for renovators of concrete pools, delivering brilliant white illumination with efficiency and dependability. Designed with a 20mm socket for rigid PVC conduit connections, the light housing fits perfectly into a 60mm diameter core-drilled hole.
The press-fit adaptor plate provides angular and depth adjustments, ensuring a flawless finish after pool resurfacing. With a factory-sealed light and Quick Connect Plug Kit, installation is simple and waterproof. Powered by a safe 12V AC supply, this energy-efficient light is built for longevity and low-maintenance operation, making it an ideal choice for existing concrete pools.
Features:
- Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
- Energy-Efficient Design: Low power consumption paired with a long lifespan.
- User-Friendly Installation: Simplified setup with factory-fitted Quick Connect Plug Kit.
- Bright White Illumination: Produces clear, vibrant white light to enhance your pool's appearance.
- Core-Drill Installation: Designed for a 60mm diameter core-drilled hole with a 170mm niche length, perfect for retrofitting concrete pools.
- Press-Fit Adaptor Plate: Ensures precise angular and depth adjustments for a seamless finish.
- Durable Build: Factory-sealed, robust design with advanced thermal management for reliability and longevity.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
| Multi-Colour | Blue | White | Warm White | |
|---|---|---|---|---|
| Power Consumption | 20 VA Max | 11 VA | 11 VA | 11 VA |
| Light Colour | Program Dependant | 475 nm | >5000K | 3000K |
| Light Output (typical) | Up to 380 lm | 180 lm | 550 lm | 550 lm |
Note: Dimming is available only on Multi-Colour with Aqua-Quip InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours | Multi Colour |
|---|---|
| Blue | |
| White | |
| Nominal Supply Voltage | 12V AC 50/60 Hz |
| Voltage Tolerance | +20%,-20% |
| Protection Rating | IPX8 up to 2.0m depth |
| Temperature Range | 0°C ~ +40°C pool water temperature |
| Power Consumption (Fixed Colour LEDs) | White, blue and green = 8 VA |
| Power Consumption (Multi-Colour LEDs) | Spectrum III Multi Colour = 16 VA maximum |
| Cable Gauge | 0.5mm², 2 core |
| Detachable Cable | Yes, Plug Kit is factory fitted to supply cable |
| Fault Protection | Thermal cutout. Voltage transient clamping |
| Compliance | Made in Australia to all relevant Australian standards and regulations |
| Warranty | 12 Month Manufacturer’s Warranty |
In The Box:
- EvoCR White Colour LED Light
- Niche & Concrete Mounting Kit
- 30M Cable with Plug Kit
Frequently Asked Questions
Are Aqua-Quip EvoCR pool lights compliant with Australian standards?
Do EvoCR pool lights need to be installed by an electrician?
Do EvoCR pool lights require a transformer?
What pools are EvoCR lights suitable for?
Can EvoCR pool lights be operated from a wall switch?
Are EvoCR lights compatible with pool controllers and automation systems?
What colour options are available in the EvoCR range?
Does the EvoCR use a plug connection?
What is the adaptor plate used for?
| SKU | ASR022 |
|---|---|
| Barcode | ASR 022 |
| Warranty | 1 Year |
| Brand | Aqua-Quip |
| Model | EvoCR Series ASR 022 (White Colour LED Light + Ø60mm Niche + Concrete Mounting Kit + 30M Cable with Plug Kit) |
| Product Type | Pool Light |
| Shipping Type | Standard |
| Series | EvoCR |
| LED Colour | White |
| Application Type | Concrete Pools |
| Mounting Type | Niche Mount |
| Included Component | Light + Mounting Kit + Cable |
| Dimensions LxWxH (mm) | 170x118x118 |
