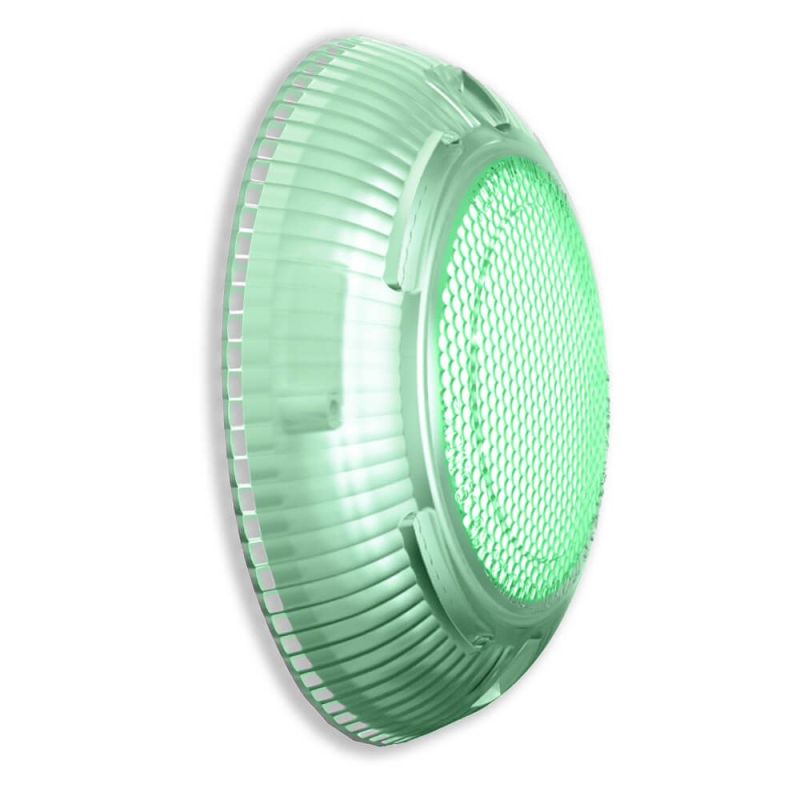

Aqua-Quip EvoFG Series 1 x Green LED Colour Fibreglass and Above Ground Vinyl Niche Mount Pool Light

Enhance your pool's ambiance with vibrant green illumination, designed for fibreglass and above-ground vinyl pools.
Aqua-Quip
SKU:

ASG203
  $285.00
Pool Light Retro Series Replacement Guide – compare and find the best Retro-Fit LED pool light for your pool.
Remote Control – adjust the lights with the touch of a button.
Transformer – ensure safe and functional operation.
Contact Us
Available In-Store Only
Share

Satisfaction Guarantee

All products covered

Same Day Dispatch

On orders placed by 12pm AEDT

Price Match

Quick, simple & easy

Free, Easy Returns

Hassle-free and convenient

EvoFG LED Pool Light for Fibreglass and Above Ground Vinyl Pools

The Aqua-Quip EvoFG Green LED Light Only is designed to bring vibrant green illumination to your fibreglass or above-ground vinyl pool. Perfect for creating a unique and eye-catching pool atmosphere.

The low-profile light protrudes just 29mm from the pool wall, delivering an unobtrusive yet powerful lighting solution. With durable materials and high energy efficiency, this light is built to last and enhance your pool’s ambiance.

Features:

  • Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
  • Vivid Green Illumination: Provides rich, vibrant green lighting to transform your pool's ambiance.
  • Compact and Low-Profile Design: Light diameter is 118mm, with a wall protrusion of just 29mm.
  • Durable Construction: IPX8-rated for pressure watertight operation up to 2m depth.
  • Australian Made: Designed and manufactured to meet stringent Australian standards.

LED Colour Guide:

Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.

Multi-Colour Blue White Warm White
Power Consumption 20 VA Max 11 VA 11 VA 11 VA
Light Colour Program Dependant 475 nm >5000K 3000K
Light Output (typical) Up to 380 lm 180 lm 550 lm 550 lm

Note: Dimming is available only on Multi-Colour with Aqua-Quip InstaTouch Smart Lighting Controller.

Technical Specifications:

Installation TypesNew Fibreglass and Above-Ground Vinyl Pools
Nominal Supply Voltage12V AC 50/60 Hz
Voltage Tolerance+20%,-20%
Protection RatingIPX8 up to 2.0m depth
Temperature Range0°C ~ +40°C pool water temperature
Power Consumption
(Fixed Colour LEDs)		White, blue and green = 8 VA
Power Consumption
(Multi-Colour LEDs)		Spectrum III Multi Colour = 16 VA maximum
Fault ProtectionPower-cycle “run dry” thermal cut-out. Voltage transient clamping.
Shell MaterialsABS – I/M Acrylic
ComplianceMade in Australia to all relevant Australian standards and regulations
Warranty12 Month Manufacturer’s Warranty

In The Box:

  • 1 x EvoFG Green Colour LED Light Only

See part 4 in the diagram below.

Frequently Asked Questions

Are Aqua-Quip EvoFG pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoFG pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoFG pool lights need to be installed by an electrician?
Yes. EvoFG lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules), local regulations, and the manufacturer’s instructions.
Do EvoFG pool lights require a transformer?
Yes. EvoFG lights operate on 12V AC and require a suitable isolation transformer installed in accordance with local regulations and the manufacturer’s instructions. If required, you can find suitable options here: pool light transformers.
What pool types are EvoFG lights suitable for?
EvoFG lights are intended for fibreglass and above-ground vinyl pools that use a niche-mounted installation.
Can EvoFG pool lights be operated from a wall switch?
Yes. EvoFG pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the Aqua-Quip InstaTouch Smart Lighting Controller, which supports colour selection, brightness adjustment, and lighting zone control.
Are EvoFG lights compatible with pool controllers and automation systems?
Yes. EvoFG multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. Refer to the technical specifications or contact us for confirmation before purchase.
What colour options are available in the EvoFG range?
The EvoFG range is available in fixed-colour options (white, blue, and green) as well as multi-colour options (RGB and RGB+W). Multi-colour models provide an extended colour palette and lighting effects, depending on the selected program and controller compatibility.
Does the EvoFG use a plug connection?
Yes. EvoFG lights use a factory-fitted waterproof Quick Connect Plug Kit, which allows the supply cable to be disconnected for simpler installation and easier servicing when required.
Does the EvoFG include a factory-fitted cable in the niche?
Yes. EvoFG lights include a short length of cable factory-fitted into the niche to assist installation, with longer cable supplied depending on the kit selected.
SKU ASG203
Barcode ASG 203
Package Length 14 cm
Package Width 14 cm
Package Height 6 cm
Warranty 1 Year
Brand Aqua-Quip
Model ASG 203 EvoFG LED Light Only – Green
Product Type Pool Light
Shipping Type Standard
Series EvoFG
LED Colour Green
Application Type Fibreglass / Vinyl
Mounting Type Niche Mount
Included Component Light Only
Aqua-Quip Pool Light Controllers Setup Aqua-Quip Pool Light Controllers Setup (142.03 kB)
Aqua-Quip EvoFG Series Pool Lights - Brochure Aqua-Quip EvoFG Series Pool Lights - Brochure (177.30 kB)
Aqua-Quip EvoFG Series Pool Lights - Manual Aqua-Quip EvoFG Series Pool Lights - Manual (616.26 kB)
Aqua-Quip Evo Series Quick-Connect Plug Kit - Manual Aqua-Quip Evo Series Quick-Connect Plug Kit - Manual (1.31 MB)
Aqua-Quip Pool Lightning Guide Aqua-Quip Pool Lightning Guide (502.38 kB)
