EvoFG LED Pool Light for Fibreglass and Above Ground Vinyl Pools
The Aqua-Quip EvoFG Series LED Multi-Colour Niche Pool Light is a premium lighting solution for fibreglass and above-ground vinyl pools. Designed for simplicity and performance, this light fits through a 60mm hole and includes a reduced niche length with an integrated 90° conduit connection and cable seal. Its compact, low-profile design features an all-clear lens to ensure exceptional light diffusion, minimizing hot spots.
The EvoFG light includes 1.2 metres of cable factory-fitted into the niche, enabling installation below safety ledges to achieve maximum illumination without shadowing. With its energy-efficient design, vibrant multi-colour illumination, and compatibility with the Insta-Touch Smart Lighting Controller, this light provides both style and functionality.
Features:
- Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
- Energy-Efficient Design: Low power consumption paired with a long lifespan.
- Multi-Colour Illumination: Aqua-Quip’s Colour Selection Palette offers infinite lighting options and programming modes.
- Flush-Mounted Design: Sleek and compact, perfect for fibreglass and vinyl pools.
- Reduced Niche Length: Integrated 90° conduit connection with an accessible cable seal for streamlined installation.
- Factory-Fitted Cable: Includes 1.2m of cable pre-installed in the niche for convenient placement below ledges.
- Quick Connect Plug Kit: Waterproof and easy to install.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
| Multi-Colour | Blue | White | Warm White | |
|---|---|---|---|---|
| Power Consumption | 20 VA Max | 11 VA | 11 VA | 11 VA |
| Light Colour | Program Dependant | 475 nm | >5000K | 3000K |
| Light Output (typical) | Up to 380 lm | 180 lm | 550 lm | 550 lm |
Note: Dimming is available only on Multi-Colour with Aqua-Quip InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours | Multi Colour |
|---|---|
| Blue | |
| White | |
| Controller Compatibility | Wall Switch or Power Point |
| Aqua-Quip InstaTouch | |
| Astral Connect 10 / Connect Lite / HALO* | |
| Zodiac Jandy AquaLink* | |
| Hayward OmniLogic* | |
| Pentair IntelliTouch, EasyTouch, IntelliCenter* | |
| INSNRG | |
| Aquatek (by Dontek Electronics) | |
| Theralux Active Pool+Manager | |
| Aquamate X | |
| Sunlover Oasis Smart Control System | |
| SplashMe Automation Controller | |
| Home Automation Systems (C-Bus etc)* | |
| Dimming | Available when used with Aqua-Quip InstaTouch Smart Lighting Controller |
| Installation Types | New Fibreglass and Above-Ground Vinyl Pools |
| Nominal Supply Voltage | 12V AC 50/60 Hz |
| Voltage Tolerance | +20%,-20% |
| Protection Rating | IPX8 up to 2.0m depth |
| Temperature Range | 0°C ~ +40°C pool water temperature |
| Power Consumption (Fixed Colour LEDs) | White, blue and green = 8 VA |
| Power Consumption (Multi-Colour LEDs) | Spectrum III Multi Colour = 16 VA maximum |
| Cable Gauge | 0.5mm², 2 core |
| Detachable Cable | Yes, Plug Kit is factory fitted to supply cable |
| Fault Protection | Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
| Shell Materials | ABS – I/M Acrylic |
| Compliance | Made in Australia to all relevant Australian standards and regulations |
| Warranty | 12 Month Manufacturer’s Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.

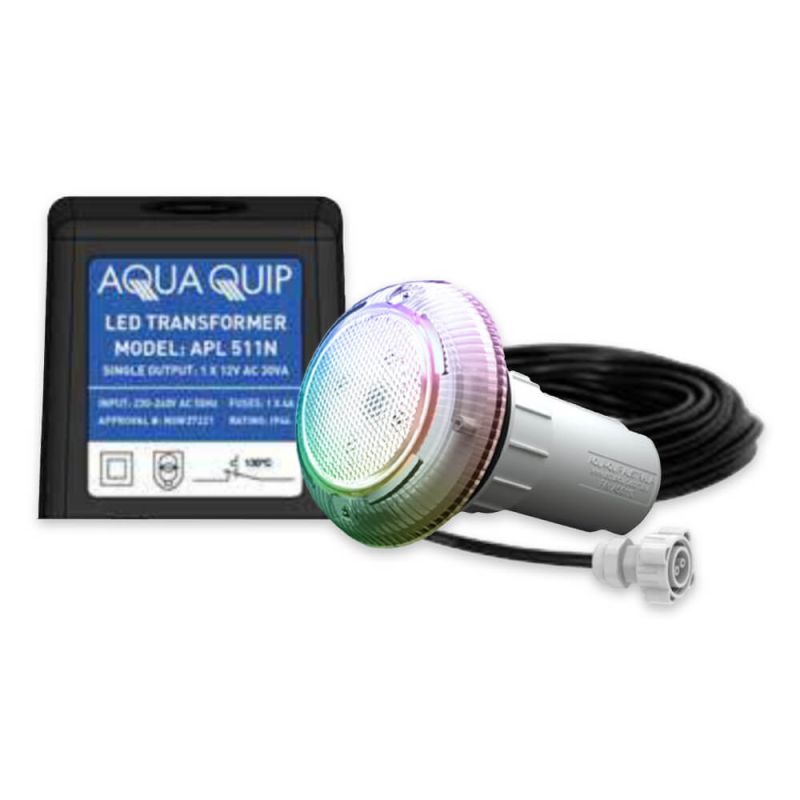

In The Box:
- 1 x EvoFG Multi-Colour Pro Series RGB+W LED Light
- 1 x Fibreglass Mounting Kit
- 1 x 30M Cable with Plug Kit
- 1 x Single Output (1x 12 Volt, 30VA) Plug-In Transformer
Frequently Asked Questions
Are Aqua-Quip EvoFG pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoFG pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoFG pool lights need to be installed by an electrician?
Yes. EvoFG lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules), local regulations, and the manufacturer’s instructions.
Do EvoFG pool lights require a transformer?
Yes. EvoFG lights operate on 12V AC and require a suitable isolation transformer installed in accordance with local regulations and the manufacturer’s instructions. If required, you can find suitable options here: pool light transformers.
What pool types are EvoFG lights suitable for?
EvoFG lights are intended for fibreglass and above-ground vinyl pools that use a niche-mounted installation.
Can EvoFG pool lights be operated from a wall switch?
Yes. EvoFG pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the Aqua-Quip InstaTouch Smart Lighting Controller, which supports colour selection, brightness adjustment, and lighting zone control.
Are EvoFG lights compatible with pool controllers and automation systems?
Yes. EvoFG multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. Refer to the technical specifications or contact us for confirmation before purchase.
What colour options are available in the EvoFG range?
The EvoFG range is available in fixed-colour options (white, blue, and green) as well as multi-colour options (RGB and RGB+W). Multi-colour models provide an extended colour palette and lighting effects, depending on the selected program and controller compatibility.
Does the EvoFG use a plug connection?
Yes. EvoFG lights use a factory-fitted waterproof Quick Connect Plug Kit, which allows the supply cable to be disconnected for simpler installation and easier servicing when required.
Does the EvoFG include a factory-fitted cable in the niche?
Yes. EvoFG lights include a short length of cable factory-fitted into the niche to assist installation, with longer cable supplied depending on the kit selected.
