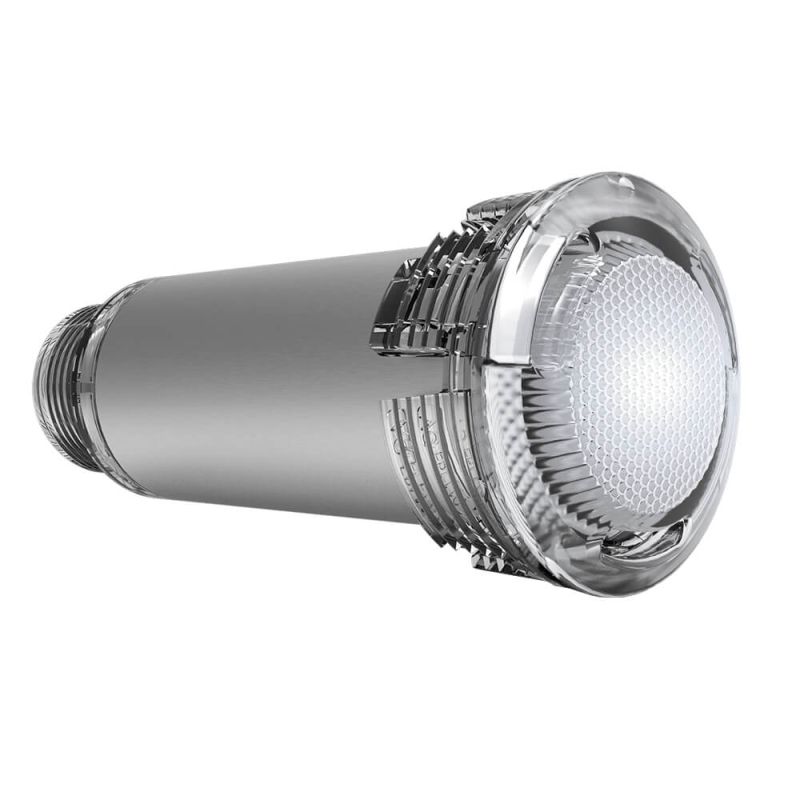

The Aqua-Quip EvoLV Series Cool White LED Compact Pipe/Niche Mount Pool Light delivers crisp, bright illumination with advanced LED technology, making it ideal for both pipe and niche mounting. Suitable for new concrete pools, spas, water features, and renovations, this versatile light enhances visibility and ambiance in any setting.
Its compact design allows for seamless integration into intricate areas such as steps, benches, and shallow water zones, while its high-efficiency performance ensures consistent lighting for larger areas. Built for energy efficiency and durability, this Australian-made light is engineered to perform reliably in underwater environments.
Perfect for enhancing the ambiance of your pool or water feature, the Aqua-Quip EvoLV Cool White LED light is a premium choice for creating a captivating nighttime poolscape.
Features:
- Cool White Illumination: Provides crisp, bright lighting for enhanced visibility and ambiance.
- Compact Design: 49mm diameter for versatile positioning in intricate or larger areas.
- Energy Efficient: Low power consumption with advanced thermal protection.
- Durable Construction: IPX8-rated for reliable underwater operation up to 2m depth.
- Thermal and Voltage Protection: Advanced safety features ensure longevity and dependable performance.
- Versatile Applications: Ideal for renovations and new concrete pools, spas, water features, and catch tanks.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
|
Multi-Colour RGB+W |
Blue |
White |
Warm White |
|
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
| Power Consumption |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
| Light Colour |
Program Dependant |
470 nm |
6500 k |
2850 k |
| Light Output (typical) |
Up to 245 lm |
Up to 470 lm |
75 lm |
135 lm |
340 lm |
650 lm |
340 lm |
650 lm |
Note: Multi-Colour Lights are dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Installation Types |
Renovations & New Concrete Pools, Spas, Water Features, Catch Tanks |
| Operating Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Mid-Power) |
6 VA |
Power Consumption
(Hi-Power) |
12 VA |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Dimensions |
Diameter: 49mm; Protrusion: 6mm |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
In The Box:
- 1 x EvoLV Cool White LED Light Only*
(*) See part 6 in the diagram below.
Frequently Asked Questions
Are Aqua-Quip EvoLV pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoLV pool lights are made in Australia to all relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoLV pool lights need to be installed by an electrician?
Yes. EvoLV pool lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules) and local regulations.
Do EvoLV pool lights require a transformer?
Yes. EvoLV pool lights operate on 12V AC and require a suitable isolation transformer installed in accordance with AS/NZS 3000. If you need one, see
pool light transformers.
Can EvoLV pool lights be operated from a wall switch?
Yes. EvoLV pool lights can be operated from a standard wall switch or compatible controller. Operation varies by model, with single-colour lights providing on/off control and multi-colour models allowing colour selection and effects via switch operation or compatible controllers. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller, which allows colour selection, brightness adjustment, and lighting zone control.
Are EvoLV pool lights compatible with pool controllers?
Yes. Aqua-Quip EvoLV multi-colour pool lights are compatible with a range of lighting controllers and pool automation systems. Multi-colour models are available in different controller programs, so it is important to select the EvoLV model programmed to match your controller for correct colour operation and synchronisation. Refer to the technical specifications or
contact us for confirmation before purchase.
What mounting options are available?
EvoLV lights are available in niche-mount and pipe-mount options, depending on the model selected. Select the correct mounting type to suit your installation and application.
