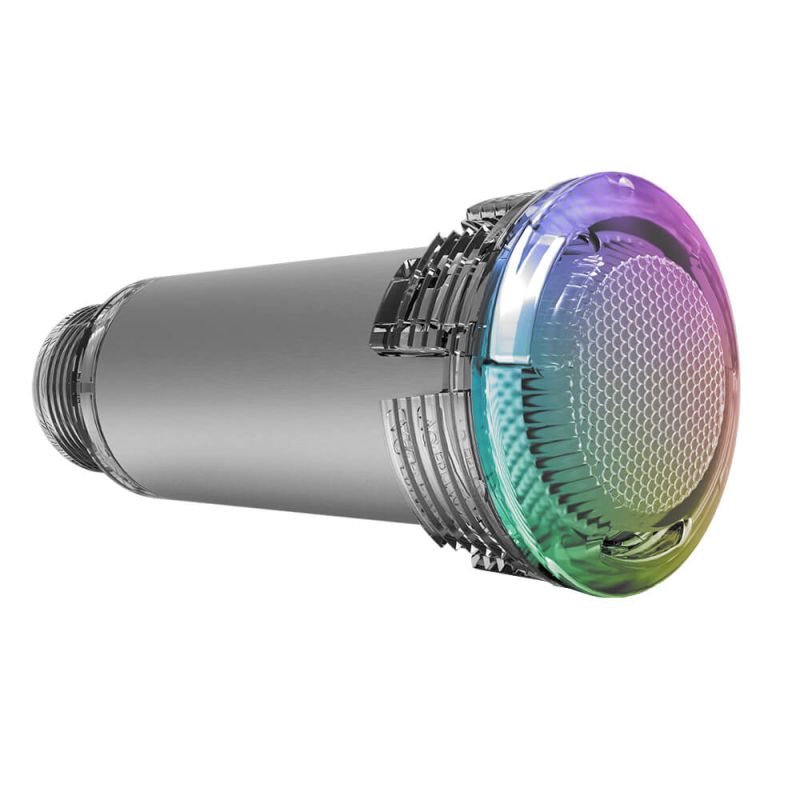

The Aqua-Quip EvoLV Series Multi-Colour PRO RGB+W LED Compact Pool Light is engineered to enhance your new concrete pool, spa, water feature, or catch tank with dynamic, vibrant lighting. With its sleek, compact design and advanced LED technology, this light offers both aesthetic appeal and powerful illumination.
Supplied with the necessary components for new pool construction, the EvoLV light comes with a Concrete Niche Mounting Kit, 30M cable, and a render ring. Designed for easy installation, the niche features a 75mm diameter and a length of 250mm (reducible to 210mm), ensuring a secure fit within your pool’s structure.
Equipped with Aqua-Quip's industry-recognized Plug Kit, installation is quick and straightforward, with a detachable cable for added convenience. Available in three LED color options—Blue, White, and PRO RGB+W—and three render ring colors (White, Grey, and Black), the EvoLV offers extensive customization to suit your pool's style. Control is effortless via a wall switch, the InstaTouch Smart Lighting Controller, or a variety of compatible third-party systems.
Built for energy efficiency and durability, the EvoLV Compact Light is an essential addition for creating a captivating nighttime poolscape.
Features:
- Multi-Colour PRO RGB+W: Offers vibrant lighting with true Cool White included.
- Compact Design: 49mm diameter for versatile positioning in intricate or larger areas.
- Detachable Cable: Factory-fitted Plug Kit simplifies installation and maintenance.
- Concrete Niche Mounting Kit: Supplied with a 75mm diameter niche and render ring (in White, Grey, and Black) for easy installation.
- Energy Efficient: Low power consumption with advanced thermal protection.
- Wide Compatibility: Works with wall switches, InstaTouch, and third-party controllers.
- Durable Construction: IPX8-rated for reliable underwater operation up to 2m depth.
- Thermal and Voltage Protection: Advanced safety features ensure longevity and dependable performance.
- Versatile Applications: Ideal for new concrete pools, spas, water features, and catch tanks.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
- Replaceable accessories
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
|
Multi-Colour RGB+W |
Blue |
White |
Warm White |
|
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
| Power Consumption |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
| Light Colour |
Program Dependant |
470 nm |
6500 k |
2850 k |
| Light Output (typical) |
Up to 245 lm |
Up to 470 lm |
75 lm |
135 lm |
340 lm |
650 lm |
340 lm |
650 lm |
Note: Multi-Colour Lights are dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Installation Types |
New Concrete Pools, Spas, Water Features, Catch Tanks |
| Operating Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Mid-Power) |
6 VA |
Power Consumption
(Hi-Power) |
12 VA |
| Dimming |
100% – 70% – 50% – 30% via InstaTouch Controller |
| Cable Gauge |
0.5mm², 2 core |
| Detachable Cable |
Yes, Plug Kit is factory fitted to supply cable and is field re-wirable |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Dimensions |
Diameter: 49mm; Protrusion: 6mm |
| Warranty |
12 Month Manufacturers Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:
- 1 x EvoLV PRO RGB+W LED Light
- 1 x Niche
- 1 x Concrete Cap
- 1 x Render Ring*
- 1 x Render Cap
- 1 x 30M Cable with Quick Connect Plug Kit
- 1 x Installation Tool
(*) Render Ring available in White, Grey and Black.
Notes:
- The EvoLV Niches and EvoLV End Caps come with two options for the connection of 20mm rigid PVC conduit. As supplied, the 90 degree conduit inlet is open and the straight inlet is blanked off. When using the straight inlet, glue in the supplied blanking plug to close the 90 degree inlet and use a 10mm drill to open the straight inlet for your cable.
- The Spanner (for Cable Seal tightening) and Fascia Ring are not supplied as part of the kit and must be ordered separately.
- EvoLV Niches have an overall length of 245mm and allow 1100mm of cable to be wound up. The niches can be shortened by up to 40mm, with some reduction in the available cable capacity.
- The length of the EvoLV Niche can be extended if required by inserting Ø65mm DWV pipe.
- Cable Seal Kit (compression nut, washer, seal) is supplied fitted to the cable, and is not part of the EvoLV Niche or EvoLV End Cap.
