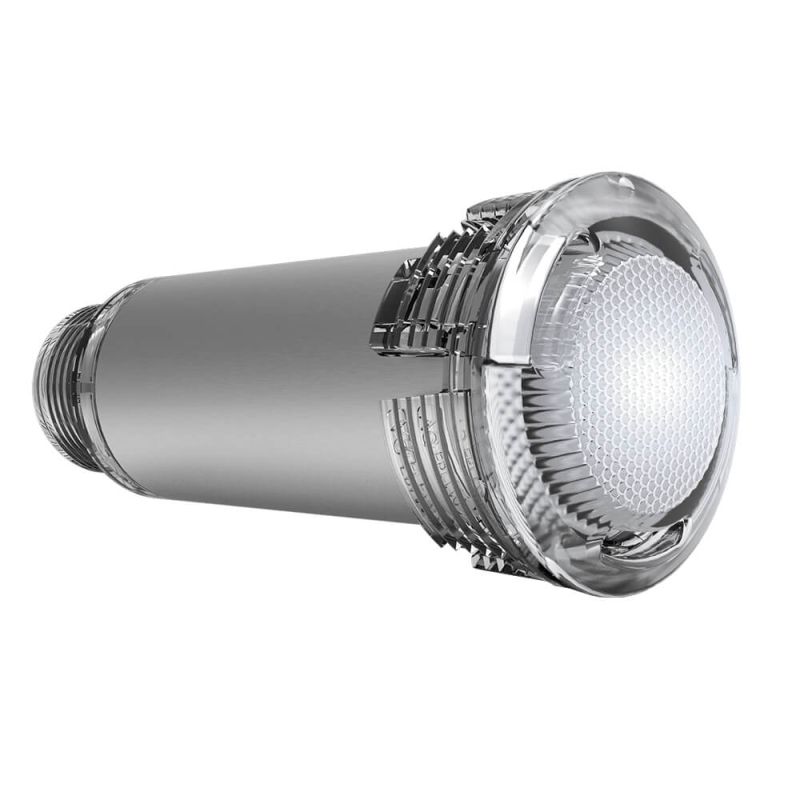

The Aqua-Quip EvoLV Series White LED Compact Pipe Pool Light combines cutting-edge LED technology with a sleek and compact design, making it the perfect solution for new concrete pools, spas, and water features, as well as renovations.
Featuring a 49mm diameter, this versatile light is designed to fit seamlessly into a 50mm PVC pipe using the included press-fit adaptor and end cap. Its compact size is ideal for illuminating intricate areas such as steps, benches, swim-outs, and shallow water zones, while its high-power capabilities ensure impressive coverage for larger pool areas.
Equipped with Aqua-Quip's industry-recognized Plug Kit, installation is quick and straightforward, with a detachable cable for added convenience. Available in three LED color options—Blue, White, and PRO RGB+W—and three press-fit adaptor colors (White, Grey, and Black), the EvoLV offers extensive customization to suit your pool's style.
Built for energy efficiency and durability, the EvoLV Compact Pipe Light is an essential addition for creating a captivating nighttime poolscape.
Features:
- Brilliant White Illumination: Emits 6500k clear white light for a crisp and inviting pool atmosphere.
- Compact Design: 49mm diameter for versatile positioning in intricate or larger areas.
- Detachable Cable: Factory-fitted Plug Kit simplifies installation and maintenance.
- Press-Fit Adaptor: Available in White, Grey, and Black for easy installation into 50mm PVC pipe.
- Energy Efficient: Low power consumption with advanced thermal protection.
- Durable Construction: IPX8-rated for reliable underwater operation up to 2m depth.
- Thermal and Voltage Protection: Advanced safety features ensure longevity and dependable performance.
- Versatile Applications: Ideal for renovations and new concrete pools, spas, water features, and catch tanks.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
- Replaceable accessories
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
|
Multi-Colour RGB+W |
Blue |
White |
Warm White |
|
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
Mid
Power |
Hi
Power |
| Power Consumption |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
6 VA |
12 VA |
| Light Colour |
Program Dependant |
470 nm |
6500 k |
2850 k |
| Light Output (typical) |
Up to 245 lm |
Up to 470 lm |
75 lm |
135 lm |
340 lm |
650 lm |
340 lm |
650 lm |
Note: Multi-Colour Lights are dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Blue |
|
White |
| Installation Types |
Renovations & New Concrete Pools, Spas, Water Features, Catch Tanks |
| Operating Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Mid-Power) |
6 VA |
Power Consumption
(Hi-Power) |
12 VA |
| Cable Gauge |
0.5mm², 2 core |
| Detachable Cable |
Yes, Plug Kit is factory fitted to supply cable and is field re-wirable |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Dimensions |
Diameter: 49mm; Protrusion: 6mm |
| Warranty |
12 Month Manufacturers Warranty |
In The Box:
- 1 x EvoLV White LED Light
- 1 x Press-Fit Adaptor*
- 1 x End Cap (Suits 50mm Pipe)
- 1 x 20M Cable with Quick Connect Plug Kit
- 1 x Installation Tool
(*) Press-Fit Adaptor available in White, Grey and Black.
Notes:
- The EvoLV Niches and EvoLV End Caps come with two options for the connection of 20mm rigid PVC conduit. As supplied, the 90 degree conduit inlet is open and the straight inlet is blanked off. When using the straight inlet, glue in the supplied blanking plug to close the 90 degree inlet and use a 10mm drill to open the straight inlet for your cable.
- The Spanner (for Cable Seal tightening) is not supplied as part of the kit, and must be ordered separately
- When using 50mm PVC pipe with EvoLV End Caps, the minimum straight pipe length should be 270mm to enable fitment of the light and 800mm of cable. The maximum straight pipe length is 310mm or less, otherwise the spanner will not reach the cable seal.
- Cable Seal Kit (compression nut, washer, seal) is supplied fitted to the cable, and is not part of the EvoLV Niche or EvoLV End Cap.
