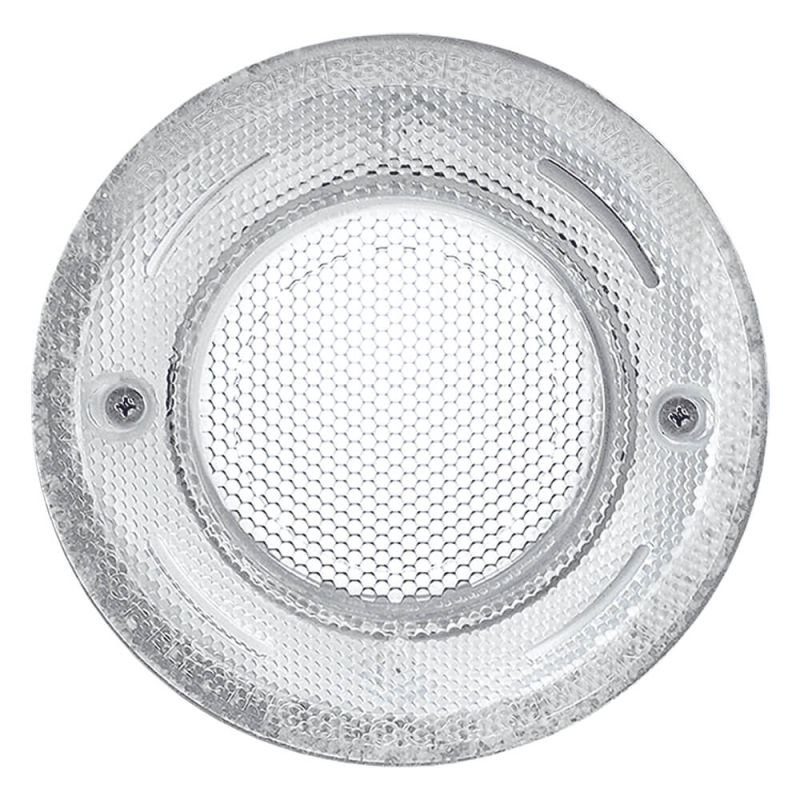

Aqua-Quip EvoMAX Series 2 x White LED Colour Niche Pool Light w/ Concrete Mounting Kit, 20M Cable and Transformer

The Aqua-Quip EvoMAX Series LED Pool Light is Aqua-Quip’s premium niche lighting solution, designed to provide maximum illumination with a sleek, low-profile design. The EvoMAX features a unique lens that is 45% larger than the Evo2, offering unparalleled light diffusion, enhanced beam spread, and side-lighting effects, making it perfect for illuminating concrete pools, spas, and water features.

This advanced LED lighting system connects using Aqua-Quip’s innovative Quick Connect Plug Kit, simplifying installation and maintenance. The clear lens seamlessly blends with your pool’s interior, enhancing its aesthetic appeal. The system’s elegance can be further elevated with an optional stainless steel trim ring for a premium finish.

EvoMAX is available in fixed colors (White and Blue) and Multi-Colour Pro RGB+W, which offers Aqua-Quip’s exclusive Colour Selection Palette for virtually limitless color combinations and dynamic pre-programmed effects. The EvoMAX operates at extra-low voltage, ensuring safety and energy efficiency while delivering superior performance.

Engineered with advanced thermal management and fault protection systems, EvoMAX guarantees reliability and long-lasting operation. It is the ideal choice for modern pools seeking a combination of powerful illumination and elegant design.

Benefits:

• Maximum Illumination: Larger lens surface provides up to 45% more light diffusion than Evo2 for superior brightness and beam spread.
• Sleek Aesthetic: Maintains a flush profile, protruding just 9mm from the pool wall, ensuring a modern, seamless look.
• Customizable Lighting Options: Available in fixed colours or Multi-Colour Pro RGB+W with Aqua-Quip’s Colour Selection Palette, offering limitless colours and pre-programmed InstaTouch mode for dynamic visual effects.
• Energy Efficiency: Advanced LED technology minimizes energy consumption while delivering maximum brightness.
• Reliable and Durable: Features thermal management and fault protection systems for consistent performance and longevity.
• Easy Installation: Quick Connect Plug Kit allows for simple connection and maintenance.
• Enhanced Elegance: Optional stainless steel trim ring adds a sophisticated touch (sold separately).
• Australian Made: Designed and manufactured to meet stringent Australian standards.

Features:

• Innovative Lens Design: Provides superior light diffusion, side-lighting effects, and eliminates hotspots.
• Brilliant White Illumination: Emits >5000K clear white light for a crisp and inviting pool atmosphere.
• Quick Connect Plug Kit: Factory-fitted for easy installation and cable detachment.
• Durable Construction: IPX8-rated for underwater operation up to 2m depth.
• Energy Efficient: Operates on extra-low voltage (12V AC) for safety and cost savings.
• Versatile Application: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.
• Replaceable accessories

LED Colour Guide:

Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.

Technical Specifications:

In The Box:

• 2 x EvoMAX White LED Light
• 2 x Concrete Mounting Kit:
  • Housing
  • Protective Cap for Housing (Red)
  • Adjustable Dress Ring*
  • Plaster Cap for Dress Ring (Green)
  • Screw Kit Standard (Ka40x20)
• 2 x 20M Cable with Quick Connect Plug Kit
• 1 x Dual Output (2x 12 Volt, 30VA) Plug-In Transformer
• Stainless Steel Trim Ring Kit - (optional)
• Screw Kit (Ka40x25) – for Stainless Steel Trim Ring - (optional)

(*) Dress Ring available in White, Grey or Black.

Dimensions:
