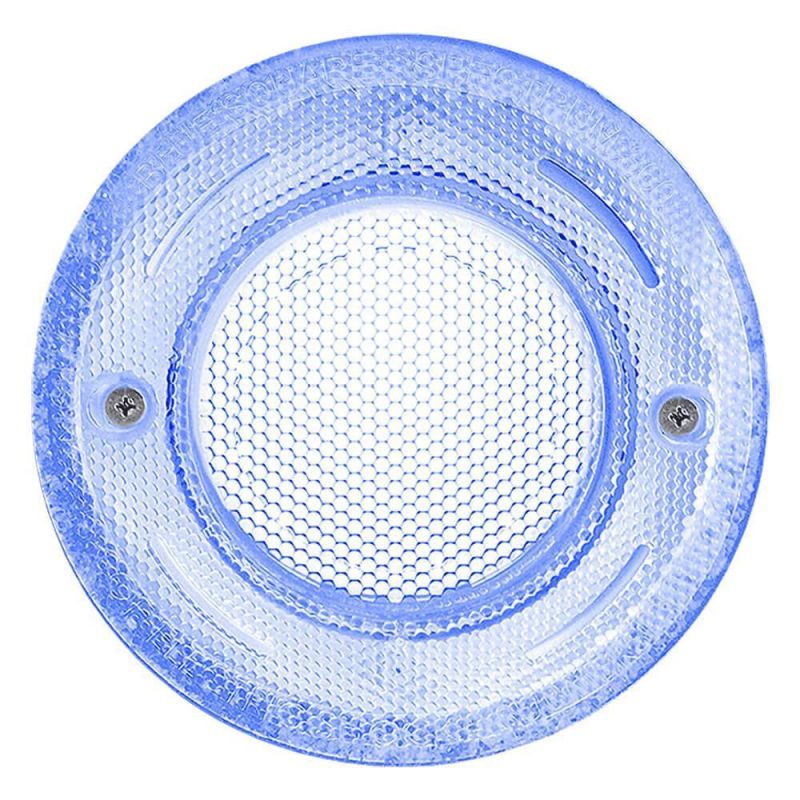

Aqua-Quip EvoMAX Series Blue LED Colour Retro-Fit Niche Mount Pool Light for PAL Evenglow – Concrete

Aqua-Quip EvoMAX Series LED Retro-Fit Pool Light for PAL Evenglow – Concrete

The Aqua-Quip EvoMAX Series Blue Colour LED Retro-Fit Pool Light is designed to seamlessly replace the existing PAL Evenglow concrete pool lights, providing illumination with a sleek, low-profile design. The EvoMAX features a unique lens that is 45% larger than the Evo2, offering unparalleled light diffusion, enhanced beam spread, and side-lighting effects, making it perfect for illuminating concrete pools, spas, and water features.

The EvoMAX Series LED light is compatible with your existing pool wiring and controller (provided it meets specifications), allowing for easy retrofitting and operation. Available in four LED color options: Blue, White, PRO RGB+W, and Multi RGB, it offers customizable lighting to match your pool's aesthetic.

Each retro-fit light is factory-sealed and includes a Quick Connect Plug Kit, along with a detachable cable system, for hassle-free installation and dependable long-term performance.

To elevate the design, the EvoMAX can be accessorized with an optional mirror-polished stainless steel trim ring, sold separately.

Benefits:

• Easy Retro-Fit Installation: Designed to replace PAL Evenglow concrete pool lights without the need for additional rewiring or new controllers*
• Maximum Illumination: Larger lens surface provides up to 45% more light diffusion than Evo2 for superior brightness and beam spread.
• Sleek Aesthetic: Maintains a flush profile, protruding just 9mm from the pool wall, ensuring a modern, seamless look.
• Energy Efficiency: Advanced LED technology minimizes energy consumption while delivering maximum brightness.
• Reliable and Durable: Features thermal management and fault protection systems for consistent performance and longevity.
• Easy Installation: Quick Connect Plug Kit allows for simple connection and maintenance.
• Enhanced Elegance: Optional stainless steel trim ring adds a sophisticated touch (sold separately).
• Australian Made: Designed and manufactured to meet stringent Australian standards.

(*) Note: Requires transformer/controller box replacement with a 12V AC transformer.

Features:

• Innovative Lens Design: Provides superior light diffusion, side-lighting effects, and eliminates hotspots.
• Vibrant Blue Illumination: Enhances pool ambiance with a brilliant 475 nm blue glow.
• Durable Construction: IPX8-rated for underwater operation up to 2m depth.
• Energy Efficient: Operates on extra-low voltage (12V AC) for safety and cost savings.
• Versatile Application: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.

LED Colour Guide:

Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.

Note: MultiColour Lights Dimmable via InstaTouch Smart Lighting Controller.

Technical Specifications:

Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.

In The Box:

• 1 x EvoMAX Blue LED Light (Retro-Fit for PAL Evenglow – Concrete)
• 1 x Plug Kit
• 1 x Mounting Hardware (where applicable)
