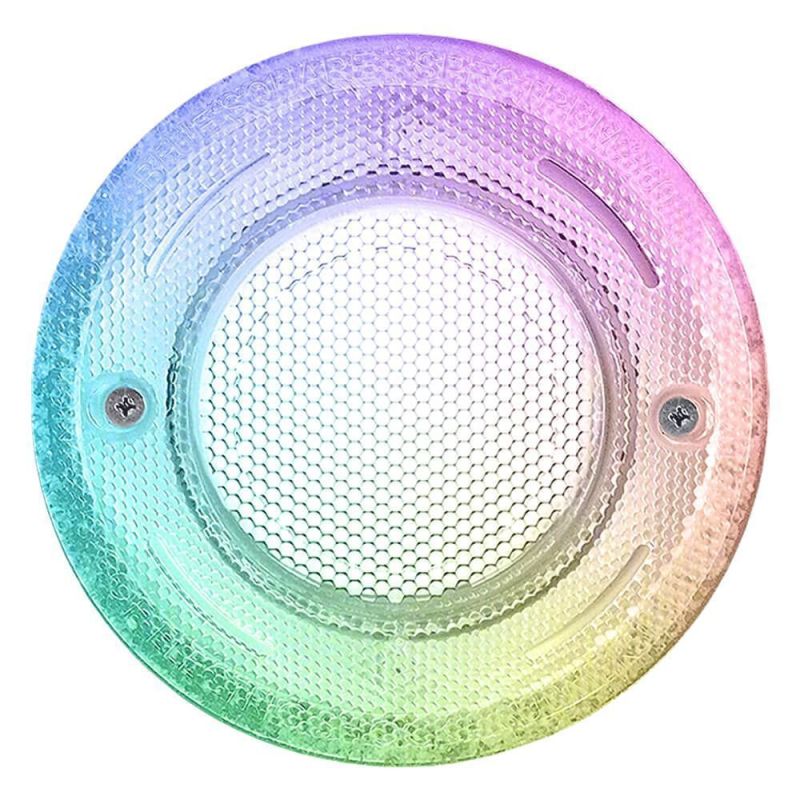

Aqua-Quip EvoMAX Series LED Retro-Fit Pool Light for Aqua-Star Halogen - Concrete
The Aqua-Quip EvoMAX Series Multi RGB LED Retro-Fit Pool Light is designed to seamlessly replace the existing Aqua-Star Halogen concrete pool lights, providing illumination with a sleek, low-profile design. The EvoMAX features a unique lens that is 45% larger than the Evo2, offering unparalleled light diffusion, enhanced beam spread, and side-lighting effects, making it perfect for illuminating concrete pools, spas, and water features.
The EvoMAX Series LED light is compatible with your existing pool wiring and controller (provided it meets specifications), allowing for easy retrofitting and operation. Available in four LED color options: Blue, White, PRO RGB+W, and Multi RGB, it offers customizable lighting to match your pool's aesthetic.
Each retro-fit light is factory-sealed and includes a Quick Connect Plug Kit, along with a detachable cable system, for hassle-free installation and dependable long-term performance.
To elevate the design, the EvoMAX can be accessorized with an optional mirror-polished stainless steel trim ring, sold separately.
Benefits:
- Easy Retro-Fit Installation: Designed to replace Aqua-Star Halogen concrete pool lights without the need for additional rewiring or new controllers*
- Maximum Illumination: Larger lens surface provides up to 45% more light diffusion than Evo2 for superior brightness and beam spread.
- Sleek Aesthetic: Maintains a flush profile, protruding just 9mm from the pool wall, ensuring a modern, seamless look.
- Energy Efficiency: Advanced LED technology minimizes energy consumption while delivering maximum brightness.
- Reliable and Durable: Features thermal management and fault protection systems for consistent performance and longevity.
- Easy Installation: Quick Connect Plug Kit allows for simple connection and maintenance.
- Enhanced Elegance: Optional stainless steel trim ring adds a sophisticated touch (sold separately).
- Australian Made: Designed and manufactured to meet stringent Australian standards.
(*) Ensure your existing transformer has a 12Vac output and at least 25VA power rating.
Features:
- Innovative Lens Design: Provides superior light diffusion, side-lighting effects, and eliminates hotspots.
- Multi-Colour Illumination: Aqua-Quip’s Colour Selection Palette offers infinite lighting options and programming modes.
- Durable Construction: IPX8-rated for underwater operation up to 2m depth.
- Energy Efficient: Operates on extra-low voltage (12V AC) for safety and cost savings.
- Versatile Application: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
30 VA Max |
25 VA |
25 VA |
25 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 795 lm |
300 lm |
985 lm |
985 lm |
Note: MultiColour Lights Dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Multi RGB |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Retro-Fit |
Aqua-Star Halogen - Concrete |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 25 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 30 VA maximum |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Warranty |
12 Month Manufacturers Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.
In The Box:
- 1 x EvoMAX Multi RGB LED Light (Retro-Fit for Aqua-Star Halogen - Concrete)
- 1 x Plug Kit
- 1 x Mounting Hardware (where applicable)
