Aqua-Quip EvoMAX Series LED Retro-Fit Pool Light for Astral SLX, Delta, ARC, Lumipower – Concrete

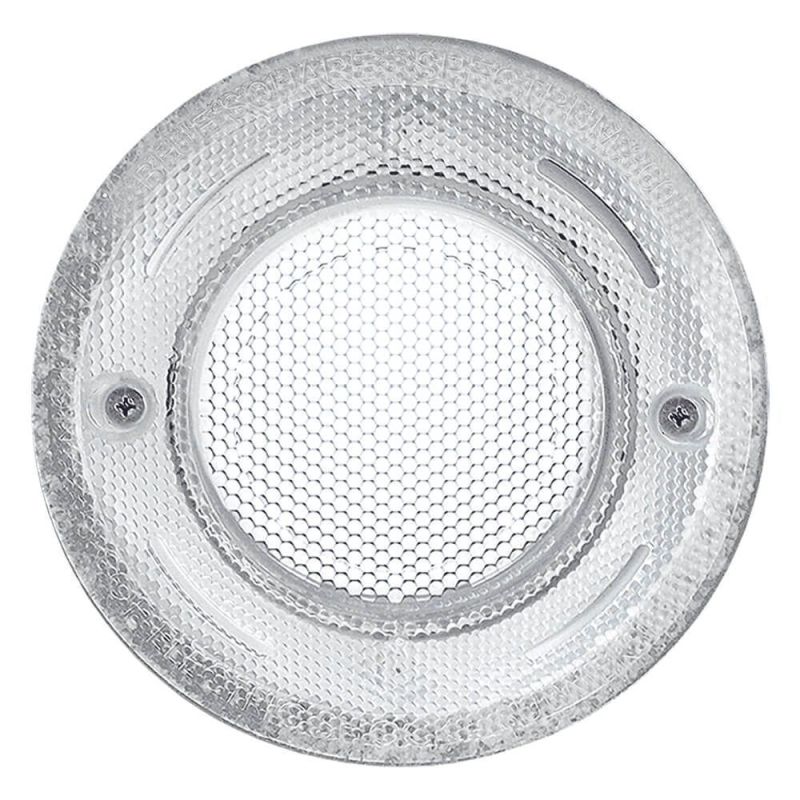

The Aqua-Quip EvoMAX Series White Colour LED Retro-Fit Pool Light is designed to seamlessly replace the existing Astral SLX, Delta, ARC and Lumipower concrete pool lights, providing illumination with a sleek, low-profile design. The EvoMAX features a unique lens that is 45% larger than the Evo2, offering unparalleled light diffusion, enhanced beam spread, and side-lighting effects, making it perfect for illuminating concrete pools, spas, and water features.
The EvoMAX Series LED light is compatible with your existing pool wiring and controller (provided it meets specifications), allowing for easy retrofitting and operation. Available in four LED color options: Blue, White, PRO RGB+W, and Multi RGB, it offers customizable lighting to match your pool's aesthetic.
Each retro-fit light is factory-sealed and includes a Quick Connect Plug Kit, along with a detachable cable system, for hassle-free installation and dependable long-term performance.
To elevate the design, the EvoMAX can be accessorized with an optional mirror-polished stainless steel trim ring, sold separately.
Benefits:
- Easy Retro-Fit Installation: Designed to replace Astral SLX, Delta, ARC, Lumipower concrete pool lights without the need for additional rewiring or new controllers*
- Maximum Illumination: Larger lens surface provides up to 45% more light diffusion than Evo2 for superior brightness and beam spread.
- Sleek Aesthetic: Maintains a flush profile, protruding just 9mm from the pool wall, ensuring a modern, seamless look.
- Energy Efficiency: Advanced LED technology minimizes energy consumption while delivering maximum brightness.
- Reliable and Durable: Features thermal management and fault protection systems for consistent performance and longevity.
- Easy Installation: Quick Connect Plug Kit allows for simple connection and maintenance.
- Enhanced Elegance: Optional stainless steel trim ring adds a sophisticated touch (sold separately).
- Australian Made: Designed and manufactured to meet stringent Australian standards.
(*) Note: Delta & ARC: requires transformer/controller box replacement with a 12v AC transformer.
Features:
- Innovative Lens Design: Provides superior light diffusion, side-lighting effects, and eliminates hotspots.
- Brilliant White Illumination: Emits >5000K bright white light for clear pool lighting.
- Durable Construction: IPX8-rated for underwater operation up to 2m depth.
- Energy Efficient: Operates on extra-low voltage (12V AC) for safety and cost savings.
- Versatile Application: Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
30 VA Max |
25 VA |
25 VA |
25 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 795 lm |
300 lm |
985 lm |
985 lm |
Note: MultiColour Lights Dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Multi RGB |
|
Blue |
|
White |
| Retro-Fit |
Astral SLX, Delta, ARC, Lumipower – Concrete |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 25 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 30 VA maximum |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.
In The Box:
- 1 x EvoMAX White LED Light (Retro-Fit for Astral SLX, Delta, ARC, Lumipower – Concrete)
- 1 x Plug Kit
- 1 x Mounting Hardware (where applicable)
Frequently Asked Questions
Are Aqua-Quip EvoMAX Retro-Fit pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoMAX Retro-Fit pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoMAX Retro-Fit pool lights need to be installed by an electrician?
EvoMAX Retro-Fit lights are extra-low voltage pool luminaires. Installation requirements vary by state and territory, and installation should be carried out by a suitably qualified person in accordance with local regulations and the manufacturer’s instructions. If any mains-voltage wiring is involved (such as a transformer that is hardwired to the supply), a licensed electrician is required.
Do EvoMAX Retro-Fit pool lights require a transformer?
Yes. EvoMAX Retro-Fit lights operate on 12V AC and require a suitable isolation transformer. Existing transformers may be reused provided they have a 12V AC output and sufficient power capacity. Always confirm transformer condition and rating before installation.
What pool lights are EvoMAX Retro-Fit models designed to replace?
EvoMAX Retro-Fit lights are designed to replace a wide range of existing pool lights and selected compatible niche-mounted installations. Confirm the existing light type and mounting arrangement before purchase, or refer to the
Aqua-Quip Evo Series Retro Fits Guide for detailed compatibility information.
Can EvoMAX Retro-Fit pool lights be operated from a wall switch?
Yes. EvoMAX Retro-Fit pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller.
Are EvoMAX Retro-Fit lights compatible with pool controllers and automation systems?
Yes. EvoMAX Retro-Fit multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. If reusing an existing controller, ensure compatibility before purchase, or refer to the
Aqua-Quip Controller Compatibility for Multi-Colour Lights for guidance.
What colour options are available in the EvoMAX Retro-Fit range?
The EvoMAX Retro-Fit range is available in fixed-colour options (blue and white), Multi RGB, and Multi-Colour PRO RGB+W. Multi-colour models provide a wide range of colours and lighting effects, depending on the selected program and controller compatibility.
What is included with EvoMAX Retro-Fit pool lights?
EvoMAX Retro-Fit lights are supplied as a complete retro-fit solution, including the LED light, plug kit, and mounting hardware where applicable. Optional stainless steel trim rings are available separately.
