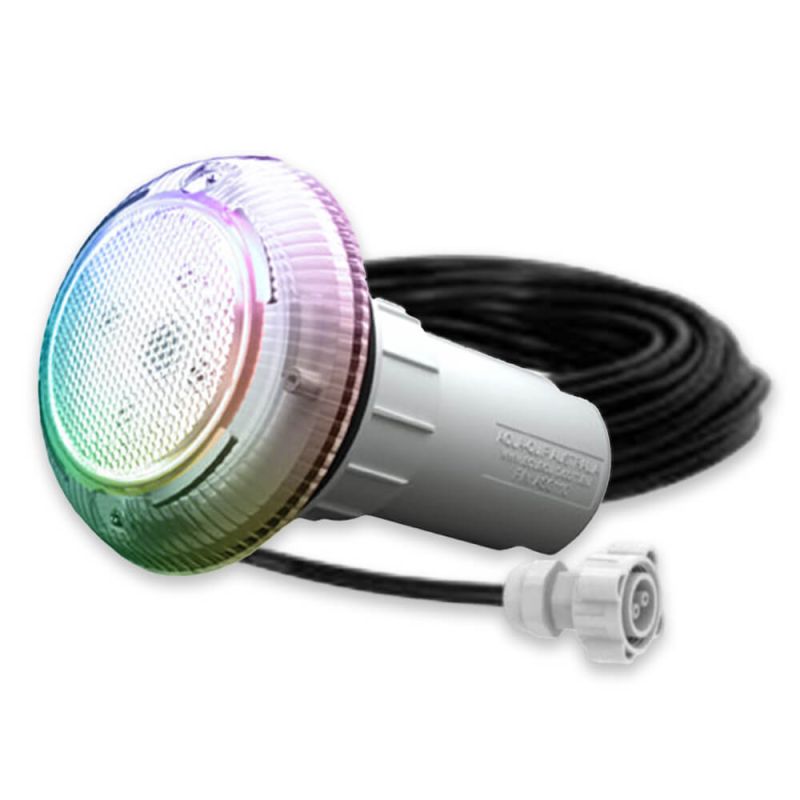

EvoCR LED Pool Light for Renovators of Concrete Pools – Ideal for Core Drilling into Existing Concrete Pools
The Aqua-Quip EvoCR LED Multi-Colour PRO RGB+W InstaTouch Program Pool Light is an advanced lighting solution tailored for renovators of concrete pools. Designed for core-drilled installations, the light features a compact housing with a 60mm diameter and 20mm rear conduit socket, making it ideal for secure, niche-mounted applications.
The EvoCR includes a press-fit adaptor plate that provides precise angular and depth adjustments to ensure a perfect finish after the pool surface is applied. Installation is simplified with a factory-sealed LED light, a Quick Connect Plug Kit, and a waterproof plug system, ensuring safe and hassle-free connection.
Operating on a safe 12V AC supply, the EvoCR LED Light is energy-efficient, with low power consumption and an extended lifespan. Its vibrant multi-colour lighting can be controlled via a wall switch or the Insta-Touch Smart Lighting Controller, offering both style and functionality for any pool renovation project.
Features:
- Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
- Energy-Efficient Design: Low power consumption paired with a long lifespan.
- User-Friendly Installation: Simplified setup with factory-fitted Quick Connect Plug Kit.
- Vibrant Multi-Colour Lighting: Choose from a range of stunning options, controllable via a wall switch or Insta-Touch Smart Lighting Controller.
- Core-Drill Installation: Designed for a 60mm diameter core-drilled hole with a 170mm niche length, perfect for retrofitting concrete pools.
- Press-Fit Adaptor Plate: Ensures precise angular and depth adjustments for a seamless finish.
- Durable Build: Factory-sealed, robust design with advanced thermal management for reliability and longevity.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Note: Dimming is available only on Multi-Colour with Aqua-Quip InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
Multi Colour |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Dimming |
Available when used with Aqua-Quip InstaTouch Smart Lighting Controller |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Cable Gauge |
0.5mm², 2 core |
| Detachable Cable |
Yes, Plug Kit is factory fitted to supply cable |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:
- EvoCR Multi-Colour LED Light
- Niche & Concrete Mounting Kit
- 20M Cable with Plug Kit
Frequently Asked Questions
Are Aqua-Quip EvoCR pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoCR pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoCR pool lights need to be installed by an electrician?
Yes. EvoCR lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules), local regulations, and the manufacturer’s instructions.
Do EvoCR pool lights require a transformer?
Yes. EvoCR lights operate on 12V AC and require a suitable isolation transformer installed in accordance with AS/NZS 3000. If required, you can find suitable options here:
pool light transformers.
What pools are EvoCR lights suitable for?
EvoCR is a niche-mounted light for concrete pools and is intended for renovation installs where the pool wall is core drilled to suit the light’s compact housing. It is a suitable option when adding a new niche light to an existing concrete pool.
Can EvoCR pool lights be operated from a wall switch?
Yes. EvoCR pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour PRO RGB+W models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller, which supports colour selection, brightness adjustment, and lighting zone control.
Are EvoCR lights compatible with pool controllers and automation systems?
Yes. EvoCR multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. Refer to the technical specifications or
contact us for confirmation before purchase.
What colour options are available in the EvoCR range?
The EvoCR range is available in fixed-colour options (blue and white) as well as a Multi-Colour PRO RGB+W option. Multi-colour models provide an extended colour palette and lighting effects, depending on the selected program and controller compatibility.
Does the EvoCR use a plug connection?
Yes. EvoCR lights use a factory-fitted waterproof Quick Connect Plug Kit, which allows the supply cable to be disconnected for simpler installation and easier servicing when required.
What is the adaptor plate used for?
EvoCR includes a press-fit adaptor plate to help set the correct depth and angle during installation, allowing a neat finish when the pool surface is applied during a renovation.
