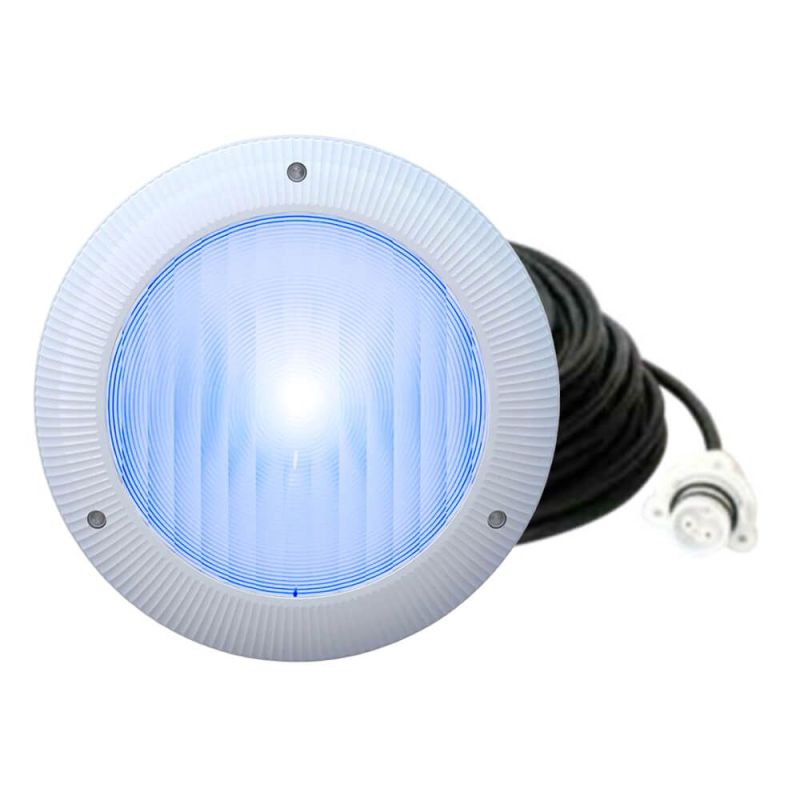

QC LED Surface-Mounted Pool Lights for New and Existing Concrete Pools
The Aqua-Quip QC LED Blue-Colour Concrete Underwater Pool Light is a state-of-the-art lighting solution designed for both new and existing concrete pools. The light is energy-efficient, utilizing only 15% of the power required by traditional halogen lights, and features advanced thermal management for optimal performance and reliability.
The QC Series features variable voltage technology (12V AC to 32V AC), concrete mounting kit, a 20m detachable cable with a factory-fitted plug kit, and optional fascia colours for added style and versatility.
Benefits:
- Perfect for New Concrete Pools: Designed specifically for installation in new concrete pools, ensuring a sleek and durable fit.
- Energy Efficiency and High Brightness: Uses just 15% of the power required by older halogen lights while delivering exceptional brightness, enhanced by advanced thermal management for maximum reliability.
- Convenient Detachable Cable: Supplied with a 20m cable and a factory-fitted plug kit, making installation straightforward and maintenance hassle-free.
- Universal Concrete Mounting Kit: Includes mounting kit designed for secure and reliable installation in concrete pools.
- Reliable Performance with Variable Voltage: Operates seamlessly with supply voltages ranging from 12V AC to 32V AC, compatible with most existing transformers.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
Features:
- LED Colour Options: Fixed blue colour
- Energy Efficient: Utilizes only 15% of the power required by halogen lights, with maximum power consumption of 22VA.
- Variable Voltage Technology: Operates from 12V AC to 32V AC, compatible with existing transformers.
- Quick Connect Feature: Equipped with a waterproof Quick Connect Plug Kit, making installation simple and secure.
- Protection and Reliability: Features power cycle “Run Dry” thermal cut-out and voltage transient clamping for fault protection.
- Replaceable accessories
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
Quattro Quad-Colour option is now available in all QC lighting fixtures. Quattro provides bright and vivid colours of White, Blue, Aqua & Green. Simply switch off/on to move between these colours.
| Standard QC Series |
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
30 VA Max |
25 VA |
25 VA |
25 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 590 lm |
300 lm |
1050 lm |
1050 lm |
| QC Quattro Series |
White |
Blue |
Aqua |
Green |
| Power Consumption |
12 VA |
12 VA |
20 VA |
12 VA |
| Light Colour |
6500K |
470 nm |
490 nm |
530 nm |
| Light Output (typical) |
540 lm |
135 lm |
530 lm |
400 lm |
Note: Dimming is available only on Multi-Colour with Aqua-Quip InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours |
Multi Colour |
|
Quattro Quad |
|
Blue |
|
White |
| Rim Colour Options |
White (standard) / Metallic Grey |
| Operating Voltage |
Variable Voltage 12V AC ~ 32V AC. +20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
| Installation Location |
200mm ~ 400mm below water level |
Power Consumption
(Fixed Colour LEDs) |
Maximum 16VA at all voltages 12V ~ 32V |
Power Consumption
(Multi-Colour LEDs) |
Maximum 22VA at all voltages 12V ~ 32V |
| Cable Gauge |
0.75mm², 2 core |
| Detachable Cable |
Yes, Plug Kit is factory fitted to supply cable |
| Fault Protection |
Thermal cutout. Voltage transient clamping |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
In The Box:
- 1 x QC Blie Colour LED Light
- 1 x Concrete Mounting Kit
- 1 x 20M Cable with Plug Kit
Frequently Asked Questions
Are Aqua-Quip QC pool lights compliant with Australian standards?
Yes. Aqua-Quip QC pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do QC pool lights need to be installed by an electrician?
Yes. QC lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules) and local regulations.
Do QC pool lights require a transformer?
Yes. QC lights are extra-low voltage and require a suitable isolation transformer installed in accordance with AS/NZS 3000. QC lights use variable voltage technology and can operate from 12V AC to 32V AC, which may suit many existing pool light transformers. Always confirm your transformer output and suitability before installation.
Can QC pool lights be installed in existing concrete pools?
Yes. QC is a surface-mounted light for concrete pools and is commonly used for both new builds and existing pools where a niche light is not installed, or where a surface-mount solution is preferred. Check your existing cut-out, cable path, and mounting position before purchase.
Can QC pool lights be operated from a wall switch?
Yes. QC pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller, which supports colour selection, brightness adjustment, and lighting zone control.
Are QC pool lights compatible with pool controllers and automation systems?
Yes. QC multi-colour lights can be used with a range of lighting controllers and pool automation systems, including Aqua-Quip InstaTouch and selected third-party systems. For correct colour operation and synchronisation, the light’s colour-changing protocol must match your controller. Refer to the technical specifications or
contact us for confirmation before purchase.
What colour options are available in the QC range?
The QC range is available in fixed-colour options (white, blue, and green), a multi-colour option, and a Quattro Quad option. Quattro Quad provides four selectable colours (white, blue, aqua, and green) operated by switching the light off/on to move between colours.
What mounting options are available for QC lights?
QC is a surface-mounted light for concrete pools and is supplied with a concrete mounting kit. Product options may be sold as light only, or as a bundle including the mounting kit and cable.
Do QC lights use a detachable cable or plug connection?
Yes. QC lights are supplied with a detachable cable and a factory-fitted plug kit, which simplifies installation and makes servicing easier when required.
