Note: This is a bulky product that requires special logistics and returns for "change of mind" are not accepted. Click here for help choosing a heat pump.

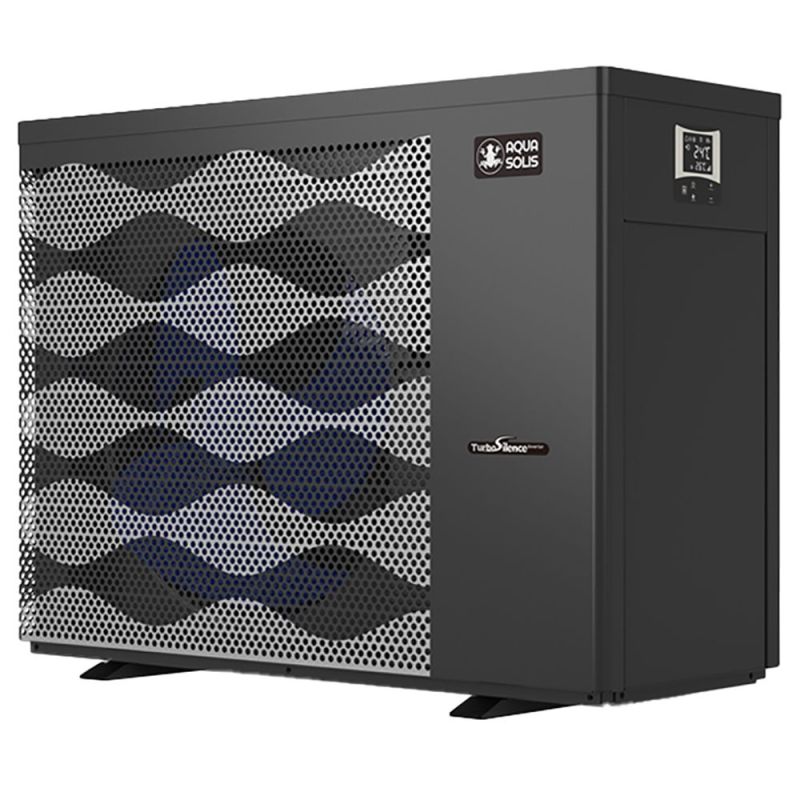

AquaSolis AQS Series 17kW Inverter+ TurboSilence Quiet Pool Heat Pump w/WiFi - Top Vent
With TurboSilence full inverter technology, the AquaSolis AQS17V (Top Vent) perfectly balances efficiency and quietness.
$6,950.00
$5,449.00
Satisfaction Guarantee
All products covered
Same Day Dispatch
On orders placed by 12pm AEDT
Price Match
Quick, simple & easy
Secure Shipping with Tracking
Guaranteed to arrive safely
Flat rate shipping
Per order Australia-wide
Free, Easy Returns
Hassle-free and convenient
Customer Service & Support
Dedicated call center
The entire TurboSilence control system is optimized based on full-inverter technology. It perfectly balances the inverter-compressor-control & heat-exchanging technology. This creates the Turbo performance and silent operation of the AquaSolis TurboSilence Full Inverter Heat Pump.
Features:
- TurboSilence Technology. The new TurboSience Inverter Tech is optimized based on full-inverter Technology, it can instantly increase heating capacity by 20%, but with silent running.
- 15 Times Quieter than standard heat pumps
- Unique heat pump compressor reduces noise even at high frequency
- Integrated Control System. Intelligent touch controller with WiFi. Contro anywhere & anytime, easy operation
- Turbo / Smart / Silence mode selection
- COP 50~70% higher than Standard Inverter HPs by 100% speed
- Extra 20% capacity for quicker heating up, still higher COP than others
- Average 50% capacity to maintain pool temperature
- Double Energy Saving, COP up to 16.1
- Operating air temperature -15°C ~ 43°C
- Unique air system to enhance heat exchanger performance
- 4 season function - can be used all year round, down to -15°C
- Environmentally friendly heat pump
Specifications:
| AQS13 | AQS17 AQS17V |
AQS21 AQS21V |
AQS26 | AQS32 | AQS32T | AQS40T | ||
| Performance Condition: Air 26 ̊C, Water 26 ̊C, Humidity 80% | ||||||||
| Working air temp ̊C) | -15 ~ 43 | |||||||
| Heating capacity (kW) | 11 | 13.8 | 17.5 | 21.5 | 27 | 27 | 35 | |
| Max Heating Capacity (kW) in Turbo mode |
13.2 | 16.8 | 21 | 25.5 | 31.5 | 31.5 | 40 | |
| C.O.P in smart mode | 8.2 | 7.5 | 7.3 | 7.8 | 7.4 | 7.4 | 7.3 | |
| C.O.P at optimal capacity | 15.0 ~ 7.3 | 15.5 ~ 6.4 | 15.0 ~ 6.3 | 16.0 ~ 6.8 | 15.8 ~ 6.3 | 15.8 ~ 6.3 | 15.8 ~ 6.4 | |
| C.O.P at 50% capacity | 11.6 | 11.2 | 11.2 | 11.3 | 11.2 | 11.2 | 11.1 | |
| Performance Condition: Air 15 ̊C, Water 26 ̊C, Humidity 70% | ||||||||
| Working air temp ( ̊C) | -15 ~ 43 | |||||||
| Heating capacity (kW) | 7.3 | 9.4 | 11.8 | 14.8 | 18 | 18 | 24 | |
| Max Heating Capacity (kW) in Turbo mode |
8.8 | 11.3 | 14.3 | 17.5 | 21.5 | 21.5 | 28 | |
| C.O.P in smart mode | 5.3 | 5 | 5 | 5.4 | 5.3 | 5.3 | 5.1 | |
| C.O.P at optimal capacity | 6.8 ~ 4.9 | 7.3 ~ 4.4 | 7.8 ~ 4.6 | 7.8 ~ 4.9 | 7.8 ~ 4.9 | 7.8 ~ 4.9 | 7.9 ~ 4.7 | |
| C.O.P at 50% capacity | 6.5 | 6.6 | 6.8 | 6.8 | 6.8 | 6.8 | 6.7 | |
| Electrical Specifications | ||||||||
| Rated Current (A) | 16 | 20 | 25 | 25 | 32 | 16 | 16 | |
| Fuse (A) | 15.00 | 19.00 | 22.50 | 24.50 | 28.50 | 11.30 | 15.00 | |
| Power Cord (mm2) | 3 x 2.5 | 3 x 4 | 3 x 4 | 3 x 6 | 3 x 6 | 5 x 2.5 | 5 x 2.5 | |
| Other System Specifications | ||||||||
| Sound pressure at 1m dB(A) |
38.6 ~ 46.9 | 42.0 ~ 47.7 | 42.9 ~ 50.8 | 40.8 ~ 51.2 | 43.3 ~ 51.9 | 43.3 ~ 51.9 | 42.5 ~ 51.7 | |
| Sound pressure of 50% capacity at 1m dB(A) |
41.3 | 43.7 | 44.5 | 44.4 | 46.4 | 46.4 | 43.8 | |
| Sound pressure at 10 m dB(A) |
18.6 ~ 26.9 | 22.0 ~ 27.7 | 22.9 ~ 30.8 | 20.8 ~ 31.2 | 23.3 ~ 31.9 | 23.3 ~ 31.9 | 22.5 ~ 31.7 | |
| Advised Water Flow - LPM | 70 - 100 | 90 - 120 | 110 - 140 | 120 - 150 | 165 - 200 | 165 - 200 | 200 - 300 | |
| Water Connection IN/OUT |
40mm | |||||||
| Heat Exchanger | Titanium in PVC | |||||||
| Casing | Aluminium Alloy | |||||||
| Rated input power (kW) | 0.25 ~ 2.1 | 0.25 ~ 2.1 | 0.33 ~ 2.5 | 0.44 ~ 3.33 | 0.58 ~ 4.00 | 0.79 ~ 5.2 | 0.79 ~ 5.2 | |
| Rated input current (A) | 9.1 ~ 1.1 | 9.1 ~ 1.1 | 10.9 ~ 1.4 | 14.5 ~ 1.9 | 17.4 ~ 2.5 | 8.0 ~ 1.1 | 8.0 ~ 1.1 | |
| Power Supply | 230V/1 Ph/50Hz | 415V/3 Ph | ||||||
| Net Weight (kg) | 61 | 65 | 70 | 98 | 102 | 111 | 126 | |
| Pool Size (Litres) | Up to 20,000 |
Up to 30,000 |
Up to 40,000 |
Up to 50,000 |
Up to 60,000 |
Up to 60,000 |
Up to 90,000 |
|
Warranty:
- 20 Year Limited Warranty on Titanium heat exchanger
- 10 Year Warranty on Compressor
- 2 Years parts, 12 months labour
| SKU | AQS17V |
|---|---|
| Package Length | 95 cm |
| Package Width | 45 cm |
| Package Height | 67 cm |
| Warranty | 2 Years |
| Brand | AquaSolis |
| Model | AQS17V |
| Product Type | Heat Pump |
| Shipping Type | Bulky - Oversized |
| Heat Capacity (kW) | 13.8 kW / 16.8 kW in Turbo Mode |
| Power Input | 0.25 ~ 2.1 kW |
| C.O.P. | 5 / 7.3 ~ 4.4 / 6.6 (in smart mode / at optimal capacity / at 50% capacity) |
| Max Amps | 9.1 ~ 1.1 |
| Connection Type | Hardwired |
| Water Flow Rate | 90 - 120 L/Min |
| Noise (Decibels) | 42.0 ~ 47.7 at 1m dB(A) |
| Plumbing | 40mm |
