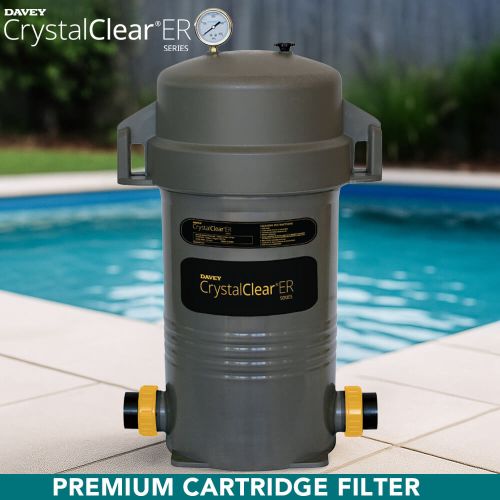

Davey CrystalClear ER Series DCC270 Premium Pool and Spa Cartridge Filter 25.1m2
Satisfaction Guarantee
All products covered
Same Day Dispatch
On orders placed by 12pm AEDT
Price Match
Quick, simple & easy
Secure Shipping with Tracking
Guaranteed to arrive safely
Flat rate shipping
Per order Australia-wide
Free, Easy Returns
Hassle-free and convenient
Customer Service & Support
Dedicated call center
CrystalClear Filtration Made Simple
The Davey CrystalClear ER Series delivers easy, dependable filtration with backwash-free operation. Each compact, low-profile tank houses a pleated cartridge that captures debris efficiently, saving water while keeping pools and spas sparkling clear. With a one-piece moulded polypropylene body, easy-read pressure gauge, and manual air bleed, everyday pool care stays straightforward and stress-free.
Ideal for fresh, salt, and mineral pools, the CrystalClear ER Series brings the clarity you want with fewer steps and less maintenance. When the gauge rises, simply hose the reusable cartridge and enjoy season-long reliability backed by Davey’s 10-year tank warranty.
Why Choose the Davey CrystalClear ER Series?
When water matters, a cartridge filter is a smart choice. Enjoy backwash-free, water-saving performance with high-capacity pleated fabric inside a rugged, Australian-engineered housing. The ER Series delivers cleaner water, simpler upkeep, and proven Davey performance for local conditions.
-
Water Saving
Backwash-free design that’s ideal for water-sensitive installations. -
Easy Maintenance
Low-profile tank with quick lid access and a reusable pleated cartridge. -
Clearer Water
High-capacity pleated polyester fabric for confident, crystal-clear results.
Key Features
- Seamless one-piece tank – moulded polypropylene built for long, dependable service.
- Generous pleated cartridge (25.1 m²) – wide, deep pleats capture fine debris and extend time between cleans.
- Backwash-free & water-saving – ideal for water-sensitive setups and simple installs.
- Lift-and-hose cleaning – hand lock ring and open pleat spacing make maintenance quick and easy.
- Clear cleaning cues – the easy-read pressure gauge shows when a rinse will restore peak flow.
- Confident servicing – manual air bleed purges trapped air before opening.
- Sized for family pools – up to 510 L/min flow; turns over ~183,600 L in 6 hours.
- Fast installation – 40/50 mm quick-connect barrel unions suit common Aussie pipework.
- All-pool compatible – fresh, salt, or mineral water; operates up to 50 °C and 250 kPa.
Technical Specifications
| Model | DCC135 | DCC180 | DCC225 | DCC270 | |
|---|---|---|---|---|---|
| Filtration Area (m²) | 12.5 | 16.7 | 20.9 | 25.1 | |
| Maximum Flow Rate (L/min)* | 381 | 450 | 480 | 510 | |
| 6-Hour Turnover (litres) | 133,000 | 157,000 | 167,500 | 183,600 | |
| Maximum Water Temperature | 50 °C | ||||
| Maximum Operating Pressure | 250kPa | ||||
| Maximum Pressure Drop | 20kPa | ||||
| Inlet/Outlet Size (mm) | 40/50 | ||||
| Replacement Filter (P/N) | DCE1039 | DCE1038 | DCE1040 | DCE1041 + DCE1038 (twin filter unit) | |
| Dimensions H × W × D (mm) | 668 × 483 × 483 | 668 × 483 × 483 | 811.5 × 479 × 570 | 941.5 × 479 × 570 | |
| Warranty | Tank: 10 years Components: 1 year | ||||
* Based on the residential flow rate and 50mm pipe
Confidence You Can Depend On
Davey has supported Australian pools for generations with equipment tailored to local conditions and backed by local expertise. The CrystalClear ER Series Cartridge Filters continue that commitment to performance, simplicity, and long service life.
✔ Australian brand heritage – trusted by pool owners for decades
✔ Built for local conditions – dependable operation in real Aussie backyards
✔ Water-saving performance – backwash-free clarity
✔ Simple care – easy-clean cartridge, gauge, and bleed valve
✔ Clear warranty coverage – 10 years on tank, 1 year on components
✔ Proven reliability – season after season
Frequently Asked Questions
How do I clean the cartridge?
Turn off the pump, release the air bleed to relieve pressure, and remove the lid with the hand lock ring. Remove the cartridge and rinse between the pleats with a garden hose. For oils, calcium, or stubborn debris, soak the element overnight in a suitable cartridge cleaning solution before rinsing.
Pro Tip: Save time and water with the Water-Wand Pro Cartridge Cleaner (CWL056). Its fan spray jets flush dirt and debris from between the pleats quickly and evenly.
How do I know when to clean the cartridge?
Check the pressure gauge. When it rises about 50 kPa above the clean reading (noted after installation or cleaning), it’s time to hose down the cartridge element.
How often should I clean the cartridge?
It depends on bather load and debris. Many pools need cleaning every few weeks in summer, less often in winter. Always clean if the pressure gauge shows +50 kPa or at least once a year to maintain warranty coverage.
Does it need backwashing like a sand filter?
No. Cartridge filters are backwash-free, saving water and simplifying care. Cleaning is done by removing and hosing the cartridge.
What is the maximum pressure and temperature rating?
The ER Series operates safely up to 250 kPa and 50 °C.
How do I start up the filter for the first time?
Open any valves, ensure plumbing is correct, loosen the air bleed, and prime the pump. Once water flows steadily and air is expelled, tighten the bleed and note the clean pressure reading on the gauge.
What pools is this filter suitable for?
The CrystalClear ER Series suits in-ground and above-ground pools with fresh, salt, or mineral water. Four models cover different pool sizes up to ~180,000 L turnover in 6 hours.
| SKU | DCC270 |
|---|---|
| Package Height | 97 cm |
| Package Length | 50 cm |
| Package Width | 50 cm |
| Warranty | 10 Years Tank, 1 Year Components |
| Brand | Davey |
| Model | CrystalClear ER DCC270 (25.1m²) |
| Product Type | Cartridge Filter |
| Shipping Type | Standard |
| Flow Rate (litres per minute) | 510 |
| Plumbing | 40/50mm |
| Dimensions | Diameter: 570, Height: 941.5, Clearance to remove cartridge: 1600 (mm) |
| Maximum Working Pressure | 250kPa |
