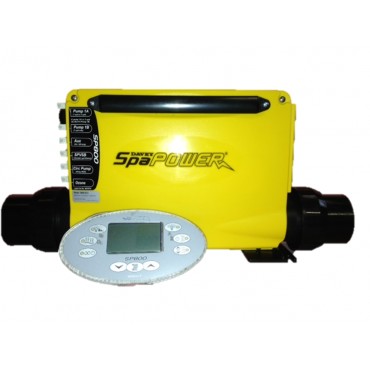

Davey Spa-Quip SP800 3.0kw Spa Controller Q800S-30KIT - Spa Spare Part

Davey Spa-Quip Spa Power 800 3.0kw(15amp) Spa Pool Controller/Heater.

**THIS PRODUCT IS MADE IN AUSTRALIA**

The SP800 is also sold in a 15amp 2.0kw.

The 3.0kw model can be set from 15amps up to 40amps (with the 3.0kw model you need to work out the power rating on all items that are plugged in i.e, Pumps, blower etc).

System is sold complete with: Heater/Control Box, 2 X 50mm unions, 1 X Touchpad and overlay.

This Controller can be set up in the following configurations (Download user guide from task tab for full details)

High Voltage AMP Sockets : Pump 1A (one or two speed pump) Pump 2 (single speed pump, this socket can't be used if socket 1A has a two speed pump fitted). AUX Output (this socket can run a blower or pump) SPVSB (this socket can only be used for a Davey Variable speed blower) Circ Pump Socket, Ozone Socket/

Low Voltage Sockets inside controller: 2 X Touch pad sockets, 4 X Davey LED light sockets, 1 X inpool temp sensor socket, 1 X 12volt light Output.

NOTE: If a 2speed pump is fitted to Pump 1A socket you can't use 1B socket.

NOTE: If running a laing circ pump you need to buy heater element inserts, this will only work on the 2.0kw model.

NOTE: Rectangular touch pads can be ordered on request (good idea if retro fitting).
