Polaris Quattro Sport Pressure Pool Cleaner. Aggressive Wall-Climbing, 2Y Warranty

1. Confirm wheel speed is 28–32 RPM. Adjust if necessary (see manual Section 7).

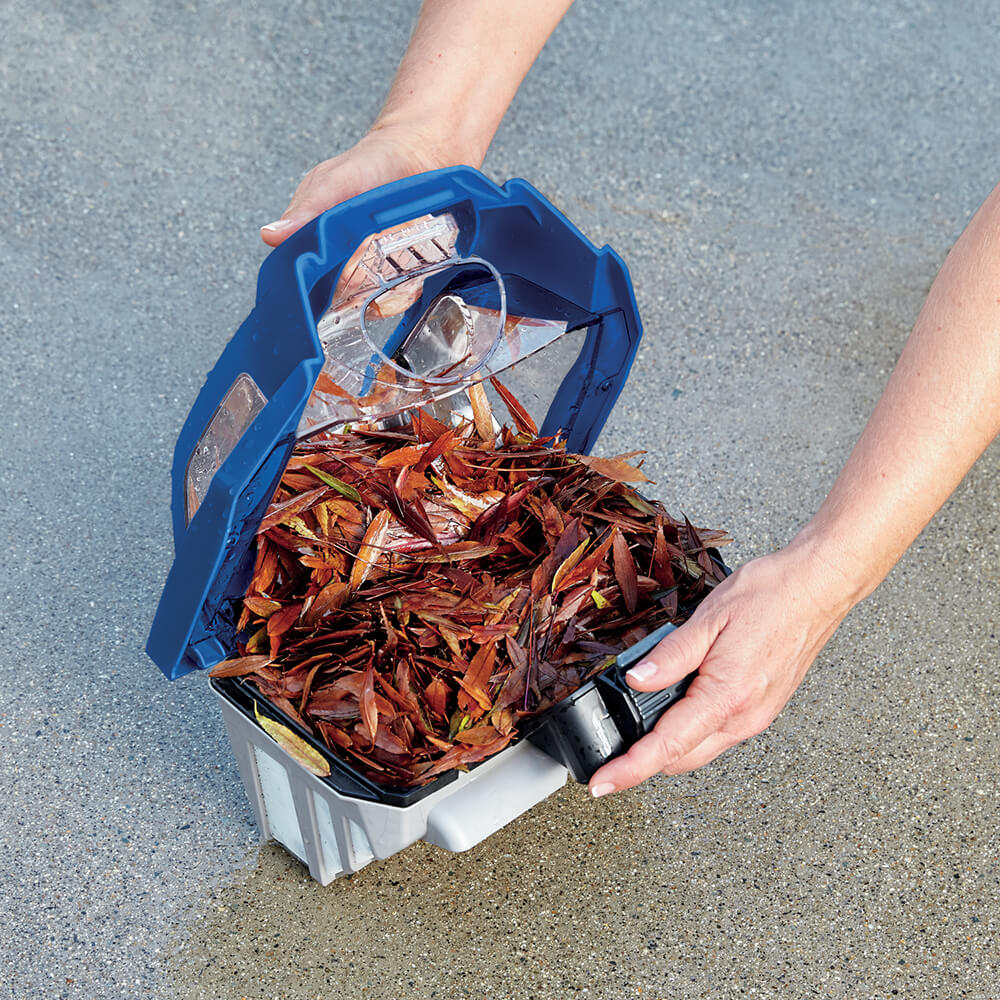

2. Check and clean the filter canister if full.
3. Recheck hose float positions (first at connector, then spaced 30–90 cm apart).
4. Adjust the thrust jet direction (see manual Section 8).

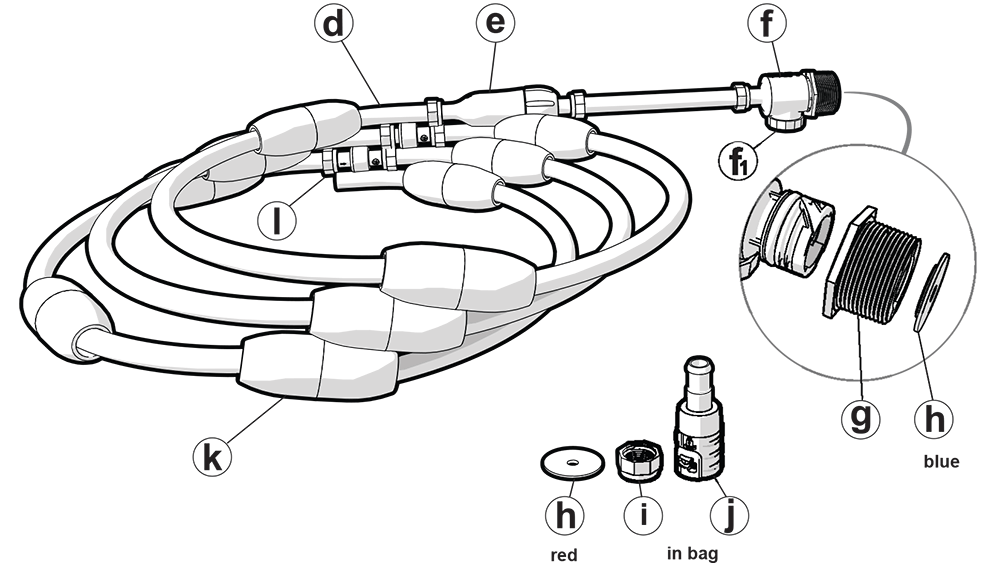

5. Remove ladders or other hardware, or install a Ladder Guard Kit (Part #W7230412).
6. Add a Back-Up Valve (Part #W7230308 white) and position it 1.8–2.4 m away from the cleaner, with a hose float behind it.

1. Adjust the thrust jet direction and flow settings (see manual Section 8).
2. Make sure the hose is not too long for the pool—trim if necessary.

1. Verify wheel speed (target 28–32 RPM).
2. Clean the filter canister.
3. Clean the in-line filter and check the internal screen for debris.
4. Clean the skimmer basket, pump basket, and main pool filter.
5. Check all hose connections and swivels for leaks that may reduce water pressure.

1. Confirm wheel speed is within 28–32 RPM.
2. Ensure hose floats are positioned correctly (first at connector, then 30–90 cm apart).
3. Clean the filter canister.
4. Adjust thrust jet angle (see Section 8).

No. Leaving it in the pool 24/7 increases exposure to chemicals, which can shorten the cleaner’s lifespan.

Yes. Always take the cleaner out when adding large amounts of chemicals like chlorine or acid.

Avoid leaving it in direct sunlight for long periods. Store it in a cool, shaded place when not in use.

Before storing, clean and dry the cleaner thoroughly. Store it indoors or in a dry, sheltered location during the off-season.

The thrust jet controls cleaner direction. The default position is at 3 o’clock.
To adjust:

• Loosen the square nut with a wrench, reposition the jet, and tighten again.
• Turn counter-clockwise to decrease flow and clockwise to increase it. (See manual Section 8 for more details.)

If below 28 RPM:

• Clean the in-line filter screen.
• Clear the skimmer, pump basket, and pool filter.
• Check for hose leaks and worn swivel joints.
• Make sure the flow arrow on the swivel points toward the cleaner.
• Remove the blue restrictor disk from the wall fitting.

If above 32 RPM:

• Replace the blue restrictor disk with a red one.
• Loosen the pressure relief valve until RPM is within target range.

Note! Only adjust the relief valve if a restrictor disk is installed.

If you suspect a problem with the back-up valve:

• Cycle Check: Hold it out of the water—it should turn on and off every ~3 minutes. If it stays on constantly or doesn’t activate, it may need replacement.
• Float Positioning: Ensure a hose float is placed directly behind the valve.
• Correct Orientation: The water jet outlet should face the Polaris cleaner—double-check it isn’t installed backward.

Yes. A full range of genuine Polaris replacement parts is available to keep your cleaner running at its best — from wheels and brushes to hose fittings and filters. Browse Quattro Sport Spare Parts.
