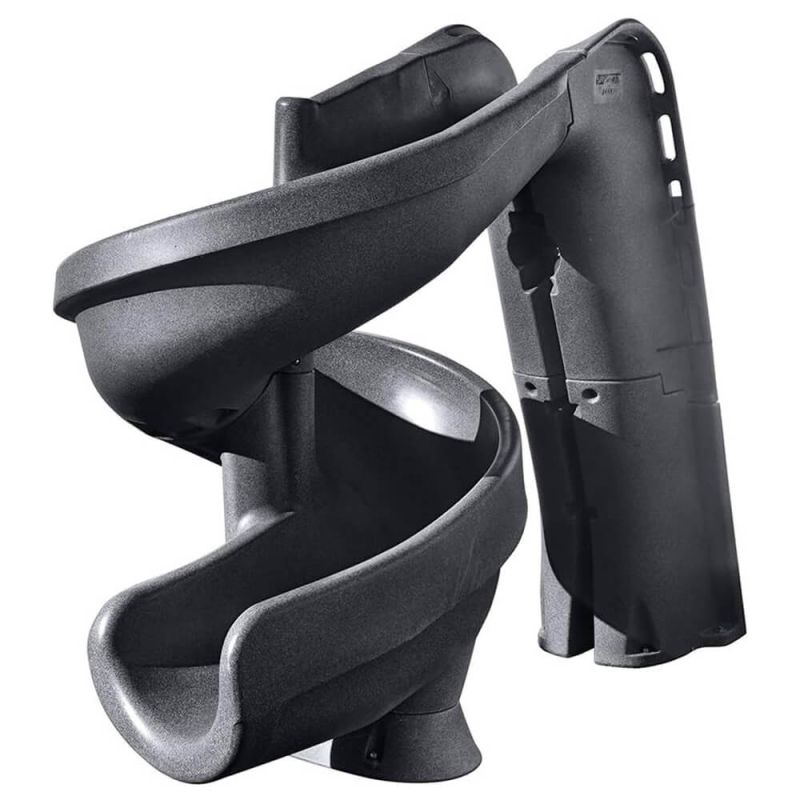

S.R.Smith heliX2 Deck Mounted Pool Slide - Gray Granite

Designed For Years Of Serious Fun

The S.R. Smith heliX2 Deck Mounted Pool Slide in Gray Granite is the ultimate addition to your backyard pool, offering an exciting and safe sliding experience for both kids and adults. With its next-generation design, the heliX2 features a deeper 360-degree flume that delivers a thrilling ride from top to bottom. Crafted from high-quality, corrosion-resistant materials, this slide is built to withstand the elements and provide years of fun.

The patented water feature, powered by an improved water delivery system, creates an impressive fountain effect that enhances every ride. The slide’s fully roto-molded construction ensures durability, while the enclosed ladder and integrated handrails offer maximum safety.

Ideal for saltwater pools, the heliX2 is designed to perform flawlessly in any pool environment. With a sleek, elegant design and easy assembly, the S.R. Smith heliX2 is the perfect blend of fun, safety, and style for your pool area. The heliX2 is fully CPSC compliant and accommodates sliders up to 113Kg.

Features:

• Deeper 360° corkscrew flume for fast and safe sliding
• Patented water feature delivery system for a dramatic fountain effect
• 2.2m in height (1.9m to seat)
• Accommodates sliders up to 113kg
• Sturdy rotomolded construction – for strength and durability
• Enclosed ladder and molded handrail design for maximum safety
• Designed for quick and easy assembly
• 75 Lpm water delivery system can be plumbed through the pool’s return line or connected to a garden hose
• Simple deck mounted installation
• Intended for use on in-ground swimming pools only

Salt Pool Friendly

Enclosed Ladder

Integrated Handrails

Wide Flume

Specifications:

• Height: 223.5cm
• 360-degree flume is 3.8m in length
• Required deck space: 2.7m x 1.5m
• 75 Lpm water flow
• Weight limit: 113kg

Children must be supervised at all times when using this slide.

Deck Mounted Pool Slides:

Manufactured from high-quality corrosion-resistant material, S.R.Smith deck mounted pool slides are engineered to deliver serious fun, season after season! Ranging in size from the SlideAway at just over 1.5m, to the towering TurboTwister that tops out at 2.6m, they resist fading and scratching, and retain their luster for years to come. There is an integrated water delivery system on each S.R.Smith slide that provides high-volume water fun for a slippery, sloshy ride. And for salt pool environments the pool slides are salt friendly!

Slide Placement Guidelines:

The Pool Industry Association has provided these guidelines for slide placement. The slides can be mounted directly to the deck making retrofit applications easy. From the top of the ladder, a flume that curves down to the left is a left-curve slide, and a flume that curves down to the right is a right-curve slide.

The critical dimensions for placement of the heliX2:

• The slide exit runway surface shall not exceed 51 cm above the water surface.
• The slide shall be positioned so that all water flowing off the runway exit drops into the pool. The recommended overhang is 9 cm minimum.
• The minimum depth of water below the exit lip of the slide shall be 91 cm and increase to 137 cm at Pt. A, which is a distance of 137 cm from the exit lip of the slide.
• A minimum depth of 137 cm shall be maintained at a distance of 274 cm along the extended centerline of the slide from Pt. A.

Minimum clearance area in front of the slide:

• The minimum clearance distance on either side of the extended centerline of the slide runway shall not be less than 107 cm at a point no less than 76 cm from the exit lip of the slide and extending a distance of 411 cm in front of the slide.

Caring for Your Swimming Pool Slide:

Use a non-abrasive soap and water when possible. Always try a test spot of a product before applying to a larger area and read the label instructions on any cleaner carefully before applying it to the slide.
You may safely use: Windex with Ammonia®, Formula 409®, Fantastik®, Soft Scrub®, Scrubfree, Tackle®, Grass Plus®, Topjob®, Tilex®.

DO NOT USE: Dow with Scrubbing Bubbles®, Lysol® Disinfectant, Ajax® Cleanser, Windex® with vinegar, White Cap®, Ajax® Liquid, Soft Scrub®.

Dimensions:

Available Colors:

Rotomolded
Sandstone*

Rotomolded
Gray Granite*

*Grey Granite and Sandstone slides are not an exact match with Grey Granite or Sandstone diving boards & stands due to differences in material.
