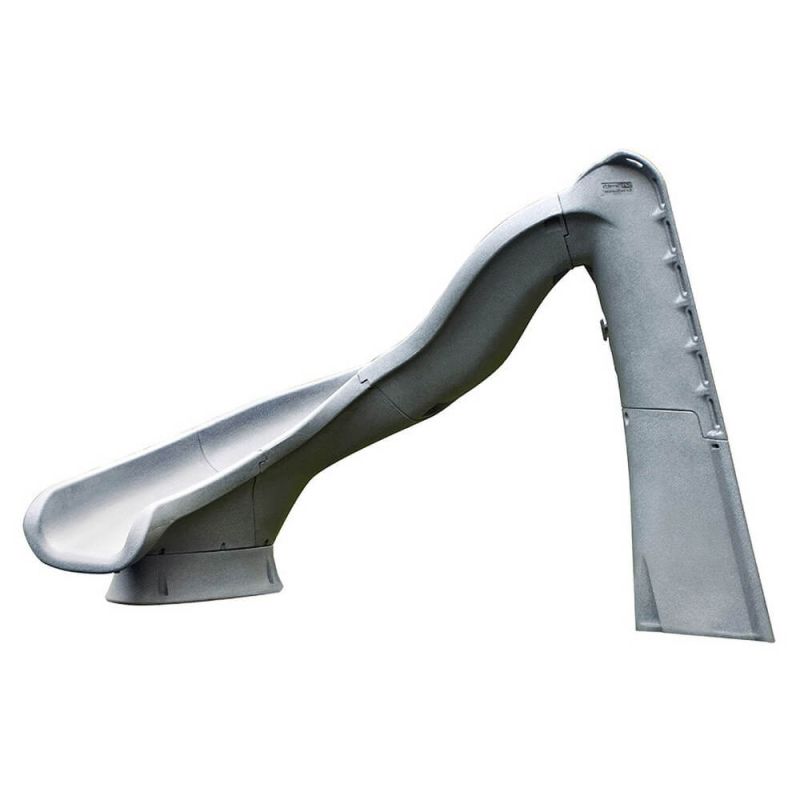

S.R.Smith TurboTwister Deck Mounted Left Curve Pool Slide - Grey Granite

Pool slides make your backyard fun-central!

The S.R.Smith TurboTwister Deck Mounted Left Curve Pool Slide in Grey Granite brings the thrill of a waterpark to your backyard! Engineered for excitement, this slide features exhilarating dips and curves, paired with a high-volume water delivery system for a fun, fast ride. Safety is a top priority, with sturdy molded-in handrails and an enclosed ladder design, ensuring secure climbs and descents.

Compliant with Consumer Product Safety Commission Standards, the TurboTwister accommodates sliders up to 124kg, making it a perfect addition for family fun.

This thrill-ride pool slide is designed with curves and dips that guarantee hours of fun for the entire family.

Features:

• 2.6m in height (2.1m to seat)
• Available with a right or left curved flume
• Accommodates sliders up to 124kg
• Sturdy rotomolded construction for strength and durability
• Enclosed ladder and molded handrail design for maximum safety
• Designed for quick and easy assembly
• 95 Lpm water delivery system can be plumbed through the pool’s return line or connected to a garden hose
• Simple deck mounted installation
• Intended for use on in-ground swimming pools only

Salt Pool Friendly

Enclosed Ladder

Integrated Handrails

Wide Flume

Specifications:

• Height: 2.6M
• Flume: 4.4M in length
• Required deck space: 4.1M x 2M.
• Water flow: 95 Lpm
• Weight limit: 124kg.
• Available in right or left curves.

Children must be supervised at all times when using this slide.

Deck Mounted Pool Slides:

Manufactured from high-quality corrosion-resistant material, S.R.Smith deck mounted pool slides are engineered to deliver serious fun, season after season! Ranging in size from the SlideAway at just over 1.5m, to the towering TurboTwister that tops out at 2.6m, they resist fading and scratching, and retain their luster for years to come. There is an integrated water delivery system on each S.R.Smith slide that provides high-volume water fun for a slippery, sloshy ride. And for salt pool environments the pool slides are salt friendly!

Slide Placement Guidelines:

The Pool Industry Association has provided these guidelines for slide placement. The slides can be mounted directly to the deck making retrofit applications easy. From the top of the ladder, a flume that curves down to the left is a left-curve slide, and a flume that curves down to the right is a right-curve slide.

The critical dimensions for placement of the Typhoon:

• The slide exit runway surface shall not exceed 51 cm above the water surface.
• The slide shall be positioned so that all water flowing off the runway exit drops into the pool. The recommended overhang is 9 cm minimum.
• The minimum depth of water below the exit lip of the slide shall be 91 cm and increase to 137 cm at Pt. A, which is a distance of 137 cm from the exit lip of the slide.
• A minimum depth of 137 cm shall be maintained at a distance of 274 cm along the extended centerline of the slide from Pt. A.

Minimum clearance area in front of the slide:

• The minimum clearance distance on either side of the extended centerline of the slide runway shall not be less than 107 cm at a point no less than 76 cm from the exit lip of the slide and extending a distance of 411 cm in front of the slide.

Caring for Your Swimming Pool Slide:

Use a non-abrasive soap and water when possible. Always try a test spot of a product before applying to a larger area and read the label instructions on any cleaner carefully before applying it to the slide.
You may safely use: Windex with Ammonia®, Formula 409®, Fantastik®, Soft Scrub®, Scrubfree, Tackle®, Grass Plus®, Topjob®, Tilex®.

DO NOT USE: Dow with Scrubbing Bubbles®, Lysol® Disinfectant, Ajax® Cleanser, Windex® with vinegar, White Cap®, Ajax® Liquid, Soft Scrub®.

Dimensions:

Available Colors:

Rotomolded
Sandstone*

Rotomolded
Gray Granite*

*Grey Granite and Sandstone slides are not an exact match with Grey Granite or Sandstone diving boards & stands due to differences in material.
