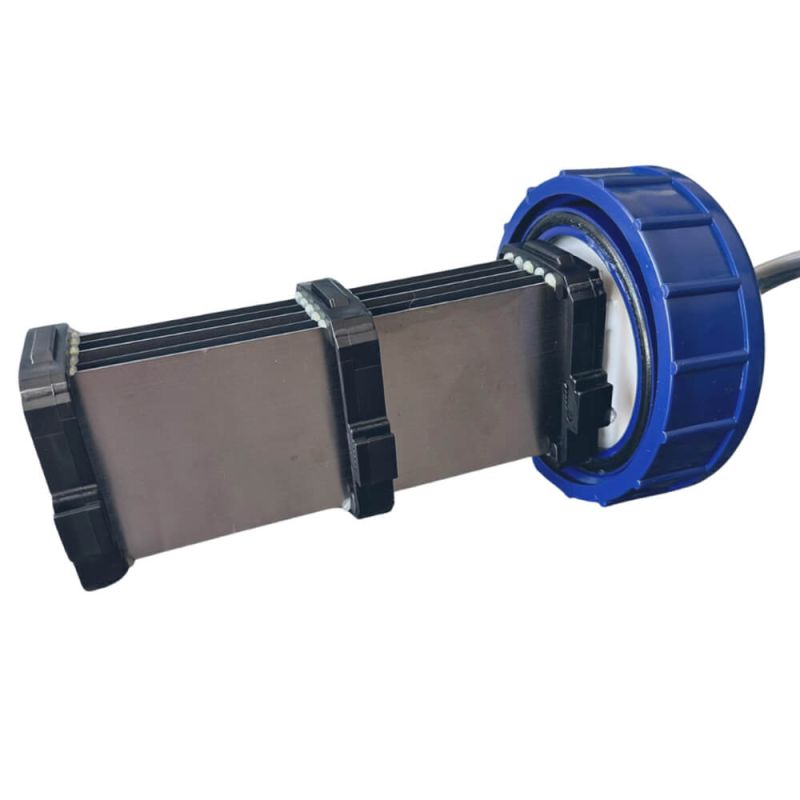

Saltmate SM90 Pool Chlorinator Cell w/ 'O' Ring, Lead (Genuine) - Chlorinator Spare Part

Saltmate SM Series Genuine Replacement Saltwater Chlorinator Cell

The Saltmate SM90 Genuine Replacement Salt Cell with Lead is a high-quality, Australian-made chlorinator cell designed for use with the Saltmate SM90 pool chlorinator. Crafted with premium-grade materials for maximum durability and output, this Saltmate electrolytic cell ensures effective and reliable pool sanitization.

The 3-plate solid cell design provides high output, while the included O-ring and leads make installation simple. With a long-lasting build and a 5-year pro-rata warranty, this replacement cell offers excellent performance and value, keeping your pool water clear, clean, and safe for swimming.

Features:

• Genuine Saltmate Replacement: Specifically manufactured for the Saltmate SM90 Pool Chlorinator for perfect compatibility and performance.
• Australian Made with Premium Materials: Constructed in Australia from high-grade materials for extended lifespan and high chlorine output.
• High Output Design: Efficient 3-plate solid construction ensures reliable and consistent chlorination.
• Easy Installation: Includes O-ring and leads for quick and straightforward setup.
• 5-Year Pro-Rata Warranty

Recommended Levels To Ensure Optimal Operation:

Pool chemistry should be tested at least once a week during summer months.

• Salt Level
  4000ppm - 6000ppm by weight with 5000ppm being ideal (never below 4000ppm). All Saltmate models are over-salt protected and can run with levels higher than 6000ppm (ie: sea water)
• Free Chlorine
  1.5ppm - 3.0ppm depending on the time of day, and period of time since the chlorinator has been running. Adjust by altering the chlorine output level or the operating hours. If levels have become too low manual super chlorination may be required.
• pH and Total Alkalinity
  A pH of 7.2 to 7.6 and a total alkalinity of 80ppm - 120ppm unless advised otherwise by your pool professional. Fibreglass pool suppliers usually recommend a pH of 6.9 to 7.2. To lower the pH and total alkalinity add hydrochloric acid, to raise the pH and total alkalinity add sodium bicarbonate. These levels may not be achievable with some water supplies.
• Stabiliser
  40-80ppm, pool stabiliser, also called cyanuric acid helps the chlorine produced to last longer. Without it in your water your chlorinator will need to run longer than it otherwise would. Hardness 100 to 250 ppm. Levels higher than the recommended level will result in a less efficient cell in regards to its chlorine production, a more frequent need for cleaning, and a chance the cell will fail prematurely. To minimise chances of high hardness levels minimise or avoid the use of chemicals containing calcium, especially, “Calcium Hardness” and calcium-based granular chlorine.

Technical Specifications:

Cleaning The Electrolytic Cell:

The Saltmate cell operates only efficiently when it is clean. A "dirty" electrode will have visible deposits of calcium and other matter built up.

SMT models should initially be inspected on a weekly basis to see the rate of calcium build up, this will determine the cleaning cycle necessary for your pool (generally monthly).
