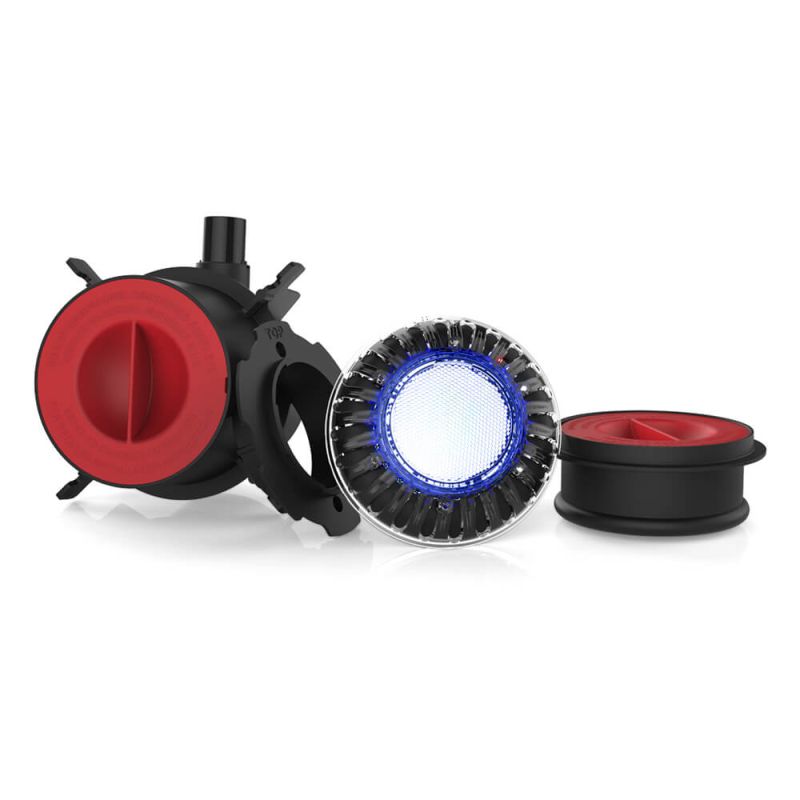

The Spa Electrics Atom EM Series Single Colour Pool Light provides exceptional brightness with your choice of vibrant blue or clean white illumination. Designed with German-engineered optics, this compact light ensures even distribution across the pool.
Engineered with DuoSink Heat Sink technology and durable, high-quality components, this light is built to withstand the demands of any pool environment. Its ultra-compact size allows it to fit seamlessly into tight spaces, while the patented detachable cable system simplifies installation and servicing. Fully compatible with major pool controllers, it offers flexibility and ease of use.
Manufactured in Australia, the Atom EM Series light combines cutting-edge technology with industry-leading durability to deliver exceptional performance for years to come.
Features:
- Single Colour LED Options. Choose between blue (465nm) or white (4000K) for a consistent ambiance.
- Compact Design. Ideal for steps, entries, and versatile installations.
- Energy Efficient. 12W power consumption for high brightness with low energy usage.
- High-Intensity Ceramic Light Engine (LED). Offers peak brightness and energy efficiency.
- Advanced Heat Sink Technology. DuoSink system ensures optimal performance and extended LED life.
- Patented Detachable Cable System. Simplifies installation and maintenance.
- Controller Compatibility. Seamlessly integrates with leading pool control systems.
Manual Mode Operation
Conecting to Pool/Lighting Controller
LED Colour Guide:
Multi Plus.
The All New Multi Plus from Spa Electrics represents a new generation in Multi Colour pool lighting.
With five different operating modes, the Multi Plus can operate via a standard wall switch or by using the iRIS lighting controller. The Multi Plus can also integrate seamlessly with most pool automation systems.
Along with this comes leading edge LED advancements with the introduction of an RGB+White LED array; providing beautifully clean white illumination and stunning colour shows never before seen in pool lighting.
Multi Colour.
With the Spa Electrics Multi Colour lighting range, the world is your oyster. With the freedom and flexibility to choose between 8 intense static colours and 2 mesmerising and seductive colour shows, all with the flick of a switch.
With industry leading continuous sync technology, the Spa Electrics Lights can sync with an endless number of lights in the same pool and even across different model lights in the Spa Electrics range.
All this combined with Spa Electrics colour memory feature providing simple one-touch operation for hassle free colour choice.
Single Colour.
The Spa Electrics Single Colour range is the essence of intense stunning pool lighting with a choice of 2 beautiful colours to compliment your pool or spa.
| LED Colour |
LED Array |
Wavelength |
Lumens |
| MULTI-PLUS |
RGB+B |
VARIES |
850lm |
| MULTI COLOUR |
RGB |
VARIES |
650lm |
| BLUE |
Blue |
460nm |
180lm |
| WHITE |
White |
4000k |
850lm |
Note: Dimming is available only on Multi Plus with iRIS Controller.
Technical Specifications:
| Light Source |
Ceramic Light Engine (LED) |
| Available Colours |
Multi Plus |
|
Multi Colour |
|
Single Colour - Blue (465nm), White (4000K) |
| Controller Compatibility |
Wall Switch Operation |
|
Spa Electrics iRIS Lighting Controller |
|
AstralPool Connect 10, Connect Lite/+, Halo Lite 2/4, Halo Hub, Astral Viron EQ Chlorinator |
|
Pentair IntelliTouch / EasyTouch, IntelliCentre |
|
Zodiac/Jandy RS/Z4 (F/W REV 'R'-Current), Zodiac Aqualink TRI/M8, Zodiac eXO iQ Chlorinator |
|
Hayward OmniLogic/OmniDirect/OmniHUB/Omni PL |
|
Dontek Aquatek |
|
INSNRG Vi Chlorinator |
|
Theralux Pool+ Manager |
| IP Rating |
IPX8 |
| Installation Types |
Concrete |
| Voltage |
12V AC |
| Wattage |
12W |
| Ambient Operating Temperature |
+5°C to +40°C |
| Usage |
Operating the light for AT LEAST 30 mins per week is advised. (All Year Round) |
| Compliance |
Tested and certified to applicable Australian standards |
| Warranty |
12 Month Manufacturers Warranty |
In The Box:
- 1 x EMC Blue Colour or White Colour Light
- 1 x Concrete Mounting Kit
Dimensions:
Frequently Asked Questions
Are Spa Electrics Atom EM pool lights compliant with Australian standards?
Yes. Spa Electrics Atom EM pool lights are developed for the Australian market and are tested and certified to applicable Australian standards. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do Atom EM pool lights need to be installed by an electrician?
Yes. Atom EM pool lights are permanently installed pool luminaires and must be installed by a suitably qualified person in accordance with AS/NZS 3000 (Wiring Rules) and local regulations.
Do Atom EM pool lights require a transformer?
Yes. Atom EM pool lights operate on low voltage and require a suitable 12V AC transformer rated for pool lighting. Some bundle options include a compatible transformer. Always refer to the product description to confirm what is included.
Can Atom EM pool lights be operated from a wall switch?
Yes. Atom EM pool lights can be operated from a standard wall switch. Operation varies by model, with single-colour (Blue/White) lights providing on/off control and Multi Plus models allowing colour selection via switch operation or compatible controllers. For more advanced control, Multi Plus models can also be used with the
iRIS Wi-Fi Lighting Controller to change colours, adjust brightness, and set schedules.
Are Atom EM pool lights compatible with pool controllers?
Yes. Atom EM pool lights are compatible with a range of lighting controllers and pool automation systems. Compatibility depends on the controller being used. Refer to the technical specifications or
contact us for confirmation.
Are Atom EM lights suitable for my application?
Yes. The Atom EM Series includes application-specific models: Atom EMC for concrete pools, Atom EMF for fibreglass pools, Atom EMV for vinyl pools, and Atom EMP for ponds, fountains, and water features. Select the correct Atom EM model and mounting kit to suit your installation.
How often should permanently installed pool lights be used?
Spa Electrics recommends operating pool lights for at least 30 minutes per week. Regular use helps reduce internal moisture build-up and supports long-term reliability.
