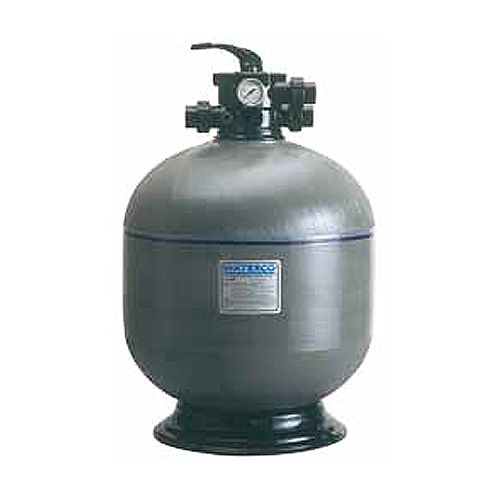

Waterco Micron ECO S602 Top Mount - Sand Filter - 24"

Designed with proven strength, durability and longevity

Product Description

Details

Waterco's Micron fibreglass filters are designed with proven strength, durability and longevity. Waterco filters are constructed from a blow moulded inner shell of fibreglass reinforced polyester resin over wound with fibreglass filament.

Waterco filters feature hydraulically efficient fish tail lateral systems which facilitates energy and water savings.

Micron Fibreglass Filters Micron filters operate on the basis of “depth filtration”; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter’s laterals and exit via the filter’s Multiport valve.

The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter’s Multiport lever from the “filter” position to the “backwash” position, which reverses the flow of water in the filter, flushing the filter bed.

Features:

  • Fiberglass winding technology
  • Depth filtration
  • Easier cleaning
  • Improved filtration and backwashing hydraulic efficiency
  • 50mm Multiport Valve
  • Max Water Flow Rate: 226 lpm
  • Reduced water flow resistance
  • 10 Year Tank Warranty with 1 Year Warranty on all the components

Note: Sand is not included.


Specifications

Specifications

SKU Waterco S602
Barcode 220251
Brand Waterco
Model Micron ECO S602
Product Type Sand Filter
Warranty 10 Year Tank, 1 Year Valve
Diameter (inches) 24
Max Flow rate (LPM) 226 lpm
Sand required (kg) 155 kg
Zeolite/Glass Required (kg) 127 kg
Plumbing 50mm
Multi Port Valve 50mm
Flow Rate (litres per minute) 226 lpm
