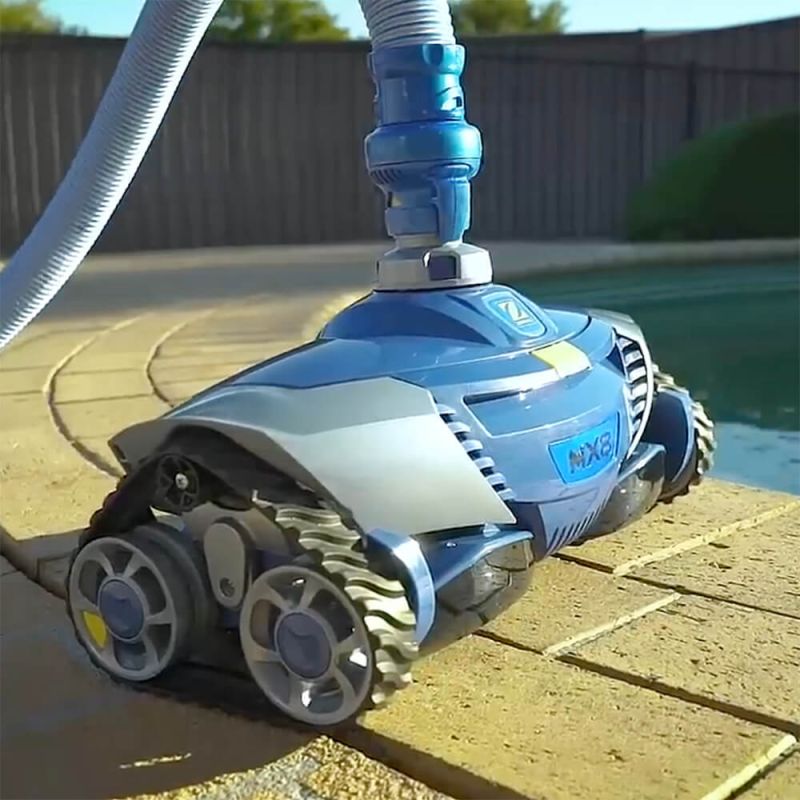

Ultra-Efficient Suction Pool Cleaning
Fed up with your "automatic" pool cleaner getting stuck? Is it leaving some areas of the pool untouched or not properly cleaned because it follows the hose or it is pushed by the flow?
Let Zodiac MX8 with X-Drive navigation technology get your entire pool, floor and walls, thoroughly cleaned with no fuss and no inconveniences.
Unlike suction pool cleaners, the Zodiac MX8 uses a sophisticated navigation technology to methodically drive around the pool floor and walls and cover the whole area. It can get in and out of the tightest spots with no fuss. It is fast, powerful, dependable and reliable.
Available exclusively from Pool & Spa Warehouse
The Zodiac MX8 MK2 is the latest version of the pool cleaner, released exclusively for Pool & Spa Warehouse, Australia's fastest-growing independent retailer of pool equipment.
Experience superior pool cleaning with the Zodiac MX8 MK2, featuring cutting-edge technology for powerful, efficient, and thorough cleaning. Designed to handle any pool shape or surface, the MX8 MK2 ensures total pool coverage, making it one of the most efficient and reliable suction pool cleaners on the market.
Benefits:
The MX8 cleans faster and more thoroughly than other pool cleaners, thanks to its advanced dual cyclonic vacuum technology. With enhanced suction power, a wider cleaning path, and the largest debris inlet in its class, the MX8 easily captures both large and small debris, ensuring no dirt is left behind.
Equipped with advanced dual navigation, the MX8 delivers the best pool coverage, cleaning the floor, walls, and waterline of any pool size or shape. Its pre-programmed X-Drive technology guarantees no hang-ups, providing methodical, thorough cleaning for your entire pool.
The MX8 automatically adjusts and controls excess flow, optimizing performance and extending the cleaner's longevity. This ensures efficient wall and floor cleaning, without placing unnecessary strain on your pool system.
The MX8 requires as little as 20 GPM of flow, making it the perfect choice for energy-conscious pool owners. It’s compatible with solar, 2-speed, and variable-speed pumps, making it the most energy-efficient cleaner in its class.
The rugged track design offers superior climbing ability and maneuverability. Equipped with notched, ridged caterpillar tracks, the MX8 ensures maximum traction and stability in all pool types, regardless of the surface coating.
Features:
-
Floor, Wall, and Waterline Cleaning
The Zodiac MX8 is designed to thoroughly clean the floor, walls, and waterline of your pool. Its advanced navigation system ensures complete coverage across all surfaces, regardless of the pool’s size or shape, delivering a deep clean in every centimeter.
-
Flex Power Turbine
At the core of the MX8 is the ultra-efficient Flex Power Turbine, which delivers maximum torque while operating at low flow rates, ensuring your pool system is not overburdened. Turbo aspiration, powered by a robust turbine and dual suction propellers, guarantees enhanced suction power for thorough cleaning.
-
User-Friendly Design
The MX8 is built for convenience, featuring an easy-grip handle for simple removal and transport. With one-click access to the motor, maintenance is quick and effortless. The patented Twist Lock hoses ensure watertight connections, eliminating suction loss and enhancing overall efficiency.
-
Optional Cyclonic Leaf Catcher – The Ultimate Accessory (Sold Separately)
Enhance your pool cleaning experience with the Cyclonic Leaf Catcher, the ultimate accessory for the Zodiac MX8. Using advanced cyclonic technology, it captures leaves and debris before they reach your skimmer, pump, or filter, ensuring uninterrupted suction and reducing strain on your pool system. It’s compatible with most suction pool cleaners, including the MX8, and features easy-connect fittings for quick installation. The large-capacity canister is easy to empty and clean, making maintenance hassle-free while boosting overall system efficiency.
Technical Specifications:
|
MX8 |
MX6 |
| Types of inground pools |
| Surfaces |
Concrete, pebblecrete, quartzon, fiberglass, vinyl, and tiles |
| Shapes |
Rectangular, Oval, Round & Free Form |
| Bottom Types |
Flat, Gentle Slope & Varying Slope |
Size |
For in-ground pools
Up to 12 x 6m |
For in-ground and above ground pools
Up to 9 x 6m |
| Performance |
| Cleaning areas |
Floor, walls and waterline |
Floor, walls |
| Recommended cleaning cycle |
6h in 2h cycles |
| Debris |
Best suited for large and small debris* |
Best suited for small and medium debris* |
| Drive Technology |
Flex Power Turbine |
| Navigation Control |
X-Drive Technology with X-Trax |
| Vacuum |
Dual Cyclonic |
Cyclonic |
| Cleaner Type |
Advanced Mechanical Suction |
| Ease of Use |
| Hose to Cleaner |
Quick Connector |
| Flow Regulator Valve |
✓ |
| Compatible with Low Flow Pumps |
✓ |
| Technical Specifications |
| Filtration capacity |
Pool filtering circuit |
| Minimum powered required for the filtering pump |
0.75HP |
| Hose length |
12 x 1m |
10 x 1m |
| Movement speed |
8 m / min |
| Theoretical cleaning with |
36 cm |
25 cm |
| Cleaner size (LxWxH) |
41 x 19 x 22 cm |
31 x 19 x 22 cm |
| Cleaner weight |
3.2 kg |
2.5 kg |
*Not suitable for long leaves i.e. palm leaves.
Warranty:
- 2 years
- 1 year on wearable parts (diaphragm, tracks and scrubbers)
Here are step-by-step instructions for installing an MX cleaner.
In The Box:
- 1 x Zodiac MX8 MK2 machine head (MK2 is the latest version of the pool cleaner, released exclusively for Pool & Spa Warehouse.)
- 1 x AD Flow Valve & Connector
- 1 x Universal Weir Cuff
- 1 x Flow Regulator Valve
- 11 x Twist-Lock Hose Section
- 1 x Leader Hose with Float
- 1 x 90 Degree Elbow
- 1 x Yellow Wheel Chip
- 1x Quick start manual
Frequently Asked Questions
Why is my MX8 MK2 not moving or moving very slowly?
The MX8 MK2 may not move or may move slowly if the water flow is too low, the filter system is dirty, or debris is caught in the engine. Check for blockages, clean your skimmer and pump baskets, and ensure the AD Flow Valve is correctly adjusted.
Why does my MX8 MK2 miss areas or fail to cover the entire pool?
Missed areas or incomplete coverage usually indicate insufficient flow, incorrect return line direction, or hose issues. Confirm correct wheel-speed timing, adjust the AD Flow Valve if needed, and ensure return fittings are pointed downward and not pushing the cleaner off course.
Why does my MX8 MK2 get stuck on steps or tight corners?
If the cleaner becomes stuck on steps or in tight corners, verify that both drive tracks periodically reverse. Check the swivel on the cleaner head for free movement, adjust the water flow if required, and review hose length to ensure it is not excessively long.
Why won’t the MX8 MK2 climb the pool walls properly?
Poor wall climbing can result from low flow, incorrect float positioning, or slippery pool surfaces. Check wheel-speed timing, confirm the float is correctly placed on the leader hose, and ensure the pool surface is free from algae or biofilm that can affect traction.
Why is the MX8 MK2 climbing too much or reaching above the waterline?
Excessive climbing typically indicates that the flow is too strong. Use the AD Flow Valve to reduce flow, confirm the wheel-speed timing is within the recommended range, and check that the hose and float positioning are correct to stabilise movement.
What should I do if the MX8 MK2 has poor suction or keeps losing vacuum?
Loss of suction can occur if there is air entering the system, a blockage in the cleaner, or a loose connection. Inspect the hose and fittings for air leaks, clean the filter system, and check for debris inside the engine. Ensure all Twist Lock hose connections are secure.
How do I check and adjust the water flow for proper MX8 MK2 operation?
To confirm correct water flow, time ten wheel rotations using the yellow marker. The correct range is 20–25 seconds. If the timing is slower than 26 seconds, the flow is too low and the AD Flow Valve should be increased. If the timing is faster than 19 seconds, the flow is too strong and the valve should be reduced until the timing falls within the 20–25 second range.
How often should I clean or backwash the pool filter when using the MX8 MK2?
Regular cleaning or backwashing of your filtration system is essential for consistent performance. Always disconnect the cleaner before backwashing, and allow the pump to run for at least three minutes to flush the suction lines before reconnecting it.
What should I do if debris gets stuck inside the MX8 MK2 engine?
If debris is lodged inside the engine, open the top lid, rotate the engine paddles gently, and remove the obstruction. Ensure the tracks can move freely while you rotate the paddles, then close the lid until it latches securely before returning the cleaner to the pool.
When should I remove the inlet throat adaptor, and how does it affect performance?
The inlet throat adaptor should be removed if the cleaner struggles with larger debris or if the throat is clogging frequently. Removing it increases the inlet size, allowing the MX8 MK2 to pass larger leaves or debris more effectively while still maintaining good suction.
How do I correctly assemble and size the hose for my pool?
Assemble the hose by connecting standard sections from the skimmer to the furthest point of the pool, then add the leader hose. The total hose length should reach the furthest point comfortably without excessive slack or tension.
Why is the MX8 MK2 hose tangling, coiling, or affecting navigation?
Hose tangling usually indicates that hose sections were stored coiled or that the return flow is pushing the hose. Lay the hoses straight in the sun to relax any memory, check that sections are connected in the correct order, and ensure return fittings are not directing strong currents at the hose.
What return flow direction is recommended to prevent the MX8 MK2 from being pushed off course?
Return outlets should be directed downward and either toward each other or toward the centre of the pool. This helps prevent strong surface currents from pushing the MX8 MK2 or its hose, allowing the cleaner to follow its programmed movement pattern.
Is it safe to leave the MX8 MK2 in the pool during chemical treatments?
The cleaner should be removed from the pool before adding chemicals, performing super-chlorination, or carrying out shock treatments. Wait at least four hours after super-chlorination and ensure the water chemistry has returned to normal operating levels before reinstalling the cleaner.
How should I remove the MX8 MK2 from the pool to avoid damage?
Always detach the cleaner head from the leader hose before lifting it out of the water. Use the handle to lift the cleaner vertically until it drains, then remove it fully from the pool. This reduces strain on the swivel and hose connections and helps prolong the life of the cleaner.
How do I know if the AD Flow Valve setting is correct for my pool?
The AD Flow Valve setting is correct when the wheel-speed timing falls within 20–25 seconds for ten wheel rotations and the cleaner is covering the pool without climbing excessively or stalling. If performance is poor or behaviour is unstable, adjust the valve and re-check the timing until it is within the recommended range.
