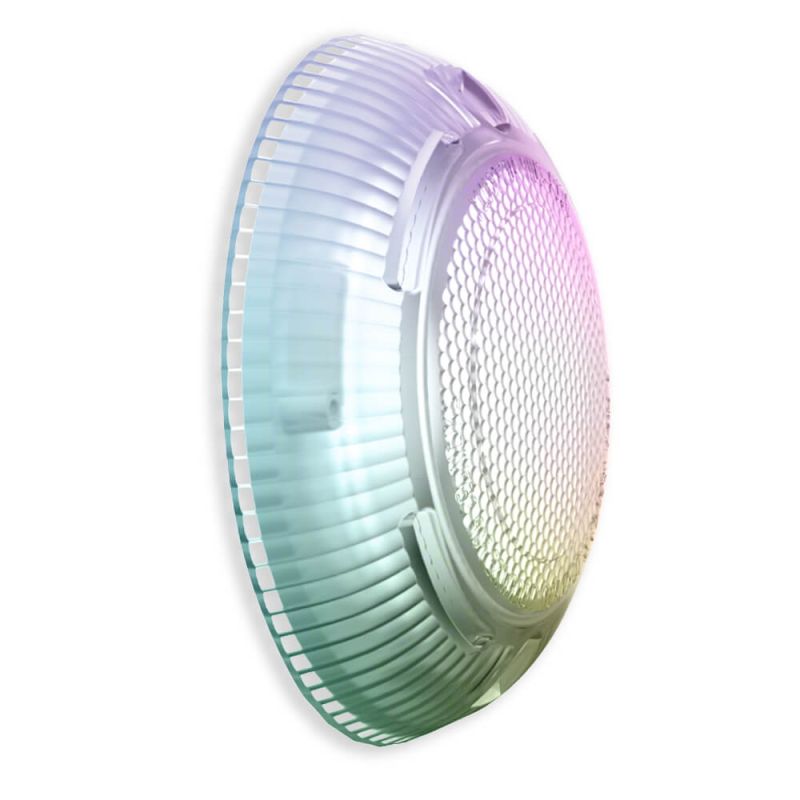

Aqua-Quip EvoFG Series LED Retro-Fit Pool Light for Lumascape Concrete (1 Screw Mount)
The Aqua-Quip EvoFG Series PRO RGB+W LED Retro-Fit Pool Light is designed to seamlessly replace the existing Lumascape Concrete (1 Screw Mount) pool lights, providing an energy-efficient, high-performance lighting solution. With a sleek, low-profile design and multiple LED options, this retro-fit light is perfect for transforming the ambiance of your pool, while ensuring easy installation and long-lasting performance.
The EvoFG Series LED light is compatible with your existing pool wiring and controller (provided it meets specifications), allowing for easy retrofitting and operation. Available in four LED color options: Blue, White, PRO RGB+W, and Multi RGB, it offers customizable lighting to match your pool's aesthetic.
Note: This retro-fit light suits Lumascape lights mounted using one screw only. If the existing Lumascape light is mounted using two screws, refer to the Aqua-Quip Evo2 Series PRO RGB+W LED Retro-Fit Niche Mount Pool Light for Lumascape Concrete (2 Screw Mount).
Features:
- Easy Retro-Fit Installation: Designed to replace Lumascape concrete pool lights without the need for additional rewiring or new controllers*.
- Multi-Colour Illumination: Aqua-Quip’s Colour Selection Palette offers infinite lighting options and programming modes.
- Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
- Energy-Efficient Design: Low power consumption paired with a long lifespan.
- Flush-Mounted Design: Low-profile, flush-mounted niche light with minimal wall protrusion (29mm).
- Durable Build: IPX8-rated for reliable underwater operation up to 2 meters deep.
- Simple Connectivity: Includes a Plug Kit and Mounting Hardware (where applicable) for hassle-free installation.
- Compatibility: Works with Aqua-Quip InstaTouch Smart Lighting Controller (sold separately) for advanced control, including color settings and dimming features.
(*) Ensure your existing transformer has a 12Vac output and at least 25VA power rating.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Note: Dimming is available when used with compatible controllers.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Multi RGB |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Retro-Fit |
Lumascape Concrete (1 Screw Mount) |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.
In The Box:
- 1 x EvoFG PRO RGB+W LED Light (Retro-Fit for Lumascape Concrete One Screw Mount)
- 1 x Plug Kit
- 1 x Mounting Hardware (where applicable)
