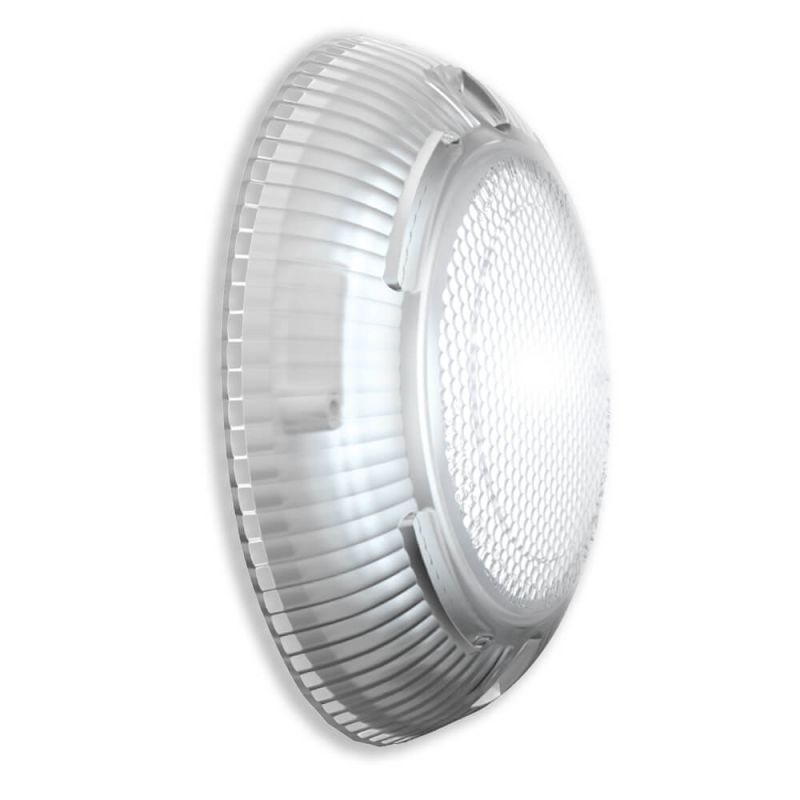

Aqua-Quip EvoFG Series LED Retro-Fit Pool Light for Lumascape Concrete (1 Screw Mount)
The Aqua-Quip EvoFG Series White Colour LED Retro-Fit Pool Light is designed to seamlessly replace the existing Lumascape Concrete (1 Screw Mount) pool lights, providing an energy-efficient, high-performance lighting solution. With a sleek, low-profile design and multiple LED options, this retro-fit light is perfect for transforming the ambiance of your pool, while ensuring easy installation and long-lasting performance.
The EvoFG Series LED light is compatible with your existing pool wiring and controller (provided it meets specifications), allowing for easy retrofitting and operation. Available in four LED color options: Blue, White, PRO RGB+W, and Multi RGB, it offers customizable lighting to match your pool's aesthetic.
Note: This retro-fit light suits Lumascape lights mounted using one screw only. If the existing Lumascape light is mounted using two screws, refer to the Aqua-Quip Evo2 Series White Colour LED Retro-Fit Niche Mount Pool Light for Lumascape Concrete (2 Screw Mount).
Features:
- Easy Retro-Fit Installation: Designed to replace Lumascape concrete pool lights without the need for additional rewiring or new controllers*.
- Brilliant White Illumination: Emits >5000K bright white light for clear pool lighting.
- Extra Low Voltage Supply: Operates at 12V AC for maximum safety and compliance.
- Flush-Mounted Design: Low-profile, flush-mounted niche light with minimal wall protrusion (29mm).
- Durable Build: IPX8-rated for reliable underwater operation up to 2 meters deep.
- Simple Connectivity: Includes a Plug Kit and Mounting Hardware (where applicable) for hassle-free installation.
- Compatibility: Works with Aqua-Quip InstaTouch Smart Lighting Controller (sold separately) for advanced control, including color settings and dimming features.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
(*) Ensure your existing transformer has a 12Vac output and at least 25VA power rating.
LED Colour Guide:
Multi-Colour pool lights are suitable to be controlled from either a wall switch or from the Lighting Controller.
|
Multi-Colour |
Blue |
White |
Warm White |
| Power Consumption |
20 VA Max |
11 VA |
11 VA |
11 VA |
| Light Colour |
Program Dependant |
475 nm |
>5000K |
3000K |
| Light Output (typical) |
Up to 380 lm |
180 lm |
550 lm |
550 lm |
Note: Dimming is available when used with compatible controllers.
Technical Specifications:
| Available Colours |
PRO RGB+W |
|
Multi RGB |
|
Blue |
|
White |
| Retro-Fit |
Lumascape Concrete (1 Screw Mount) |
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%,-20% |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
Power Consumption
(Fixed Colour LEDs) |
White, blue and green = 8 VA |
Power Consumption
(Multi-Colour LEDs) |
Spectrum III Multi Colour = 16 VA maximum |
| Fault Protection |
Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
Note: Each Retro-Fit light is supplied with a Plug Kit for connection using existing cables, and with mounting hardware where appropriate. If the new Aqua-Quip retro-fit light is to be operated from an existing pool lighting controller, specify the controller type when ordering. When re-using an existing transformer, ensure it has 12Vac output and at least 25VA power rating.
In The Box:
- 1 x EvoFG White LED Light (Retro-Fit for Lumascape Concrete One Screw Mount)
- 1 x Plug Kit
- 1 x Mounting Hardware (where applicable)
Frequently Asked Questions
Are Aqua-Quip EvoFG Retro-Fit pool lights compliant with Australian standards?
Yes. Aqua-Quip EvoFG Retro-Fit pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do EvoFG Retro-Fit pool lights need to be installed by an electrician?
EvoFG Retro-Fit lights are extra-low voltage pool luminaires. Installation requirements vary by state and territory, and installation should be carried out by a suitably qualified person in accordance with local regulations and the manufacturer’s instructions. If any mains-voltage wiring is involved (such as a transformer that is hardwired to the supply), that electrical work must be completed by a licensed electrician in accordance with AS/NZS 3000 (Wiring Rules).
Do EvoFG Retro-Fit pool lights require a transformer?
Yes. EvoFG Retro-Fit lights operate on 12V AC and require a suitable isolation transformer. Existing transformers may be reused provided they have a 12V AC output and a minimum power rating of 25VA. Always confirm transformer condition and rating before installation.
What pool lights are EvoFG Retro-Fit models designed to replace?
EvoFG Retro-Fit lights are designed to replace a wide range of existing fibreglass and concrete pool lights from major manufacturers. Confirm the existing light type and mounting arrangement before purchase, or refer to the
Aqua-Quip Evo Series Retro Fits Guide for detailed compatibility information.
Can EvoFG Retro-Fit pool lights be operated from a wall switch?
Yes. EvoFG Retro-Fit pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller.
Are EvoFG Retro-Fit lights compatible with pool controllers and automation systems?
Yes. EvoFG Retro-Fit multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. If reusing an existing controller, ensure compatibility before purchase, or refer to the
Aqua-Quip Controller Compatibility for Multi-Colour Lights for guidance.
What colour options are available in the EvoFG Retro-Fit range?
The EvoFG Retro-Fit range is available in fixed-colour options (blue and white), Multi RGB, and Multi-Colour PRO RGB+W. Multi-colour models provide a wide range of colours and lighting effects, depending on the selected program and controller compatibility.
Does the EvoFG Retro-Fit use a plug connection?
Yes. EvoFG Retro-Fit lights are supplied with a Plug Kit, allowing connection to existing pool light cables for simpler installation and easier servicing.
What is included with EvoFG Retro-Fit pool lights?
EvoFG Retro-Fit lights are supplied as a complete retro-fit solution, including the LED light, plug kit, and mounting hardware where applicable.
