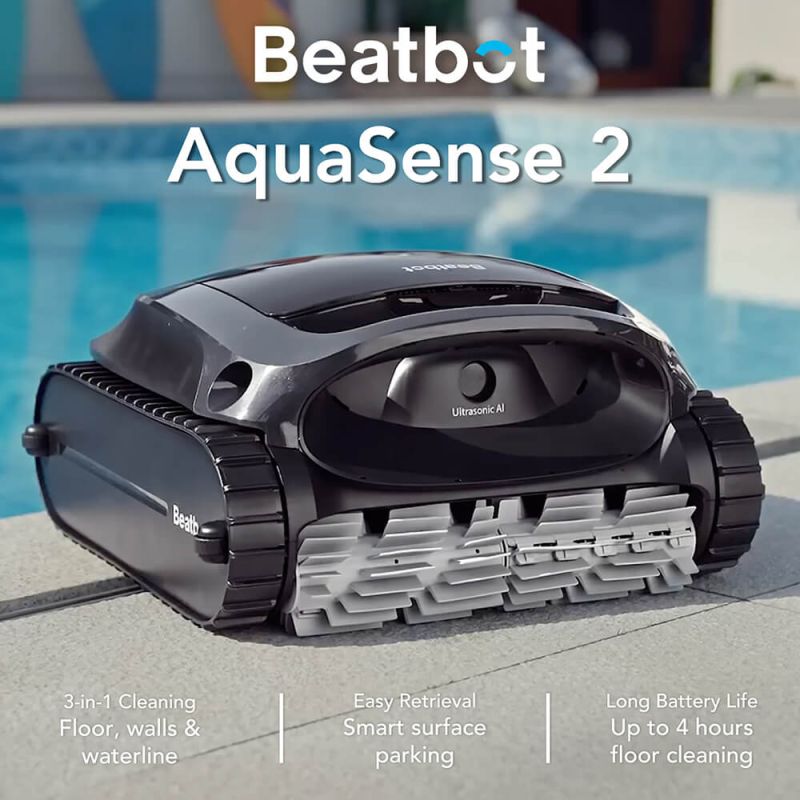

AquaSense 2 |
AquaSense 2 Pro |
AquaSense 2 Ultra |
| General Information |
| Pool Type |
Above-ground & In-ground pools |
| Pool Shape |
All shapes: rectangular, round, kidney, freeform |
| Pool Materials |
Concrete, tiled, vinyl, fibreglass, pebble |
| Recommended Pool Size |
300 m² |
360 m² |
360 m² |
| Performance |

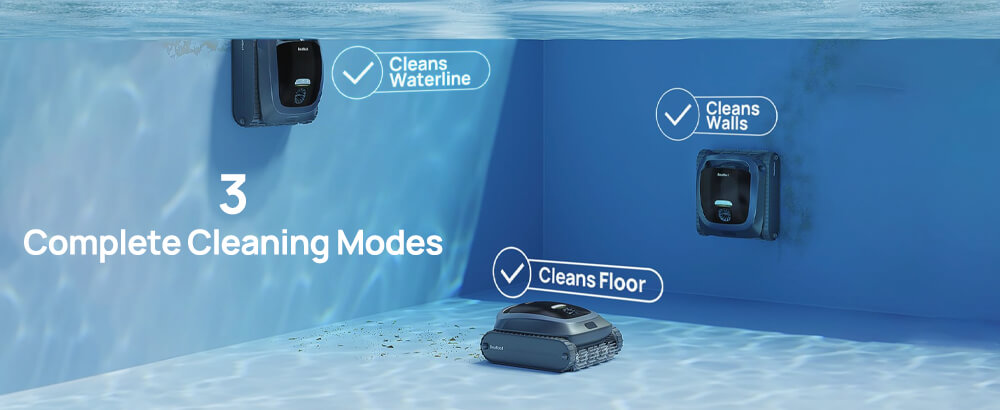

| Cleaning Coverage Areas |

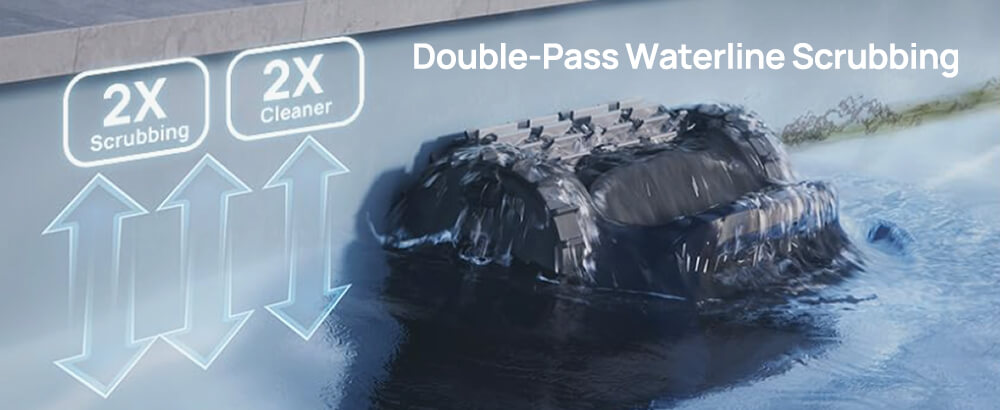

Floor, Walls, Waterline |
Floor, Walls, Waterline, Water surface |
Floor, Walls, Waterline, Water surface |
| ClearWater™ Clarifying Technology |
— |
✓ |
✓ |
| HybridSense™ Mapping with AI Camera |
— |
— |
✓ |
| AI-Powered Cruise Debris Detection |
— |
— |
✓ |

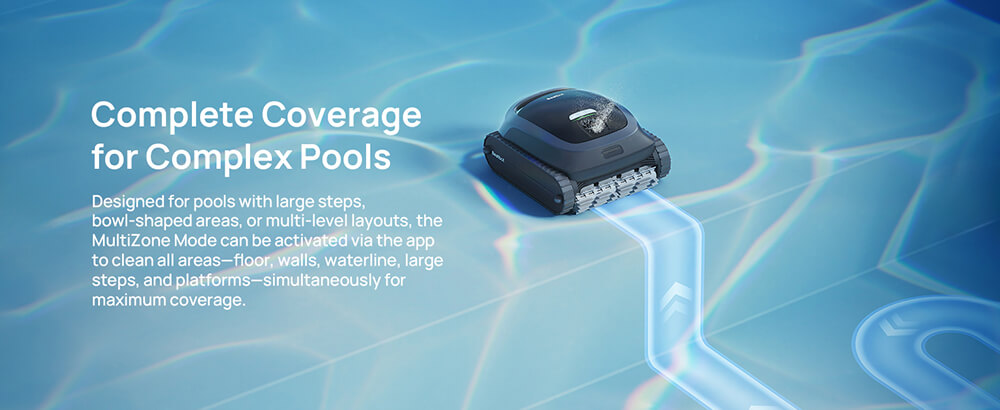

| MultiZone Mode / Elevated Platform Cleaning |
✓ (elevated platform cleaning via MultiZone) |
| SonicSense™ Ultrasonic Sensors |
✓ |
✓ |
✓ |
| CleverNav™ Smart Navigation System |

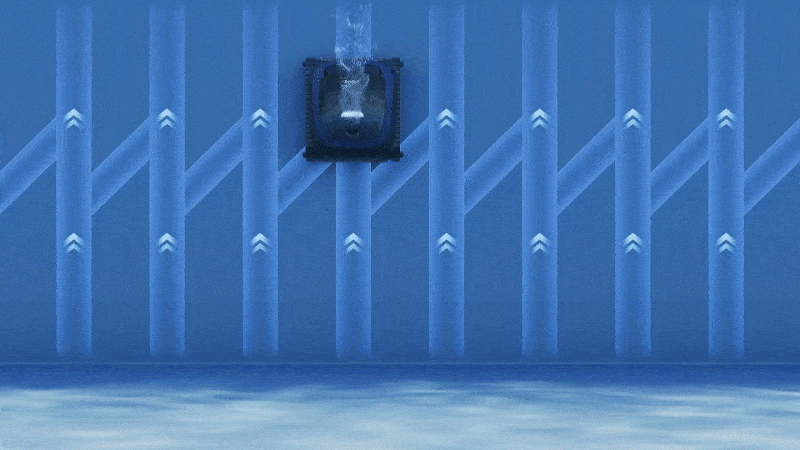

✓ S-shape: Floor; N-shape: Walls/Waterline |
✓ S-shape: Floor/Surface; N-shape: Walls/Waterline |
✓ S-shape: Floor/Surface; N-shape: Walls/Waterline |
| Obstacle Detection & Self-Extrication |
✓ |
✓ |
✓ |
| Manual Remote Navigation Control |
— |
✓ (via app / surface only) |
✓ (via app / surface only) |

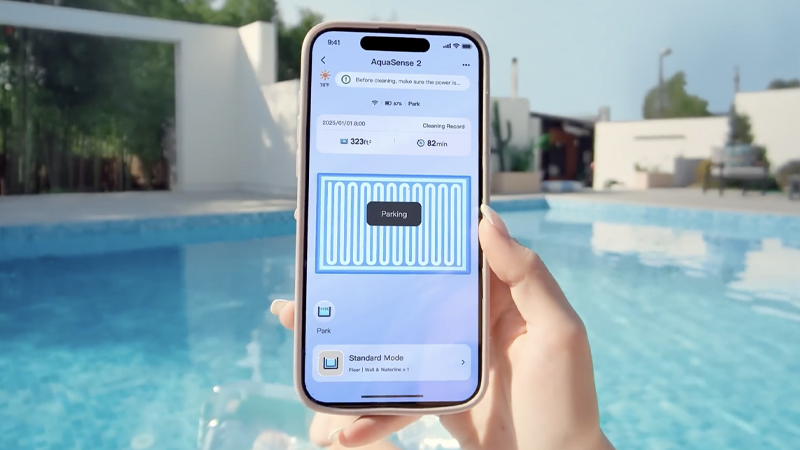

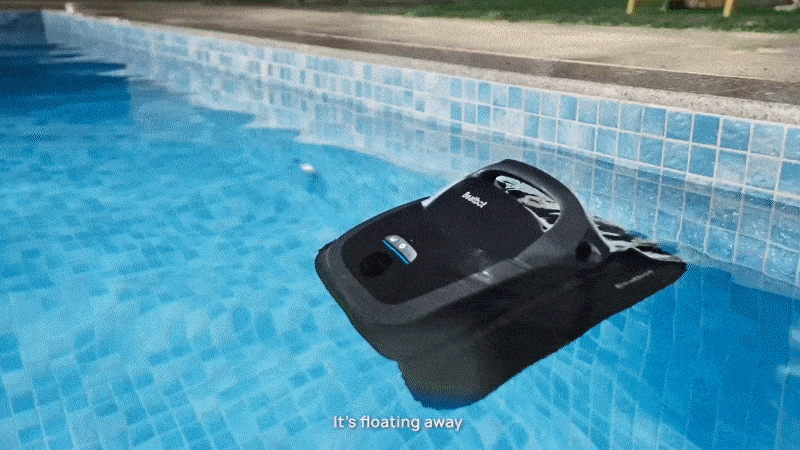

| App Parking (Above-Water) |
✓ |
✓ |
✓ |

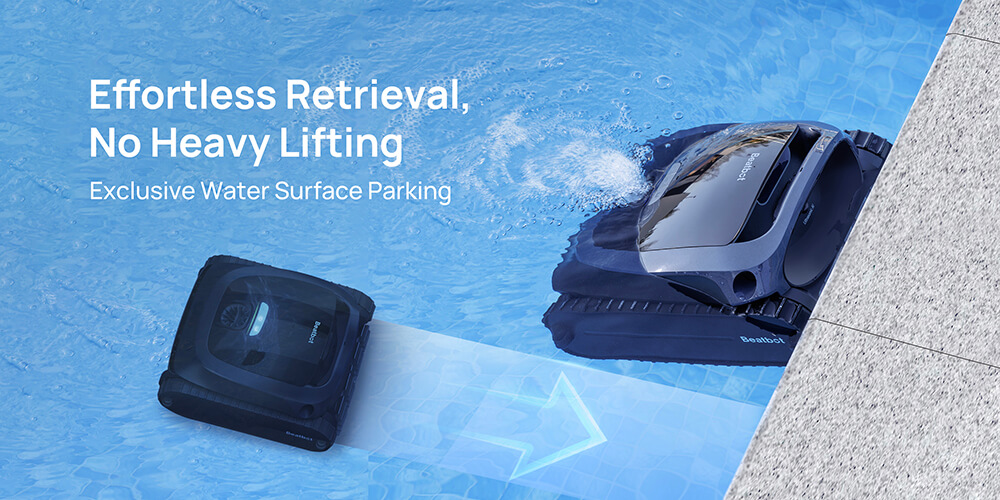

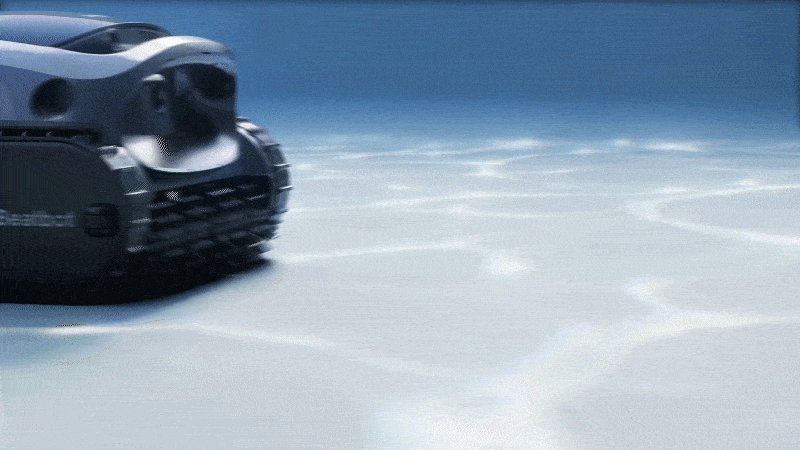

| Water-Surface Parking |
✓ |
✓ |
✓ |
| SmartDrain™ Automatic Water Release |
✓ |
✓ |
✓ |
| Voice Broadcast |
— |
— |
✓ |
| Cleaning Records |
✓ |
✓ |
✓ |
| Environment & Water Temperature |
— |
✓ |
✓ |

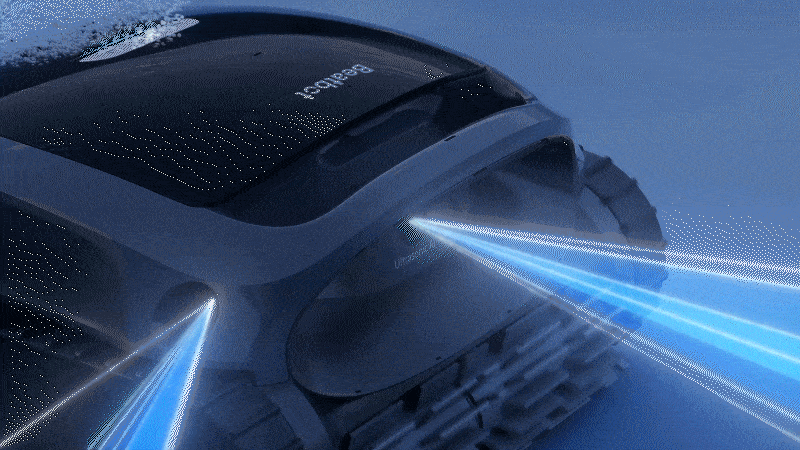

| Navigational Sensors |
16 precision sensors (incl. ultrasonic) |
22 sensors (incl. ultrasonic) |
27 sensors (AI camera, ultrasonic & IR) |
| Cleaning Modes |
4 Modes: Floor; Standard (floor/walls/waterline); Area; MultiZone |
6 Modes: Floor; Standard (floor/walls/waterline); Pro (incl. surface); ECO; Area; MultiZone |
6 Modes: Floor; Standard (floor/walls/waterline); Pro (incl. surface); ECO; Area; MultiZone |
| Waterline Parking |
✓ |
✓ |
✓ |
| Cleaning Power & Filtration |
| Motors |
4 |
9 |
11 |

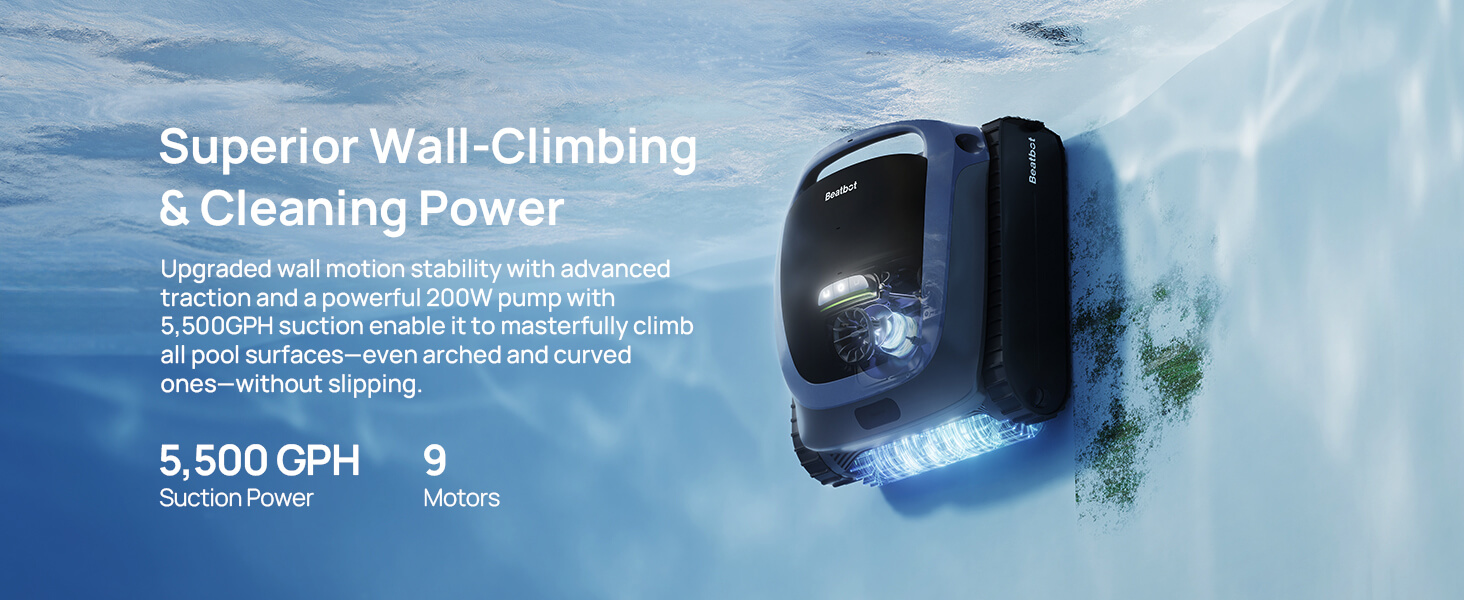

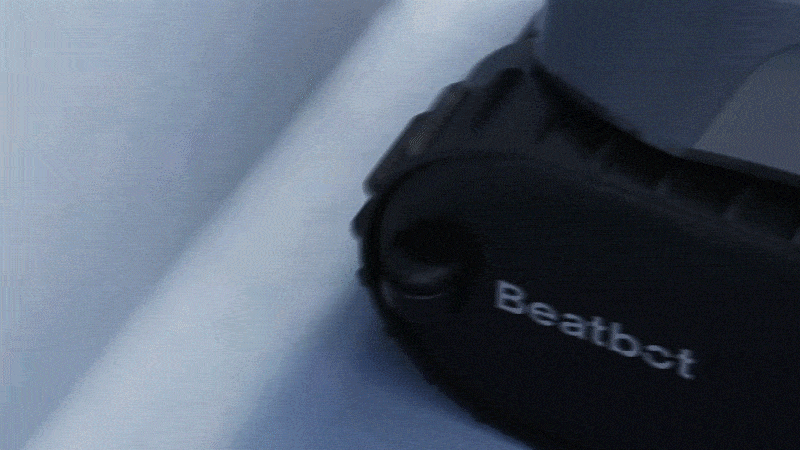

| Suction Power |
20,800 LPH |

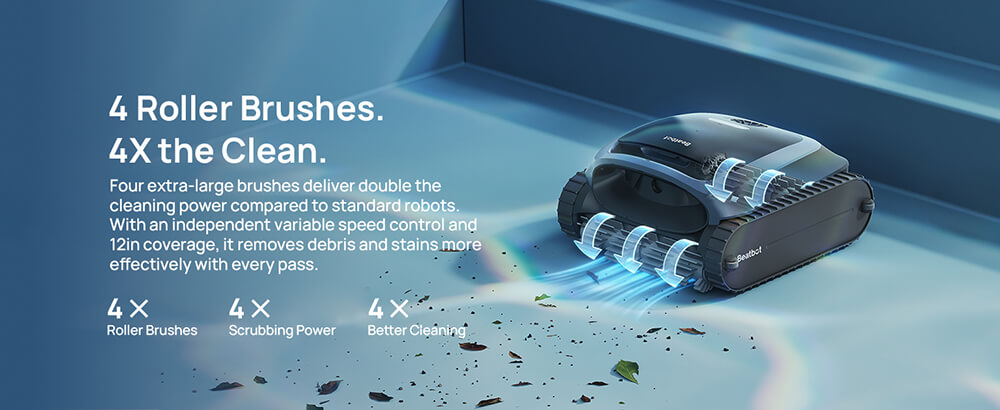

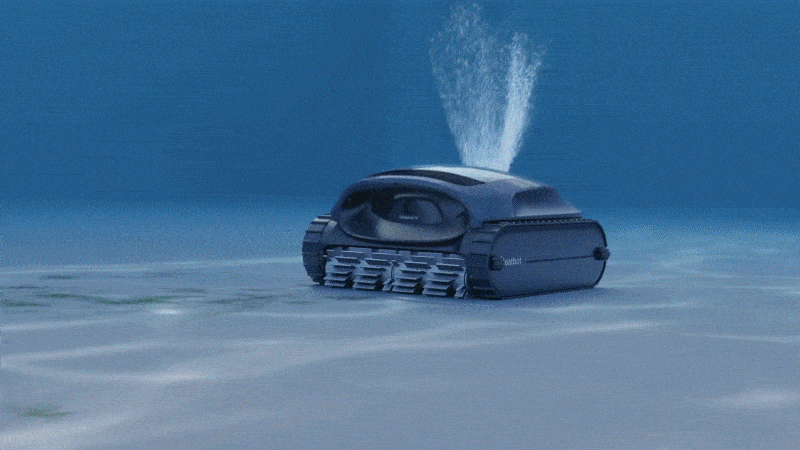

| Brushes |
4 bottom roller brushes (dual-group, differential speed) |
4 bottom roller brushes (dual-group) + 1 front roller |
4 bottom roller brushes + 1 front roller + 2 side brushes |
| Number of Suction Ports |
1 (bottom) |
2 (top-front & bottom) |
2 (top-front & bottom) |

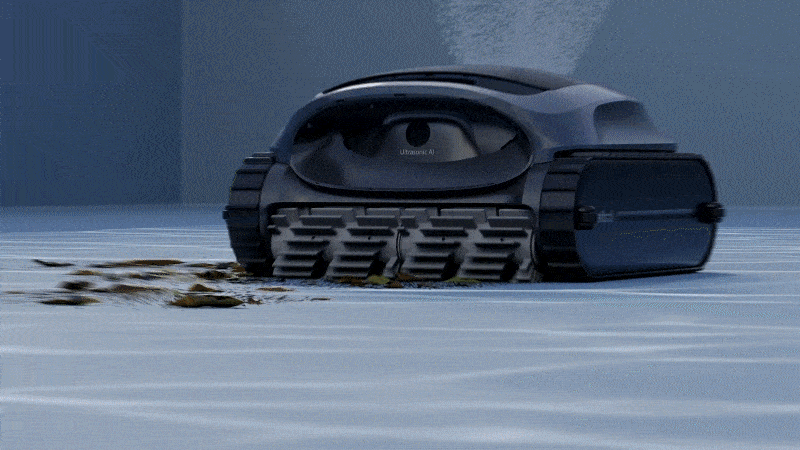

| Filter Type |
Polyester |
| Filter Access |
Top access |
| Filtration Layers |
1 layer |
2 layers (outer/inner) |
2 layers (outer/inner) |

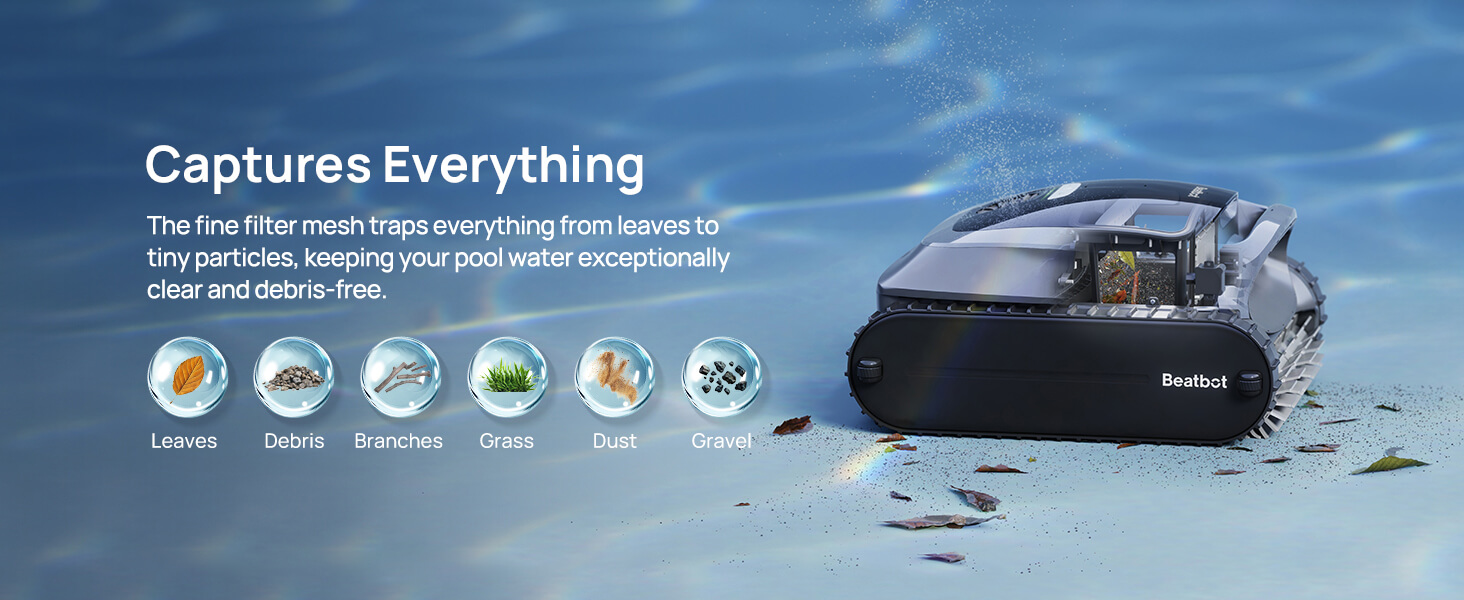

| Filtration Density |
150 μm |
150 μm (outer) / 250 μm (inner) |
150 μm (outer) / 250 μm (inner) |
| Filter Basket Capacity |
2 L |
3.7 L (outer) / 3.5 L (inner) |
4.0 L (outer) / 3.7 L (inner) |
| Advanced Technology, OS & Connectivity |
| Hardware Components |
Quad-core Cortex-A7 1.8 GHz CPU; MCU; DDR RAM; flash; 16 smart sensors (dual IMU & dual ultrasonic) |
Quad-core Cortex-A7 1.8 GHz CPU; MCU; DDR RAM; flash; 22 smart sensors |
Quad-core Cortex-A7 1.8 GHz CPU; MCU; DDR RAM; flash; 27 smart sensors (AI camera w/ dual TOF, 2 IR, 4 ultrasonic) |
| Operating System |
Beatbot OS |

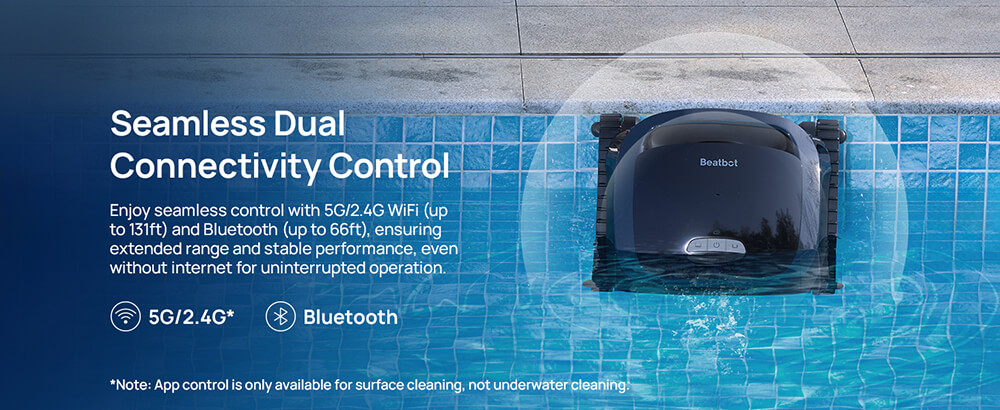

| Connectivity |
Dual connectivity – 5G/2.4G Wi-Fi + Bluetooth |
| App Integration / OTA Updates |
Beatbot App with cleaning records & OTA performance updates |
| Battery |
| Runtime |
Up to 4 hours (floor); Up to 3.5 hours (walls & waterline) |
Up to 5 hours (floor); Up to 5 hours (walls & waterline); Up to 11 hours (surface) |
Up to 5 hours (floor); Up to 5 hours (walls & waterline); Up to 10 hours (surface) |
| Battery Capacity & Type |
10,000 mAh Lithium-ion |
13,400 mAh Lithium-ion |
13,400 mAh Lithium-ion |
| Charging Time |
Approx. 4 h (88 W quick charge) |
Approx. 4.5 h (88 W quick charge) |
Approx. 4.5 h (88 W quick charge) |
| Charging Method |
Wireless Dock Charging Station |
| Design |

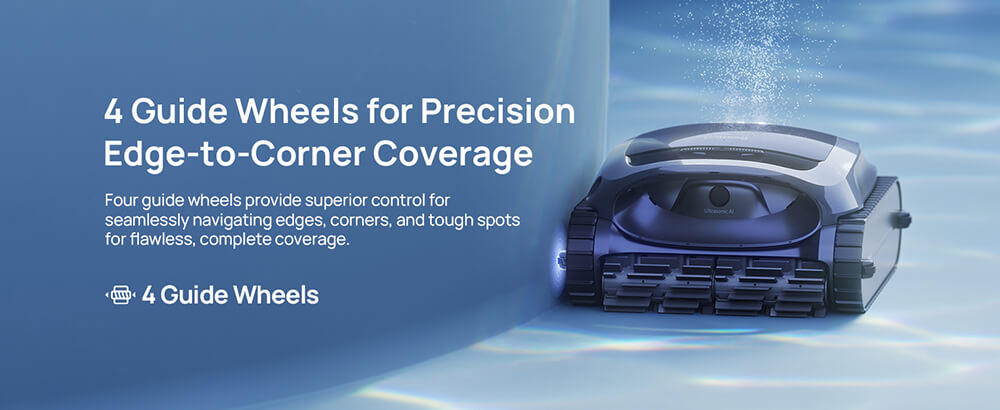

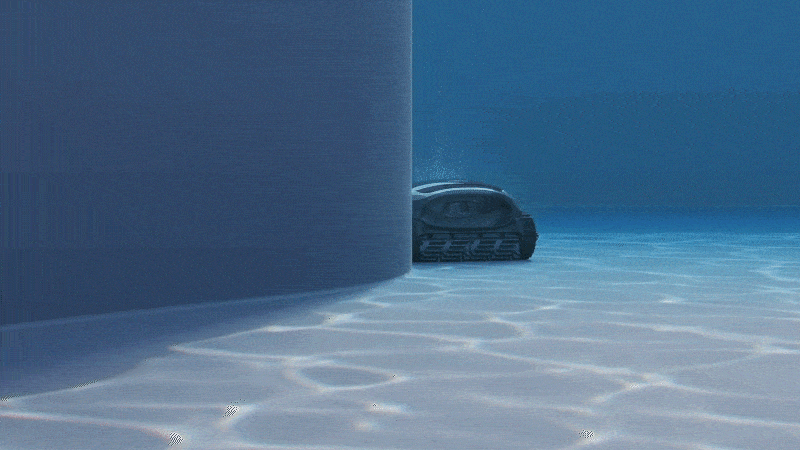

| Guidance Wheels |
4 |
4 |
6 |
| Control Buttons |
1 power switch key + 2 mode keys |
1 power switch key + 4 mode keys |
1 power switch key + 4 mode keys |
| Status Display |
LED strip + button light |
LED strip + button light |
LED strip + button light + voice broadcast |
| Overall Robot Weight |
10.47 kg |
11.38 kg |
13.2 kg |
| Overall Robot Dimensions (L×W×H) |
451 × 435 × 233 mm |
452 × 434 × 267 mm |
454 × 439 × 278 mm |

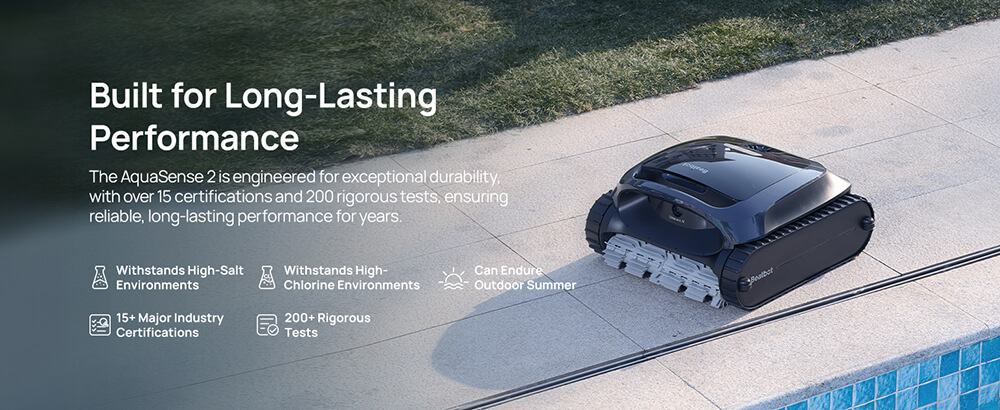

| Reliability |
| Waterproof Protection |
IP68 (robot), IP54 (charging dock) |
| Recommended Water Depth |
0.5 m – 3 m |
