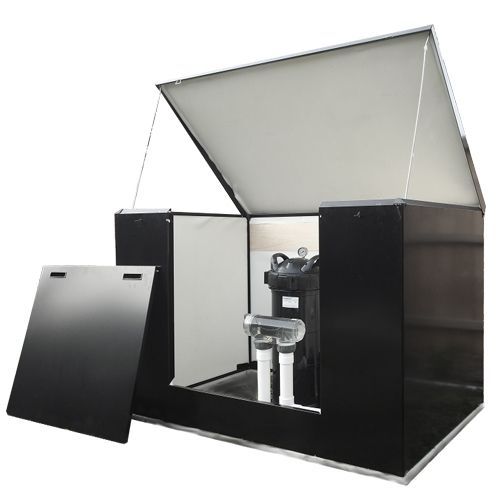

The Acoustic Box is a soundproof enclousure, specifically designed for swimming pool equipment. It has a unique state-of-the art design which requires less than 5 minutes to assemble and no special tools are required. The box is available in different sizes and colours.
Benefits:
- Soundproof. lined with high quality thick sound proofing foam for 70-80% reduction in noise levels.
- Easy to assemble. No nuts, bolts or screws, only 3 different parts which click together in just a few minutes
- Superior Design. Industrially engineered to provide enhanced sturdiness, yet lighter than other models on the market. Internal space and easy access. Thick (0.9mm) galvanised steel. Ventilation gaps allow for air circulation without any water leaks. Quality thick powder coating finish.
- Complies with council sound proofing and other structural requirements in all states.
- 100% Australian made, owned and designed.
Features:
- Unique design which simply 'clips' together. It takes less than 15 minutes to assemble.
- Structurally stronger. Denser Acoustic foam.
- Unhindered access across the front. No need to 'duck' under a bar when servicing the equipment.
The top lid sits on mechanical gas struts. Lift them, and keep them, up at any height level with just one finger. - Top-quality, thick, 100% Australian-made galvanized steel. Engineered to withstand the test of time.
- Thick powder coating. Made in-house to guarantee its superb quality.
- Ventilation gaps that allow for wirings and conduits in and out of the box
Weight:
- Approximately 60kg
- Designed to fit one large filter, motor / pump and chlorinator
The enclosure also includes a dressed pine timber panel along the rear panel.
Available Colors:
Dimensions:
- Width: 1650 / 1600 (External / Internal)
Available Sizes:
| Enclosure Size | Standard Design | Backless Design |
| 660mm Depth x 900mm Height | External: 660(D) X 900(H) Internal: 610(D) X 855(H) |
External: 710(D) X 900(H) Internal: 685(D) X 855(H) |
| 660mm Depth x 1145mm Height | External: 660(D) X 1145(H) Internal: 610(D) X 1100(H) |
External: 710(D) X 1145(H) Internal: 685(D) X 1100(H) |
| 660mm Depth x 1345mm Height | External: 660(D) X 1345(H) Internal: 610(D) X 1300(H) |
External: 710(D) X 1345(H) Internal: 685(D) X 1300(H) |
| 900mm Depth x 900mm Height | External: 900(D) X 900(H) Internal: 845(D) X 855(H) |
External: 950(D) X 900(H) Internal: 925(D) X 855(H) |
| 900mm Depth x 1145mm Height | External: 900(D) X 1145(H) Internal: 850(D) X1100(H) |
External: 950(D) X 1145(H) Internal: 925(D) X1100(H) |
| 900mm Depth x 1345mm Height | External: 900(D) X 1345(H) Internal: 850(D) X 1300(H) |
External: 950(D) X 1345(H) Internal: 925(D) X 1300(H) |
| 900mm Depth x 1845mm Height | External: 1100(D) X 1845(H) Internal: 1050(D) X 1800(H) |
External: 1150(D) X 1845(H) Internal: 1125(D) X 1800(H) |
| 1100mm Depth x 900mm Height | External: 1100(D) X 900(H) Internal: 1050(D) X 855(H) |
External: 1150(D) X 900(H) Internal: 1125(D) X 855(H) |
| 1100mm Depth x 1145mm Height | External: 1100(D) X 1145(H) Internal: 1050(D) X1100(H) |
External: 1150(D) X 1145(H) Internal: 1125(D) X1100(H) |
| 1100mm Depth x 1345mm Height | External: 1100(D) X 1345(H) Internal: 1050(D) X1300(H) |
External: 1150(D) X 1345(H) Internal: 1125(D) X1300(H) |
| 1100mm Depth x 1845mm Height | External: 1100(D) X 1845(H) Internal: 1050(D) X 1800(H) |
External: 1150(D) X 1845(H) Internal: 1125(D) X 1800(H) |
| 1350mm Depth x 900mm Height | External: 1350(D) X 900(H) Internal: 1300(D) X 855(H) |
External: 1400(D) X 900(H) Internal: 1350(D) X 855(H) |
| 1350mm Depth x 1145mm Height | External: 1350(D) X 1145(H) Internal: 1300(D) X 1100(H) |
External: 1400(D) X 1145(H) Internal: 1350(D) X 1100(H) |
| 1350mm Depth x 1345mm Height | External: 1350(D) X 1345(H) Internal: 1300(D) X 1300(H) |
External: 1400(D) X 1345(H) Internal: 1350(D) X 1300(H) |
| 1350mm Depth x 1845mm Height | External: 1350(D) X 1845(H) Internal: 1300(D) X 1800(H) |
External: 1400(D) X 1845(H) Internal: 1375(D) X 1800(H) |
| SKU | XY-M |
|---|---|
| Warranty | 7 Years |
| Brand | The Acoustic Box |
| Model | XY-M |
| Product Type | Pool Accessory |
| Shipping Type | Bulky - Extra Large |
