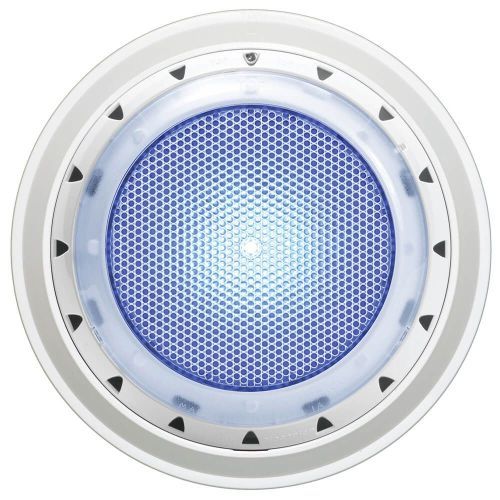

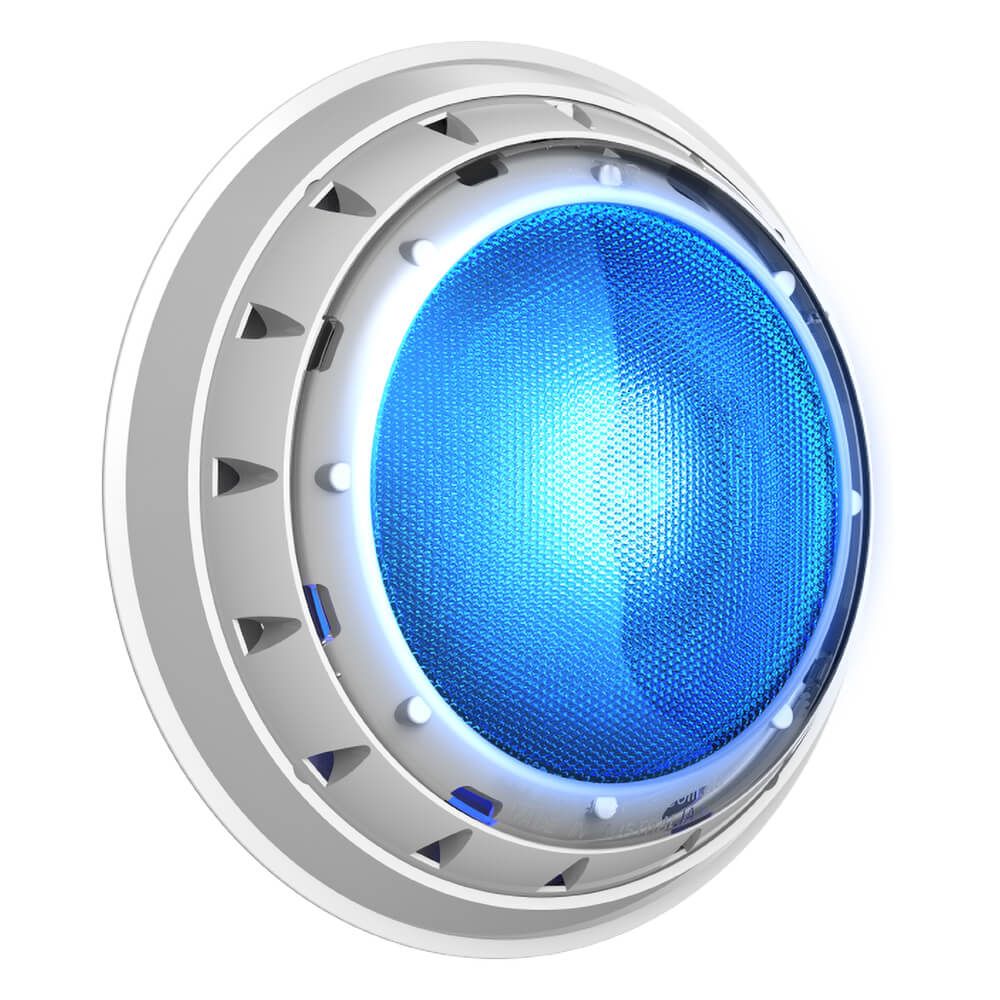

Transform your pool into a tranquil oasis with the Spa Electrics Photon GKRX/GK7 Series LED Blue Colour Pool Light. Designed for effortless retrofitting, this surface mount pool light is engineered to replace most existing pool lights in the Australian market.
Featuring a high-intensity Ceramic Light Engine, this LED light delivers a stunning and consistent Electric Blue hue, enhancing your pool’s aesthetic while providing energy-efficient illumination.
With a quick and easy installation process, you can upgrade your pool lighting without the need for an electrician, making it the perfect choice for a hassle-free enhancement.
Features:
- High-Intensity LED Technology: Features a Ceramic Light Engine for superior brightness and efficiency.
- Universal Retro-Fit Design: Easily retrofits most existing pool lights with a simple, patented design.
- Compatible with Existing Transformers: Operates on 12~32v AC, allowing you to use your current setup.
- Quick Installation: Upgrade your pool lighting to LED in as little as 15 minutes without the need for an electrician.
- Safe Low Voltage Operation: Ensures safety with low voltage operation, making it ideal for residential pools.
- Australian Made: Proudly designed and manufactured in Australia, ensuring top-notch quality and durability.
- Two Brackets. Suit Any Existing Light.
Plate 'A'
Concrete
Plate 'B'
Fibreglass / Vinyl
Direct Connect
No cable joining required
- Replaceable accessories
LED Colour Guide:
Multi Plus.
Spa Electrics’ signature MULTIPLUS LED represents the latest in Retro-Fit multi-colour lighting. MULTIPLUS provides clean, white illumination and stunning, bright colours by incorporating a 4000k True White LED.
Featuring seven brilliant colours and four stunning transitions, MULTIPLUS is availabile across our entire Retro-fit lighting range. MULTIPLUS lights can be operated with a standard wall switch, or with the iRIS lighting control systems.
With 9 built in operating modes, MULTIPLUS can also integrate seamlessly with major pool automation systems.
TRl colour.
For those who love a splash of colour, the TRI Colour LED features a 4000K True White, Blue and Green.
Available only in the GKRX model, the TRI colour LED combines simplicity and flexibility, ensuring your favourite colour is available at the flick of a switch.
Single Colour.
Experience intense illumination with your choice of 2 beautiful colours to compliment your pool or spa.
Available in Blue or 4000K True White, the Spa Electrics Single Colour range is an elegant and uncomplicated lighting solution.
Note: Dimming is available only on Multi Plus with iRIS Controller.
GKRX Series Retro-Fit Guide
|
|
Plate Used |
| Light Brand |
Light Type |
Tiled |
Rendered |
Fibreglass |
Vinyl |
| Autumn Solar |
Slim 180
(Also suitable for Magic / Questa / Waterlinx / Pantera) |
A |
B |
B |
N/A |
| Aquaquip QC Series |
QC Series |
A |
B |
B |
N/A |
| Filtrite |
PAR 56*
(Also requires Spa Part GK6710) |
B |
B |
B |
B |
| Poolrite |
Trimlite |
A |
A |
B |
B |
| Spa Electrics |
SE3M |
A |
B |
B |
B |
| Stroud |
C150 |
A |
A |
A |
N/A |
| Stroud |
SM400*
(Also requires Spare Part GK6710) |
B |
B |
B |
N/A |
| Swimworld |
Pool Light |
B |
B |
B |
N/A |
| Waterco |
Litetream |
A |
A |
B |
B |
| Waterco |
Britestream MK 5 26W |
A |
A |
B |
B |
| Sunline / Rivendale |
|
B |
B |
B |
B |
| Waterco |
Britestream 165 |
B |
B |
B |
B |
*Additional Adaptor Kit GK6710 required
Note: This is the GKRX model which is variable voltage and replaces the older GK7 (single voltage)
Manual Mode Operation
Cable Installation:
Each gland colour represents a cable size and these colours and sizes are consistent across all Spa Electrics products, so regardless of which model light you are installing the gland sizes will be the same for each.
Green
Cable Diameter
4.8mm - 5.8mm
Blue
Cable Diameter
5.9mm - 6.5mm
Grey
Cable Diameter
6.6mm - 7.3mm
White
Cable Diameter
7.4mm - 8.0mm
Red
Cable Diameter
9.0mm - 9.8mm
Cable Too Small
Cable Too Large
Correct
Optional Accessories:
In the majority of Retro-Fit installations, additional adaptor kits are not required. However, there is a small handful of lights that do require the addition of an adaptor kit to complete a seamless installation.
GK6710 Filtrite Retro Mounting Kit
Red Cable Gland to suit 9.0mm - 9.8mm cables
Cable Joiner 387
Inline Pluggable Cable Joiner to suit 0.5 to 4mm cables
Technical Specifications:
| Light Source |
Ceramic Light Engine (LED) |
| Available Colours |
Multi Plus |
|
TRI Colour |
|
Blue (465nm) |
|
White (4000K) |
| IP Rating |
IPX8 |
| Installation Types |
Concrete / Fibreglass / Vinyl |
| Rim Colour Options |
White / Black / Grey |
| Voltage |
12~32v AC |
| Wattage |
12watts |
| Ambient Operating Temperature |
5 °C to +40 °C |
| Warranty |
12 Month Manufacturers Warranty |
In The Box:
- 1 x GKRX Blue Colour Light with White Rim
- 1 x Plate 'A' (Concrete)
- 1 x Plate 'B' (Fibreglass / Vinyl)
- 1 x Cable Seal Kit:
- Green Cable Gland. Cable diameter 4.8mm - 5.8mm
- Blue Cable Gland. Cable diameter 5.9mm - 6.5mm
- Grey Cable Gland. Cable diameter 6.6mm - 7.3mm
- White Cable Gland. Cable diameter 7.4mm - 8.0mm
- 4 x screw 1" x 8
- 4 x screw M4 x 12P
- 4 x screw 1-1/4" x 8
- 1 x Lanolin
- 1 x Stainless Steel Mounting Screw Kit
- 1 x Installation Manual
