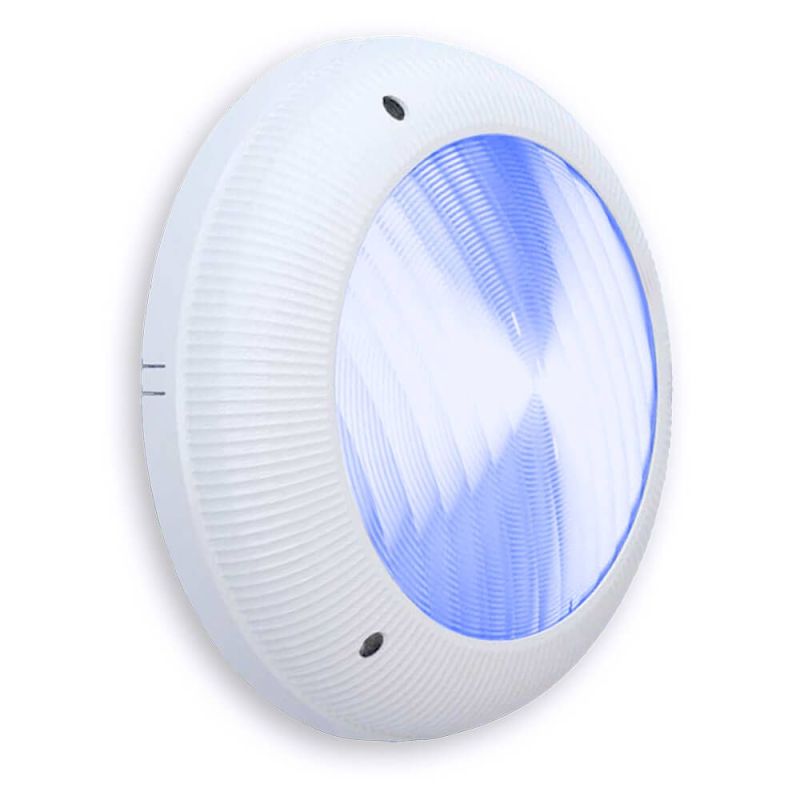

Aqua-Quip QC LED Blue Retro-Fit Concrete Underwater Pool Light

The Aqua-Quip QC LED Blue-Colour Retro-Fit Concrete Underwater Pool Light is a state-of-the-art lighting solution designed for both new and existing concrete pools. The light is energy-efficient, utilizing only 15% of the power required by traditional halogen lights, and features advanced thermal management for optimal performance and reliability. The QC Series light is versatile and user-friendly with variable voltage technology ranging from 12V AC to 32V AC, a quick connect feature for easy installation, and a universal mounting bracket.

Benefits:

• Energy Efficiency: Consumes only 15% of the power needed for traditional halogen lights.
• Ease of Installation: Quick connect feature simplifies installation into existing pools.
• Versatile Voltage Range: Operates with supply voltages from 12V AC to 32V AC.
• Enhanced Brightness: Significantly brighter than older 100w halogen systems.
• Universal Mounting: Compatible with various brands of pool lights for retro-fit applications.

Features:

• LED Colour Options: Fixed blue colour
• Energy Efficient: Utilizes only 15% of the power required by halogen lights, with maximum power consumption of 16VA.
• Variable Voltage Technology: Operates from 12V AC to 32V AC, compatible with existing transformers.
• Quick Connect Feature: Simplifies the connection to existing pool cables with varying sizes.
• Universal Mounting Bracket: Facilitates retro-fit installations and new pool applications with multiple screw provisions.
• Protection and Reliability: Features power cycle “Run Dry” thermal cut-out and voltage transient clamping for fault protection.

Technical Specifications:

• Power Requirement: 12V ~ 32V AC 50/60Hz
• Protection Rating: IPX8 up to 2.0m depth
• Temperature Range: 0°C ~ +40°C pool water temperature
• Installation Location: 200mm ~ 400mm below water level
• Voltage Tolerance: 10.5V AC ~ 35V AC
• Fault Protection: Power cycle “Run Dry” thermal cut-out and voltage transient clamping

QC Retro-Fit LED Lights are supplied with the unique waterproof Quick Connect Plug Kit and a universal mounting bracket – allowing replacement of all other brands of surface mounted lights in concrete pools.

Step 1. Fit the plug kit to the existing cable.

Step 2. Push into rear of light and tighten screws.

Aqua-Quip Surface Mounted Retro-Fit Lights are able to convert the following brands:

• Stroud SM400, Stroud C150
• Swimworld
• Waterco
• Filtrite
• Spa Electrics
• Poolrite
• Autumn Solar, Questa, Chameleon

Package Contents:

• Optional rim
• Quick connect adaptor
• Universal mounting bracket
• Screw kit
