QC LED Surface Mounted Pool Lights for Existing Pools

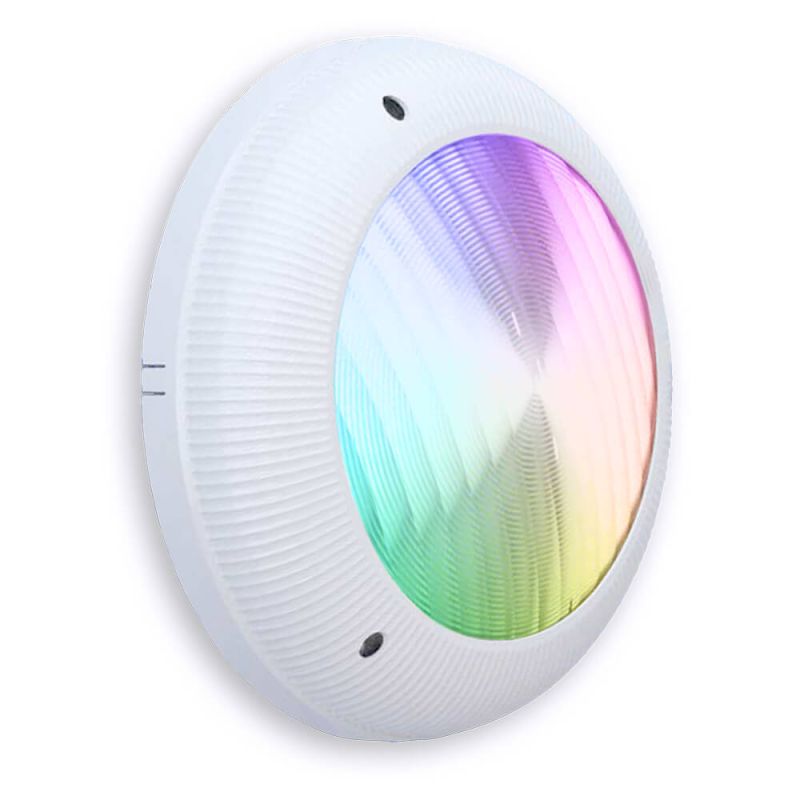

The Aqua-Quip QC LED Multi-Colour Retro-Fit Concrete Underwater Pool Light is a state-of-the-art lighting solution designed for both new and existing concrete pools. Featuring brilliant LED colours, the QC Series offers a multi-colour options with Aqua-Quip’s unique Colour Selection Palette for nearly limitless colour possibilities.
These lights are energy-efficient, utilizing only 15% of the power required by traditional halogen lights, and feature advanced thermal management for optimal performance and reliability. With a variable voltage technology that ranges from 12V AC to 32V AC, a quick connect feature for easy installation, and a universal mounting bracket, the QC Series lights are versatile and user-friendly.
Benefits:
- Vibrant LED Colours: Offers multi-colour options with a wide range of pre-programmed modes.
- Energy Efficiency: Consumes only 15% of the power needed for traditional halogen lights.
- Ease of Installation: Quick connect feature simplifies installation into existing pools.
- Versatile Voltage Range: Operates with supply voltages from 12V AC to 32V AC.
- Enhanced Brightness: Significantly brighter than older 100w halogen systems.
- Universal Mounting: Compatible with various brands of pool lights for retro-fit applications.
- Australian Made: Designed and manufactured to meet stringent Australian standards.
Features:
- LED Colour Options: Available in multi-colour options with an extensive Colour Selection Palette.
- Energy Efficient: Utilizes only 15% of the power required by halogen lights, with maximum power consumption of 22VA.
- Variable Voltage Technology: Operates from 12V AC to 32V AC, compatible with existing transformers.
- Quick Connect Feature: QC Retro-Fit LED Lights are supplied with the unique waterproof Quick Connect Plug Kit and a universal mounting bracket – allowing replacement of all other brands of surface mounted lights in concrete pools.
Step 1. Fit the plug kit to the existing cable.
Step 2. Push into rear of light and tighten screws.
- Universal Mounting Bracket: Facilitates retro-fit installations and new pool applications with multiple screw provisions.
- Protection and Reliability: Features power cycle “Run Dry” thermal cut-out and voltage transient clamping for fault protection.
- High Light Colour: White >5,000K, Blue 475nm, Green 525nm.
Aqua-Quip QC Retro-Fit Lights replace the following brands of Surface Mounted Lights:
- Stroud C150 (Diameter 210mm)
- Poolrite (Diameter 232mm)
- Varimode (Diameter 211mm)
- Waterco (Diameter 220mm)
- Waterco Britestream MKIV (Diameter 220mm)
- Waterco Britestream MKV (Diameter 240mm)
- Swimworld (Diameter 250mm)
- Stroud SM400 (Diameter 250mm)*
- Filtrite (Diameter 250mm)*
- Sunline/Rivendale (Diameter 230mm)
- Spa Electrics SE3M (Diameter 235mm)
- PAL RCS (Diameter 220mm)
- Spa Electrics (Diameter 200mm)
- Autumn Solar Slim 180 (Diameter 220mm)
- Emaux E-Lumen (Diameter 261mm)
- Magic Pool Products (Diameter 236mm)
- Aqua-Quip Halogen (Diameter 230mm)
- Zodiac Lumipower SM (Diameter 196mm)
(*) Additional APL 075 - Locating Bar Assembly required
Technical Specifications:
| Available Colours |
Multi Colour |
|
Quattro Quad |
|
Blue |
|
White |
| Controller Compatibility |
Wall Switch or Power Point |
|
Aqua-Quip InstaTouch |
|
Astral Connect 10 / Connect Lite / HALO* |
|
Zodiac Jandy AquaLink* |
|
Hayward OmniLogic* |
|
Pentair IntelliTouch, EasyTouch, IntelliCenter* |
|
INSNRG |
|
Aquatek (by Dontek Electronics) |
|
Theralux Active Pool+Manager |
|
Aquamate X |
|
Sunlover Oasis Smart Control System |
|
SplashMe Automation Controller |
|
Home Automation Systems (C-Bus etc)* |
| Rim Colour Options |
White (standard) / Metallic Grey |
| Dimming |
Available when used with Aqua-Quip InstaTouch Smart Lighting Controller |
| Power Requirement |
12V ~ 32V AC 50/60Hz |
| Protection Rating |
IPX8 up to 2.0m depth |
| Temperature Range |
0°C ~ +40°C pool water temperature |
| Installation Location |
200mm ~ 400mm below water level |
| Power Consumption |
Maximum 22VA at all Voltages 12V ~ 32V |
| Voltage Tolerance |
10.5V AC ~ 35V AC |
| Light Colour |
White >5,000K, Blue 475nm, Green 525nm |
| Light Output (Typical) |
White = 1050 Lumens, Blue = 300 Lumens, Green = 650 Lumens |
| Fault Protection |
Power cycle “Run Dry” thermal cut-out and voltage transient clamping |
| Compliance |
Made in Australia to all relevant Australian standards and regulations |
| Warranty |
12 Month Manufacturer’s Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:
- 1 x QC Multi-Colour Retro-Fit LED Light P/N LED024T
which is factory sealed and supplied with a clear lens with proprietary diffusion material ensures the vivid colours of the LEDs are projected and evenly dispersed throughout the pool.
- 1 x Universal Mounting Bracket P/N APL050
which has a variety of screw holes to ensure compatibility with all brands.
- 1 x Quick Connect Plug Kit P/N LED375
allowing the light to be connected to the existing cable; colour coded cable seals of varying sizes enable the light to be connected to cables of varying thicknesses.
- 1 x Design Ring - White P/N LED151 or Metallic Grey P/N LED152
adds style and a decorative appearance.
- 1 x PE6 Screw Kit P/N APL006
secures the light to the 3 posts on the Uni Bracket.
Frequently Asked Questions
Are Aqua-Quip QC Retro-Fit pool lights compliant with Australian standards?
Yes. Aqua-Quip QC Retro-Fit pool lights are Australian made and manufactured to meet relevant Australian standards and regulations. Installation must be completed in accordance with local regulations and the manufacturer’s instructions.
Do QC Retro-Fit pool lights need to be installed by an electrician?
QC Retro-Fit lights are permanently installed pool luminaires and installation should be carried out by a suitably qualified person in accordance with local regulations and the manufacturer’s instructions. Requirements vary by state and territory, and if any mains-voltage wiring is involved (such as a transformer that is hardwired to the supply), a licensed electrician is required. Any associated electrical work must comply with AS/NZS 3000 (Wiring Rules).
Do QC Retro-Fit pool lights require a transformer?
Yes. QC Retro-Fit lights are extra-low voltage and require a suitable isolation transformer installed in accordance with AS/NZS 3000. These lights use variable voltage technology and can operate from 12V AC to 32V AC, which makes them compatible with many existing pool light transformers. Always confirm transformer output and condition before installation.
Are QC Retro-Fit lights suitable for existing concrete pools?
Yes. QC Retro-Fit lights are specifically intended for existing concrete pools and surface-mounted light replacements. They are supplied with a universal mounting bracket that allows replacement of many other brands of surface-mounted pool lights.
Can QC Retro-Fit lights replace other brands of surface-mounted pool lights?
Yes. QC Retro-Fit lights are supplied with a universal mounting bracket and Quick Connect Plug Kit, allowing replacement of many surface-mounted pool lights from other manufacturers. Refer to the compatibility list on the product page or
Aqua-Quip QC Series Identification Chart.
Can QC Retro-Fit pool lights be operated from a wall switch?
Yes. QC Retro-Fit pool lights can be operated from a standard wall switch or a compatible controller. Fixed-colour models provide simple on/off control. Multi-colour models allow colour selection and effects via switch operation or compatible automation systems. For enhanced control, multi-colour models can also be used with the
Aqua-Quip InstaTouch Smart Lighting Controller.
Are QC Retro-Fit lights compatible with pool controllers and automation systems?
Yes. QC Retro-Fit multi-colour lights can be used with a range of lighting controllers and pool automation systems. For correct colour operation and synchronisation, the light’s internal colour-changing protocol must match the controller being used. Refer to the technical specifications,
Aqua-Quip Controller Compatibility for Multi-Colour Lights, or
contact us for confirmation before purchase.
What colour options are available in the QC Retro-Fit range?
The QC Retro-Fit range is available in fixed-colour options (white, blue, and green), a multi-colour option, and a Quattro Quad option. Quattro Quad allows selection between four colours (white, blue, aqua, and green) by switching the light off and on.
Do QC Retro-Fit lights use a plug connection?
Yes. QC Retro-Fit lights are supplied with Aqua-Quip’s waterproof Quick Connect Plug Kit, allowing the light to be connected to an existing cable for simpler installation and easier servicing.
