"A Quiet Achiever"
Built around Hayward’s legendary time-tested TigerShark platform, the SharkVac XL is a premium quality, high-capacity, user-friendly robotic pool cleaner that delivers perfect results day in and day out without fretting.
Thanks to its powerful cleaning tools and intelligence, its large capacity filter and extra-wide cleaning path it can tackle a large pool quickly, efficiently and with ease.
It cleans the pool floor and walls with computer efficiency automatically calculating the size of the pool and programming itself for the most time and energy-efficient cleaning path.
Assembled in the US, the SharkVac is a clear demonstration of a high-quality product that is sturdy, reliable, extremely well built, and that simply does its job flawlessly.
The SharkVAC XL is especially suitable for pools in which fine dust is an issue. It features an innovative, large capacity, easy-to-access dual filter cartridges with extremely fine porosity.Â
Highlights:
- Dual 5-Micron Fine Porosity Filtration
Superior filtration technology captures ultra-fine particles for exceptional water clarity.
- Top-Access, Easy-Clean Filters
Convenient top-loading cartridges make emptying and rinsing a breeze.
- Versatile Cleaning on Any Pool Surface
Suitable for all pool shapes and surfaces, from vinyl to fiberglass.
Sturdy storage and transport caddy for easy handling.
Out-of-water and beach entry sensors protect the motor and prevent the cleaner from exiting the pool.
Benefits:
- Comprehensive Cleaning Coverage: Scrubs the floor, walls, and waterline thoroughly for a pristine pool environment.
- Algae & Bacteria Prevention: Aggressive brushing reduces algae and bacterial growth, reducing chemical usage.
- Ideal for Large Pools: With an 18m power cord and spacious filters, it’s perfect for larger pools.
- Plug & Play Convenience: Fully automated with quick, straightforward operation.
- Energy Efficiency: Operates independently from the pool’s filtration system, minimizing energy use and reducing backwashing frequency.
- Enhanced Water Clarity: By leaving the skimmer free, it boosts the pool’s turnover rate, leading to clearer water.
- Durability & Quality: Assembled in the USA, ensuring reliable and quiet performance every time.
Features:
- Automatic Path Optimization: Calculates the pool size and self-programs for an optimized cleaning path.

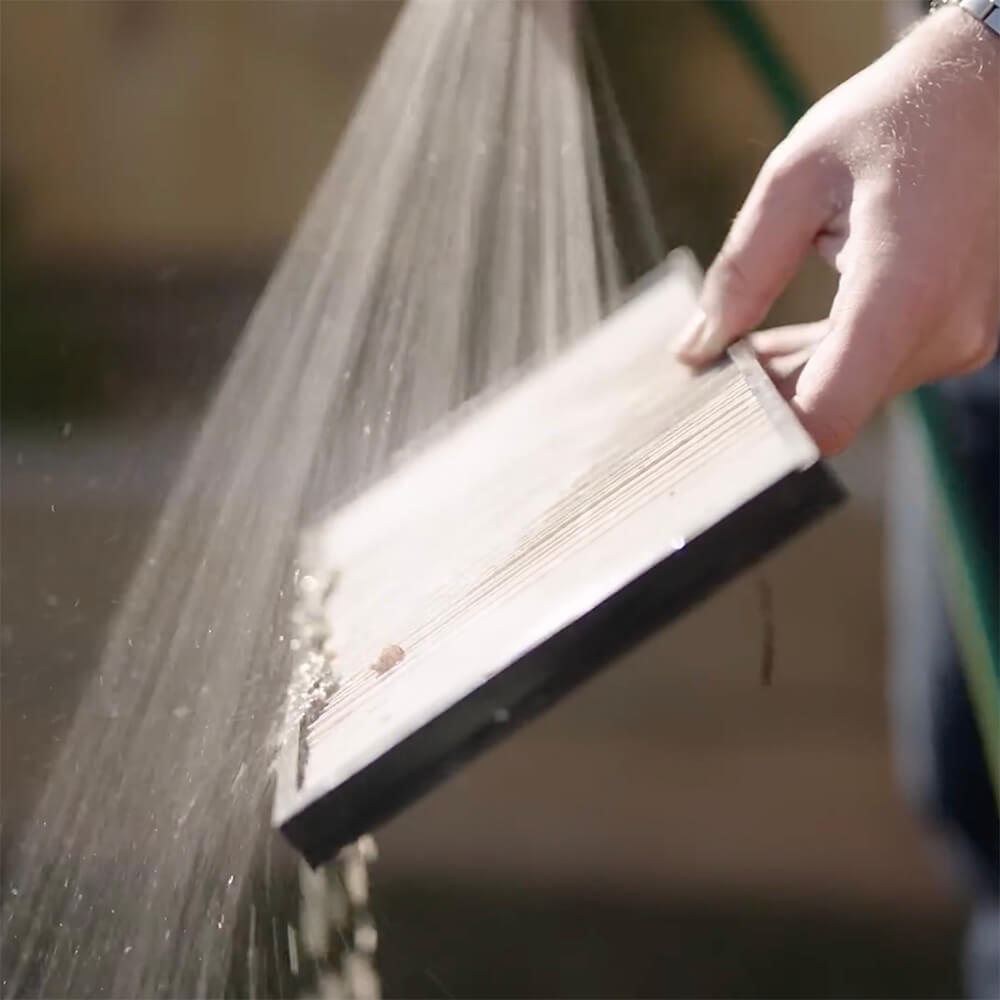

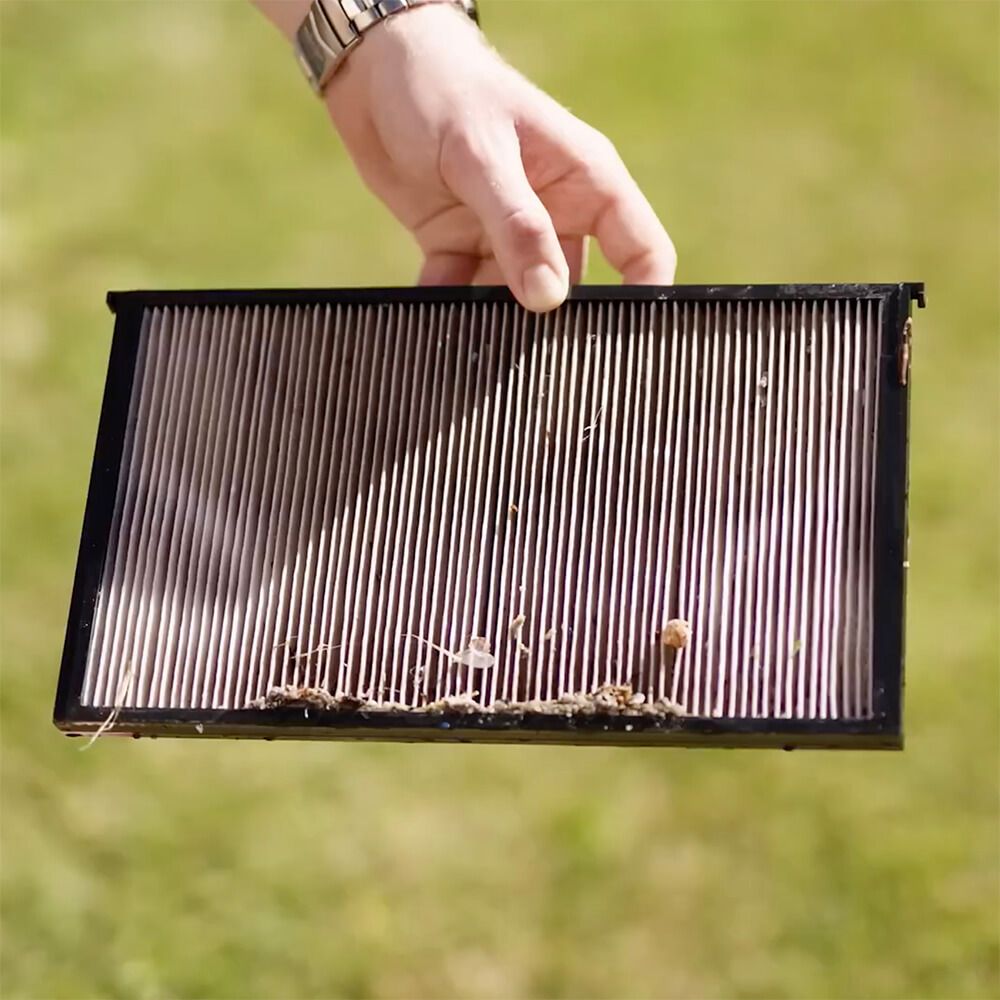

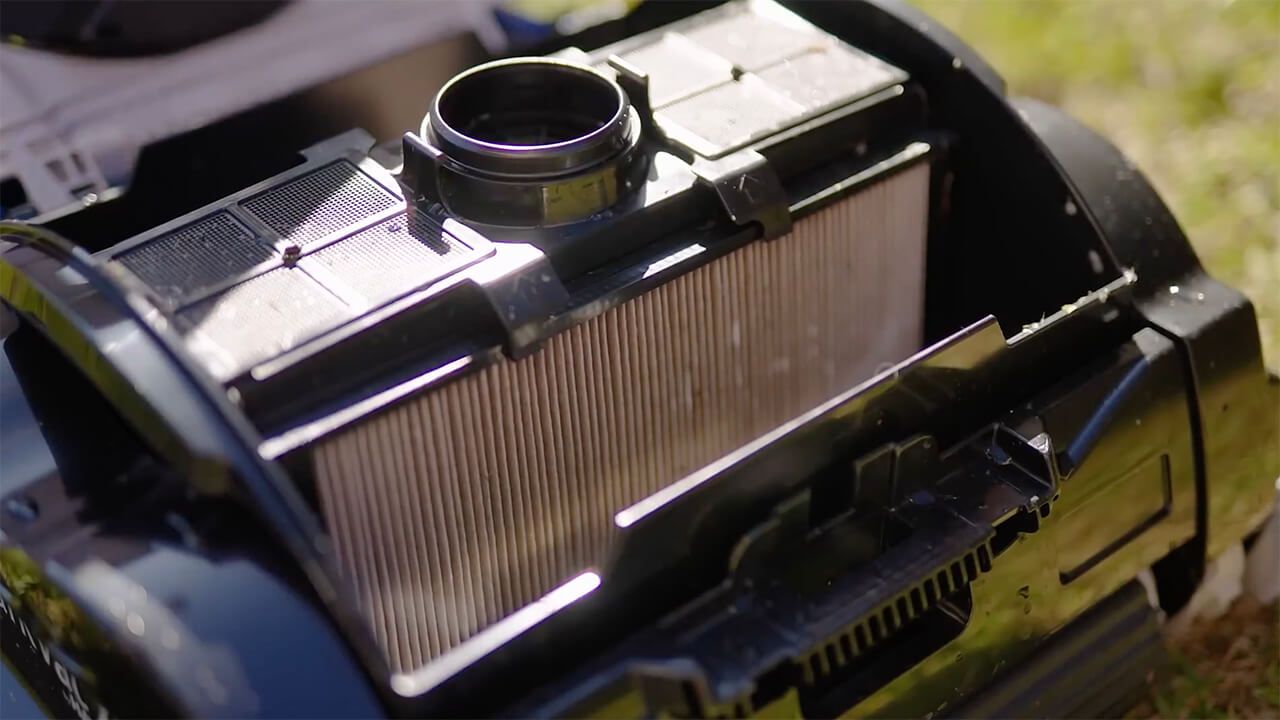

- Quick & Easy Top Filter Access: The SharkVac XL’s top-access button allows fast filter removal for rinsing with a garden hose—no flipping needed. Two fine-porosity filters capture debris down to 5 microns, while a transparent cover enables quick filter checks. An optional Spring Clean-up Filter (sold separately) tackles larger debris.
- Advanced Sensor Technology: Beach entry sensor reverses direction when exiting water; out-of-water sensor prevents operation when dry.
- Wall Climbing Technology: The SharkVAC XL is equipped with innovative, patent-pending “movable flotation technology” that adjusts the cleaning angle for optimal wall climbing.
Float Position I
Default center position for best overall cleaning
Float Position II
Faster waterline and wall coverage for more comprehensive pool wall cleaning.
Float Position III
Ideal for scrubbing slick surfaces like tile and fiberglass, spending extra time on the wall and waterline.
- Independent Operation: Runs separately from the pool’s pump and filter system.
- Three-Hour Cleaning Cycle: Efficiently covers all pool areas in just three hours.
- For Residential Pools of All Shapes & Surfaces: Efficiently cleans gunite, vinyl, fiberglass, pebble, and tile* pools up to 6m x 12m.
(*) For optimal performance on tile surfaces, the foam roller option is recommended. Foam roller part number: RCX26011WCE
- Long 18m Power Cord & Convenient Caddy Cart: Equipped with an 18-meter power cord for extended reach, the SharkVac XL pairs with a sturdy, lightweight Caddy Cart for effortless transport.
- Energy Savings: Uses up to 94% less energy than most pressure cleaners.
- 2-Year Warranty: Built to last with reliable performance.
The Hayward SharkVAC XL combines innovative technology, dependable performance, and user-friendly features, making it a trusted solution for pool owners who want the best in robotic pool cleaning.
Optional Accessory:
Spring Clean-Up Filter Element
Designed for efficient collection of larger debris during heavy clean-ups, ensuring the TigerShark maintains peak performance.
Technical Specifications:
|
SharkVAC XL |
| Types of inground pools |
| Surfaces |
Concrete, pebblecrete, quartzon, fiberglass, vinyl, and tiles* |
| Shapes |
Rectangular, oval, free shape
Flat, gentle slope, composite slope, diamond shape |
Size |
For in-ground pools
Up to 12 x 6m |
| Performance |
| Cleaning areas |
Floor, walls, steps and waterline |
| Cleaning cycle |
3 hours |
| Filtering level |
1 - 2 ultra-fine 5 micron porosity filter elements
2 - 2 Spring Clean-Up large debris filter element (optional)
|
| Filter capacity |
4.2L |
| Number of cycles |
1 - Full Cycle |
| Drive System |
Direct Drive w/Polyurethane Drive Track & Acetal/Stainless Steel Bearing System |
| Ease of Use |
| Plug & Play |
✓ |
| Caddy |
✓ |
| Overload Protection |
Electronic Overload Monitoring with auto-shutoff |
| Programmed Function |
ASCL/adaptive seek control |
| Technical Specifications |
| Power Supply |
115 VAC 60 Hz |
| Cleaner voltage |
24 V DC |
| Rated Output Current |
4A |
| Cable length |
18.29 m |
| Suction capacity |
17 m3/h |
| Water flow |
283 L/m |
| Cleaning speed |
16.7 m/min |
(*) For optimal performance on tile surfaces, the foam roller option is recommended. Foam roller part number: RCX26011WCE
Frequently Asked Questions
Why does my SharkVAC XL stop shortly after starting or shut off unexpectedly?
This usually indicates the cleaner has detected an out-of-water condition, a motor overload, or a blockage. Ensure the unit is fully submerged before switching it on, check for debris around the impeller, and confirm the filters are not clogged. If the cleaner continues to stop, inspect the drive tracks and brushes for obstructions and verify that the power supply is connected directly to a GFCI outlet.
What should I do if the cleaner is not climbing the walls or reaching the waterline?
Start by confirming the filter cartridges are clean, as restricted waterflow reduces climbing performance. Check the float position and adjust it to Position II or III for improved wall coverage. For pools with slick surfaces such as tile or fibreglass, foam rollers are recommended for optimal traction.
Why is the cleaner leaving debris behind or not picking up fine dust properly?
The most common cause is a full or clogged filter. Clean the cartridges after every cycle, especially when the pool has heavy dust or leaf loads. Ensure the 5-micron filters are installed correctly with support ribs facing outward. Large debris should be removed from the pool before operation.
How often should the filter cartridges be cleaned, and what happens if they clog?
Filters should be rinsed after each use to maintain consistent performance. Clogged filters reduce suction, limit wall-climbing ability, and can cause the cleaner to stop prematurely. In periods of heavy debris, more frequent cleaning may be required.
What causes the cleaner to get stuck on the main drain or pool obstacles?
Raised or non-flush drains, in-floor cleaning heads, or large objects can temporarily stop the cleaner. The SharkVAC XL will typically free itself as part of its programmed sequence. If it gets stuck repeatedly, try starting the cycle from a different location or remove the obstruction if possible.
Why does debris fall out of the cleaner when I lift it from the pool?
This generally occurs when the filter is overloaded or one of the intake flaps is held open by debris. Clean the filters more frequently and inspect the intake flaps to ensure they move freely and close correctly.
What should I do if the cable becomes twisted or tangled during operation?
Lay the full length of the cable straight in the sun to remove twists. Avoid using more cable than the pool requires, and keep any excess coiled neatly beside the power supply. Check that the cleaner is not repeatedly catching on the same obstacle.
Why won’t the cleaner start when I press the power button, or why does it power down immediately?
The cleaner must be in the water before switching it on. If powered on dry, the safety sensor will shut the unit down. Ensure the floating cable is fully connected to the power supply, confirm the outlet is GFCI-protected, and inspect the power cord for damage.
What can cause the impeller to jam, and how do I check it?
Hair, leaves, and fine debris can occasionally lodge around the impeller. Disconnect the cleaner from the power supply, open the top cover, remove the venturi and inspect the impeller area. Rinse thoroughly with a hose to restore waterflow.
When should I adjust the float positions (I, II, III), and what difference do they make?
Float Position I is the default setting and provides the best performance for most pools. Position II increases the time the cleaner spends along the wall and waterline, improving coverage in larger pools. Position III is recommended for slick surfaces such as tile or fibreglass, as it increases scrubbing time and assists climbing. The float can be adjusted in two ways: using the slide handle while the cover is closed, or by repositioning the float box to the preferred location when the cover is open.
Why won’t my SharkVAC XL climb tile or fibreglass walls properly without foam rollers?
Tile and fibreglass surfaces are smoother than concrete or pebblecrete. Foam rollers provide the extra grip needed for reliable wall climbing. They are recommended for any pool with low-friction surfaces.
Is it safe to leave the cleaner stored in the pool between cycles?
The cleaner should be removed after each cycle. Leaving it in the pool continuously can shorten the lifespan of components, increase maintenance requirements, and expose the unit to unnecessary chemical and UV stress.
What should I do if the cleaner is reversing frequently or seems to repeat sections of the pool?
This is part of the programmed mapping behaviour. The cleaner may repeat segments while recalibrating to pool shape changes. If coverage seems limited, check the filters, remove obstacles, and try starting the cycle from a different area of the pool.
What causes the cleaner to lose traction or stop moving?
Debris caught in the drive tracks, worn brushes, or obstructed bearings can prevent smooth movement. Inspect and clean the tracks and rollers, and replace worn components. Low waterflow from a clogged filter can also reduce traction.
Can I run the SharkVAC XL using an external timer, and what settings should I use?
Yes. The timer should be set for at least three hours to allow one complete cycle. If the timer is set for a shorter duration, the cleaner will stop early. If set longer, the cleaner will still end its cycle after three hours.
What happens if water enters the motor box or the cleaner triggers an "out-of-water" safety stop?
If water is detected inside the motor box, the cleaner will stop to prevent damage. Continuous water detection indicates a potential seal or cord issue requiring service. An out-of-water stop occurs if the cleaner climbs too high, is removed from the pool mid-cycle, or is switched on dry. Restarting the cycle requires turning the power supply off for 10 seconds and returning the cleaner to the water.
