Efficient, quiet, and engineered for savings

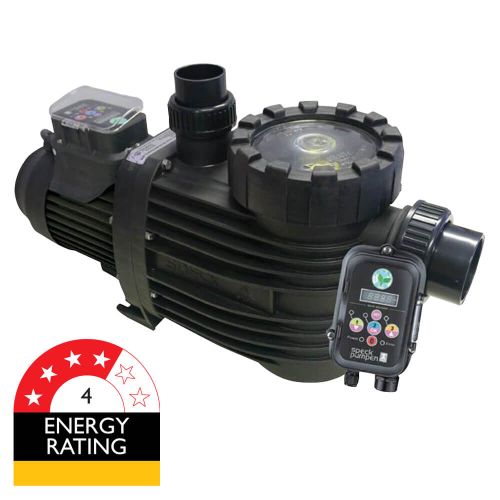

The German-engineered BADU Eco-Touch VS combines a patented permanent-magnet (DC) motor with variable-speed smart controls to deliver powerful performance with far lower running costs. With a 4-Star energy rating — and up to 8-Star efficiency when programmed at 1450 RPM — it helps reduce electricity bills and CO₂ emissions compared with conventional induction pumps. Many owners recover their investment in less than two years (actual savings depend on usage and tariffs).
Why Choose the BADU Eco-Touch VS?
Eco-Touch VS gives you complete flexibility over pump speeds. Run it low for everyday filtration and chlorination, switch to medium for heavier use, or ramp up to high for backwashing, vacuuming, spa jets, or water features. Each speed can also be reprogrammed in 50 RPM increments, giving you precise control over performance and energy use.
Every start-up begins with a 5-minute high-speed priming cycle, ensuring reliable operation before settling back to your chosen speed. The onboard LCD display shows live RPM, while the LED diagnostics help identify issues such as low voltage, overheating, or overcurrent protection.
It’s built tough for salt pools up to 5,000 ppm, with corrosion-resistant plastics, a stainless steel shaft, and a double-sealed motor for long service life. Every pump is factory wet-tested, backed by a 5-year wet-end warranty* and a 2-year motor warranty (including commercial applications).
Key Features:
- Permanent-magnet motor with axial rotor (DC), optimised for pool & spa systems
- Variable-speed operation with programmable settings in 50 RPM increments (1000–2850 RPM)
- Automatic 5-minute priming cycle on start-up for reliable operation

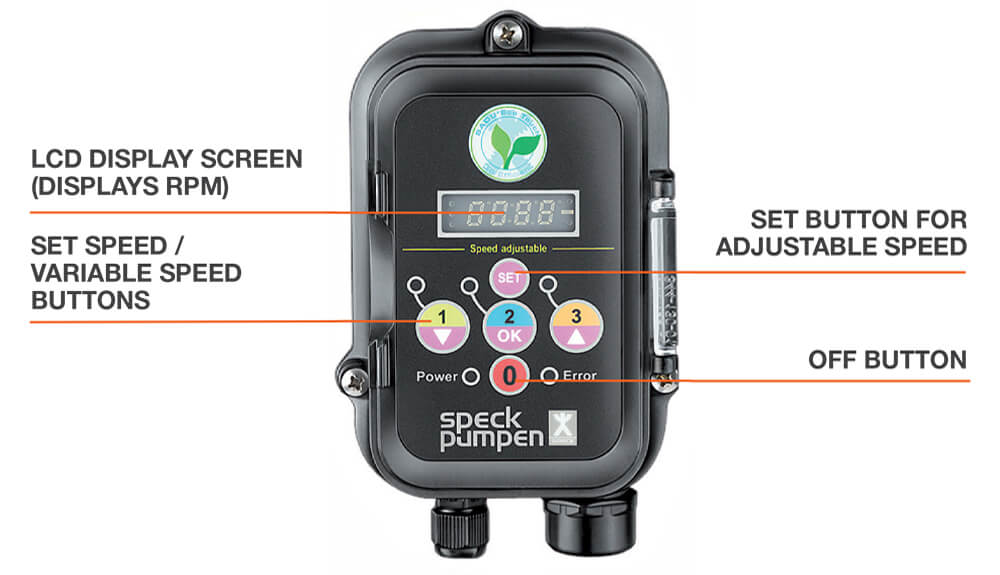

- User-friendly LCD panel with live RPM display and selectable presets
- Built-in error diagnostics with LED fault codes (voltage, temperature, motor protection)
- Quiet, smooth running for day or night use
- Stainless steel shaft & recyclable plastics for corrosion and salt resistance
- Double-sealed motor for complete separation between pool water and pump shaft
- Suitable for salt pools up to 5,000 ppm
- Every pump factory wet-tested for quality assurance
Factory Preset Speeds:
| Button |
RPM |
Application |
| 1 (Low) |
1,900 |
Slightly boosted speed for filtration and chlorination. |
| 2 (Medium) |
2,400 |
Gentle spa jet action and filtration at times of heavier pool use. |
| 3 (High) |
2,850 |
Vacuuming, backwashing and operation of spa jets or water features. |
Each speed can be reprogrammed in 50 RPM increments. On start-up, the pump auto-primes at high speed for ~5 minutes.
Technical Specifications:
| Energy Rating |
4-Star (up to 8-Star at 1450 RPM) |
| Supply Voltage |
Single-phase 230–240 V~ 50 Hz |
| Power Input (P1) |
975 W |
| Power Output (P2) |
750 W |
| Max Current |
6.5 A |
| Head (max / min) |
15 m / 1 m |
| RPM Range |
1,000–2,850 |
| Inlet / Outlet |
50 mm / 40 mm |
| Max Water Temperature |
40 °C |
| Weight |
11 kg |
| Salt Level (max) |
5,000 ppm |
Note: Performance varies with installation, hydraulics, and operating speed.
Warranty:
- Five (5) years on wet-end components: casing, diffuser, gland housing, impeller, mechanical seal.
- Two (2) years on the motor and in all commercial applications.
Important: Pouring salt or chemicals directly into the skimmer will void the full warranty.
Frequently Asked Questions
What is the annual energy consumption?
686.76 kWh per year, based on a daily run time of 4.51 hours. For a quick cost guide, multiply 686.76 by your electricity price (e.g., at 60 c/kWh that’s roughly $1.13/day or $34/month).
How quiet is it?
The Eco-Touch VS runs much quieter than single-speed pumps, especially at low and medium speeds, making it suitable for night-time operation.
What speeds does it offer and what are they for?
Factory presets keep things simple: Low (1,900 RPM) for filtration and chlorination, Medium (2,400 RPM) for heavier-use filtration or gentle spa jets, and High (2,850 RPM) for vacuuming, backwashing, spa jets, or water features. Each speed can be reprogrammed in 50 RPM increments.
What is the maximum head?
The Eco-Touch VS delivers up to 15 m head, giving you the pressure needed for tasks such as backwashing and running water features at High speed.
Is it suitable for saltwater pools?
Yes. It’s salt-ready for pools up to 5,000 ppm, built with corrosion-resistant plastics, stainless steel shaft, and a double-sealed motor for long service life.
What are the plumbing sizes?
The unions are 50 mm inlet and 40 mm outlet, making installation straightforward on common pool plumbing.
What are the electrical specifications?
Single-phase 230–240 V~ 50 Hz supply, power input 975 W, power output 750 W, with a maximum current draw of 6.5 A.
What’s the maximum water temperature?
Up to 40 °C, suitable for typical pool operating conditions.
Does it have automatic priming?
Yes. On start-up, the Eco-Touch VS runs at high speed for about 5 minutes to ensure proper priming before switching back to your selected speed.
Can I customise the speeds?
Yes. Each of the three speed buttons can be reprogrammed in 50 RPM increments between 1,000–2,850 RPM for precise control.
What happens if there’s a fault?
The control panel includes an LED error indicator that flashes codes to identify issues such as low voltage, overheating, overcurrent, or motor protection errors.
