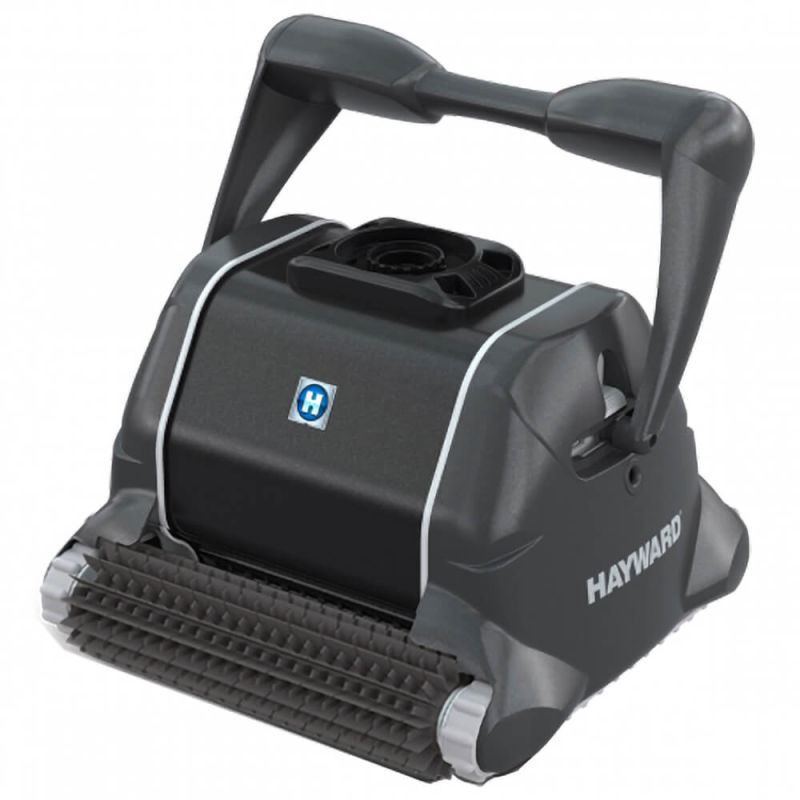

"Legendary Workhorse"
Known in the industry as the "legendary workhorse", the TigerShark has earned its respect across the years as the most capable, reliable and efficient robotic pool cleaner.
It will strenuously vacuum, brush and scrub all of your pool floor and walls up to the waterline as no other robotic cleaner can - all in under 90 minutes!
Equipped with the largest filter canister in the market, and 5-micron filtration porosity, it is the best suitable robotic pool cleaner for pools in which both ultra-fine dust and larger debris are an issue.
While steps, drains and other obstacles tend to hinder other robotic cleaners, they are less of an issue for the TigerShark, which would hardly get stopped by anything.
Despite the vigorous display of power and diligence it showcases, the TigerShark is an energy-efficient machine. Thanks to its state-of-the-art design, it uses just about the same energy that a standard light bulb will consume - It is truly amazing that this is all the power that it is needed for such a hard-working and intelligent pool cleaner.
The TigerShark is a clear demonstration of a well built, mature and time-tested product that simply does its job flawlessly day in and day out.
Benefits:
- Spotless Cleaning: Equipped with the largest filter canister in the market, the strongest suction capacity and self-programming technology, it will strenuously and efficiently vacuum, brush and scrub all of your pool like no other robot can.
- Floor, Wall & Waterline: Thoroughly cleans and scrubs the pool floor, walls and waterline in all pool shapes. Built to climb walls in Australian pools.
- Prevents Algae & Bacteria:Â Its powerful brushing helps prevent germination of algae and bacteria and reduces the need for using chemicals.
- Any Pool: Cleans any pool of any shape. Reaches everywhere in your pool including the bottom, sides and steps. Thanks to its long 17m power cord, extra-large capacity filter and large cleaning path, it is able to perform efficiently even in a larger pool.

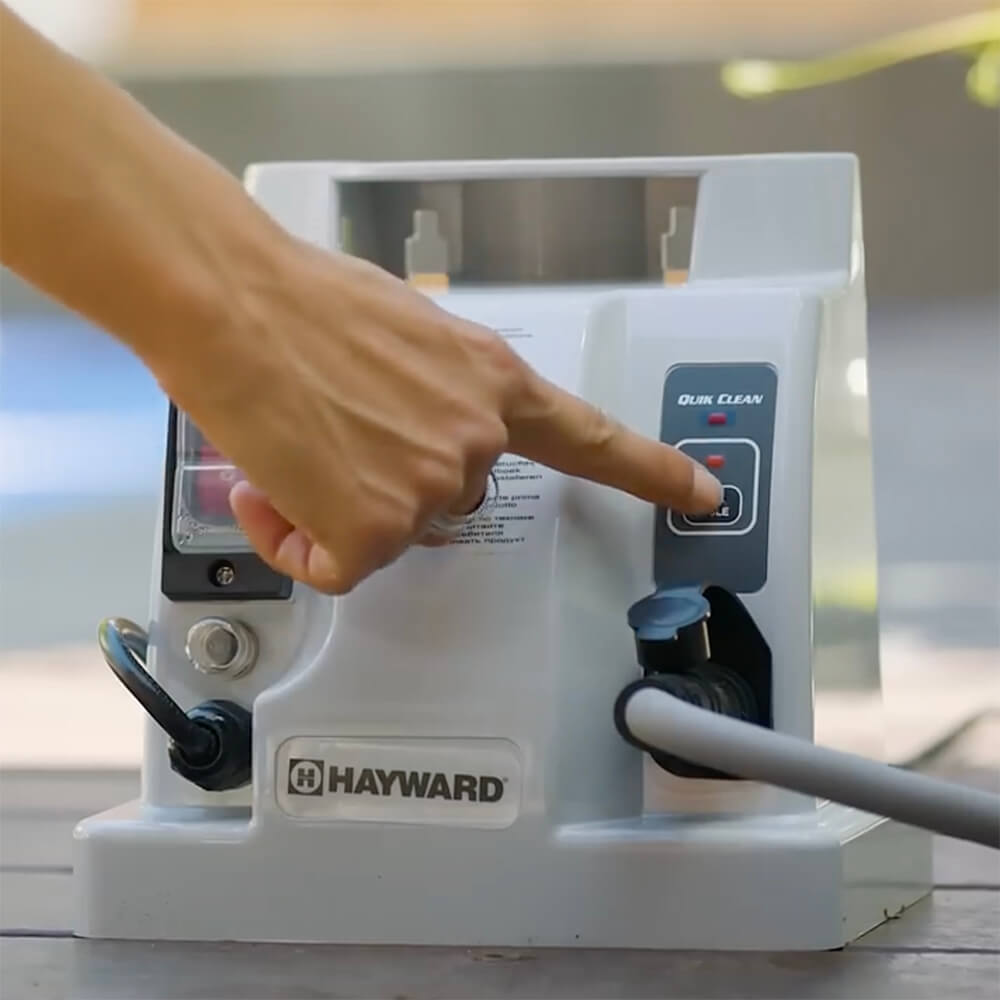

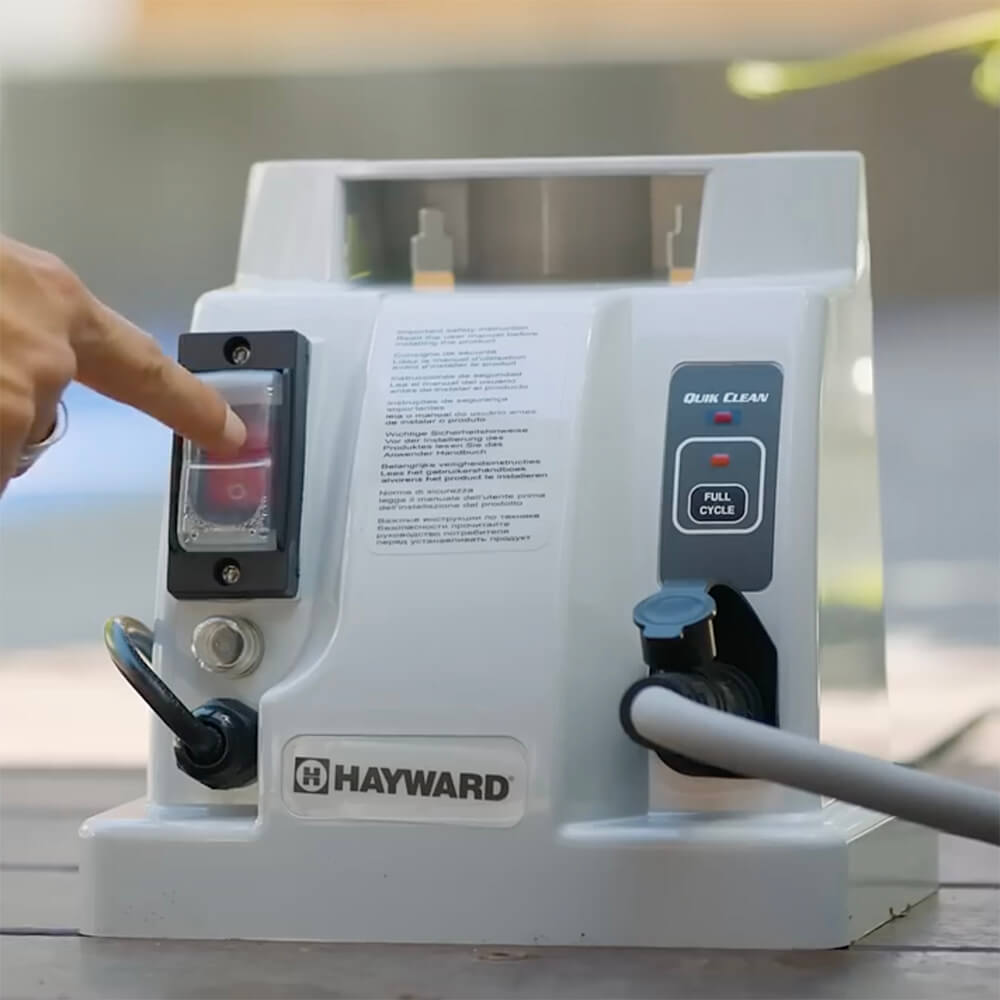

- Easy to Use:Â Plug & Play and fully automated.
- Saves on Electricity: As it uses its own power source and filtration mechanism it does not use, drain nor clog your pool filtration system which in combination with its intelligent programs and energy-efficient design drastically minimizes energy use.
- Improved Water Clarity: Without a suction cleaner attached to your pool skimmer, it is left free to skim the top of your pool. This increases the pool’s turnover rate, improving water clarity

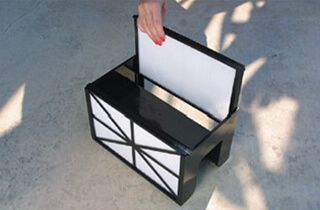

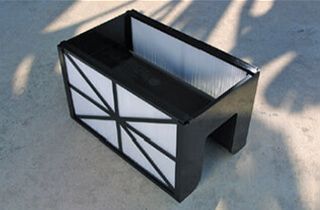

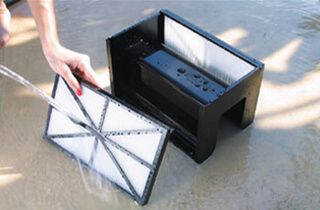

- Suitable for Fine Dust: Unlike most other robots in the market, the TigerShark features 5-micron filtration technology allowing it to tackle pools with fine dust issues.
Features:
- QuickClean Cycle: Delivers a rapid 90-minute cleaning cycle, ideal for a quick yet thorough clean.
- Adaptive Seek Control Logic (ASCL): Smart self-programming technology calculates the optimal cleaning pattern, adjusts to pool size, and powers down automatically at the end of the cleaning cycle for maximum energy efficiency.
- Teflon-Reinforced Cord: Built with Teflon reinforcement for exceptional durability, ensuring a long-lasting and tangle-free experience.
- Handle-Reverse Functionality: Enables superior scrubbing action and prevents cord tangling for uninterrupted cleaning.
- Powerful Onboard Pump with Venturi System: Provides powerful suction to collect dirt and debris as it cleans the pool floor, walls, inclines, and even steps.
- Hydro-Dynamic Head Design: A sleek, performance-engineered design allows it to clean independently of the pool’s filter system.
- Energy-Efficient Motor: Engineered to deliver high vacuum strength with minimal energy consumption.
- Heavy-Duty Drive Tracks: Equipped with mechanized treads that enable effortless wall-climbing up to the waterline for complete pool coverage.
- Durable Brush Roller: Built with a robust brush roller that scrubs dirt from the pool floor, walls, and waterline, providing a thorough clean (not for tiled pools).
- AquaVac Insulated Floating Cord: Incorporates Teflon reinforcement for additional durability, safety, and tangle-free operation.
Optional Accessory:
Transportation Caddy
Premium caddy available for easy transport and convenient storage of the TigerShark Cleaner
Spring Clean-Up Filter Element
Designed for efficient collection of larger debris during heavy clean-ups, ensuring the TigerShark maintains peak performance.
Technical Specifications:
|
TigerShark XL QC |
| Types of inground pools |
| Surfaces |
Concrete, pebblecrete, quartzon, fiberglass, vinyl |
| Shapes |
Rectangular, oval, free shape
Flat, gentle slope, composite slope, diamond shape |
Size |
For in-ground pools
Up to 12 x 6m |
| Performance |
| Cleaning areas |
Floor, walls, steps and waterline |
| Cleaning cycles |
1 - 90 min (QC)
2 - 4 h
|
| Filtering level |
1 - 2 ultra-fine 5 micron porosity filter elements
2 - 2 Spring Clean-Up large debris filter element (optional)
|
| Filter capacity |
5L |
| Number of cycles |
2 from the control unit panel |
| Active Brushing |
✓ |
| Brush Position |
Front and Rear |
| Ease of Use |
| Plug & Play |
✓ |
| Caddy |
Optional |
| Fast Cleaning Program |
✓ |
| Remote control |
✕ |
| Technical Specifications |
| Power Supply |
220V ; 50/60Hz |
| Cleaner voltage |
24 V DC |
| Rated Output Current |
4A |
| Cable length |
16.76 |
| Suction capacity |
17 m3/h |
| Water flow |
284 L/m |
| Cleaning speed |
18 m/min |
| Area cleaned |
5 m2/min |
Warranty:
Important Note for Tiled Pool Owners
Frequently Asked Questions
Why is my TigerShark not climbing the pool walls properly?
Poor climbing performance is usually caused by a clogged or heavy filter, worn brushes, or algae on the pool walls. Ensure the filter cartridges are cleaned, brush rollers are in good condition, and the pool walls are brushed and chemically balanced. Fine dust, D.E. or sand leaking from the main filter can also limit wall traction. If you are unsure whether this cleaner is the best match for your pool shape or surface,
click here for help choosing the best suitable pool cleaner.
Why does the TigerShark climb too high and then fall off the wall?
This can occur when traction is higher than required, causing the cleaner to reach the waterline and take in air. Installing the optional thrust restrictor plate, adjusting the handle angle, and checking the bottom lid gasket can correct the issue. Verify water chemistry and ensure the cleaner’s filter is clean.
What should I do if the cleaner stops after only a few minutes of operation?
Confirm the cleaner is fully submerged before starting. Check for obstructions such as raised drains, toys, or in-floor cleaning heads. Inspect the impeller for debris, verify the pump motor rotates freely, and ensure the power supply voltage is stable.
Why is debris falling out of the cleaner when I remove it from the pool?
This usually indicates filter overload or large debris blocking the intake. Clean the filter more frequently and remove large leaves or debris from the pool before use. Make sure the drain flaps on the bottom lid are correctly seated.
What does it mean if the impeller is spinning but the cleaner isn’t moving?
The drive motor or drive pin may be damaged, or the tracks may be obstructed. Check for debris wrapped around the drive tracks, inspect roller bearings, and confirm the drive belt is intact. If the drive motor has failed, the motor unit may need replacement.
Why is the TigerShark not picking up fine dust or heavy debris?
A dirty filter will reduce suction and limit its ability to collect fine material. Remove and clean the cartridges thoroughly. For heavy debris, clip the high-velocity inlet to the bottom lid. If the pool has persistent fine dust, ensure you are using the 5-micron filter elements and clean them more frequently. For deep cleaning of dirty or oily cartridges, you can use a dedicated filter cleaning spray such as the
Madimack Robotic Filter Cleaner.
Why does the cleaner get stuck on raised drains, tiles, or steps?
The TigerShark generally handles obstacles well, but excessive suction or debris build-up can interfere with movement. Clean the filter, inspect the drive tracks, and consider installing the high-velocity inlet to reduce the chance of snagging on raised fittings.
How often should I clean or replace the filter cartridges?
Clean the filter after every use. In dusty environments or during spring clean-up, more frequent cleaning may be required. Replace filter elements whenever the pleats become damaged or the material no longer rinses clean.
What causes cord twisting, and how do I fix it?
Cord twisting occurs when the cleaner operates repeatedly with the handle positioned the same way. Rotate the handle to the opposite diagonal position after each use. Periodically lay the cord straight in the sun to help remove built-up twists.
Why is the cleaner blowing air bubbles at the waterline?
This indicates the unit is climbing too high and taking in air. Check the filter cleanliness, confirm the handle is set on a diagonal angle, and install the thrust restrictor plate if needed. Ensure the bottom lid gasket is intact and water chemistry is balanced.
What should I check if the TigerShark won’t start or loses power?
Ensure the power supply is connected to a functioning GFCI outlet and delivering the correct voltage. Inspect the flotation cord for damage, confirm the cleaner is fully submerged before switching on, and check for debris lodged in the impeller or drive system. If the cleaner still will not run, please contact our team for further assistance:
Contact Us.
How do I prevent algae or biofilm from affecting cleaning performance?
Maintain correct chlorine and pH levels, brush the walls regularly, and clean the filter after every cycle. Algae on the walls reduces traction and can prevent the cleaner from climbing effectively.
Is it normal for the TigerShark to pause, reverse, or stop mid-cycle?
Yes. The TigerShark uses Adaptive Seek Control Logic to map the pool and adjust its pattern. Pausing, reversing, and short stops are part of its normal operation and help ensure full coverage.
How do I maintain the drive tracks and brushes for best performance?
Inspect the tracks and brushes regularly and remove any debris caught around them. Replace worn brushes to maintain traction on walls. Check bearings to ensure they rotate freely.
What should I do if the impeller becomes clogged or damaged?
Turn off the power supply, remove the impeller cover, and clear any debris such as hair or leaves. If the impeller blades are damaged or broken, replace the impeller to restore normal suction performance. Genuine replacement parts for the TigerShark are available here:
Hayward TigerShark spare parts.
Can I leave the TigerShark in the pool between cleaning cycles?
It should be removed after each cycle. Storing the cleaner in the pool can accelerate wear on the tracks, brushes, and motor seals. Rinse the unit with fresh water and store it in a shaded area.
